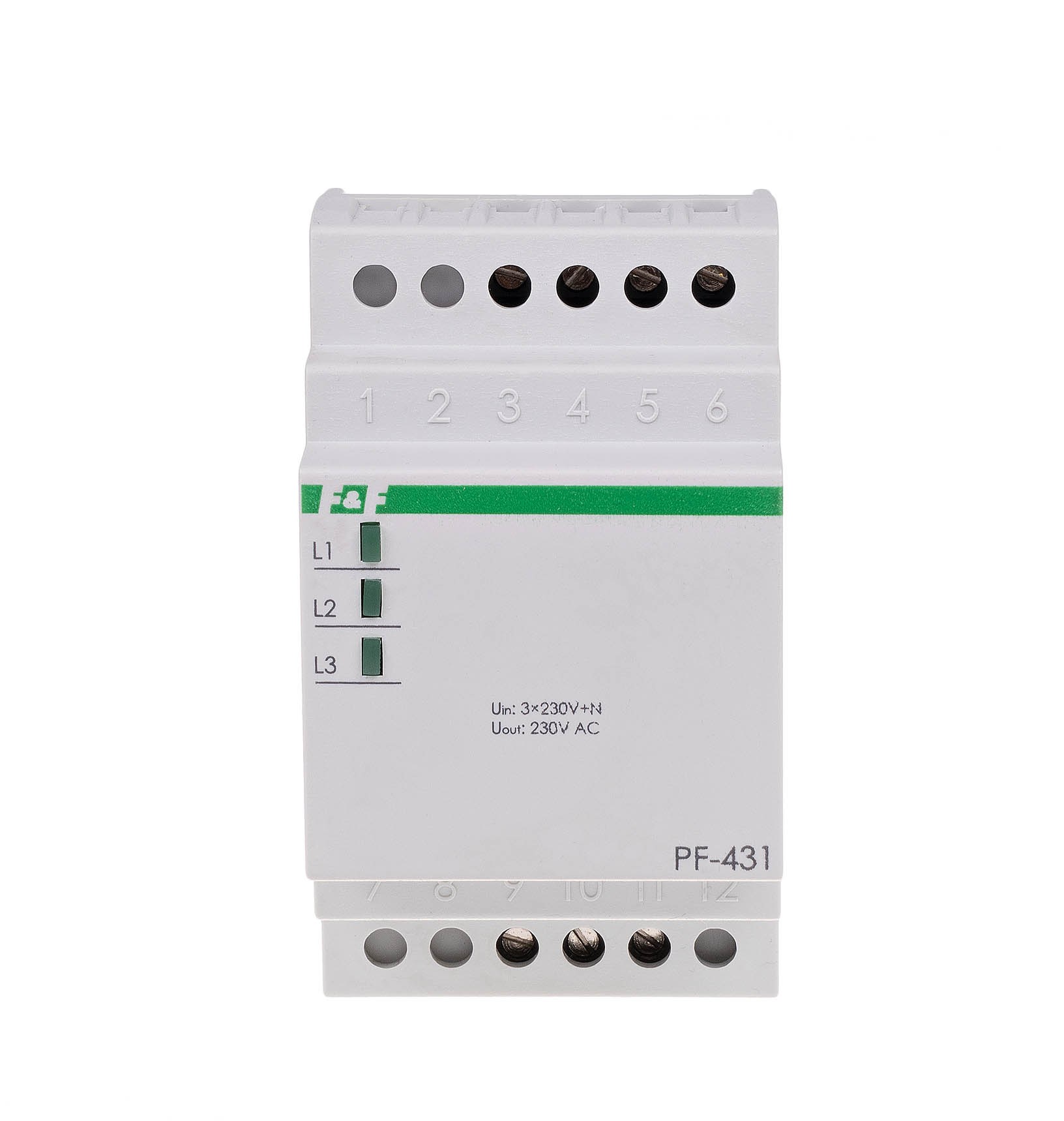

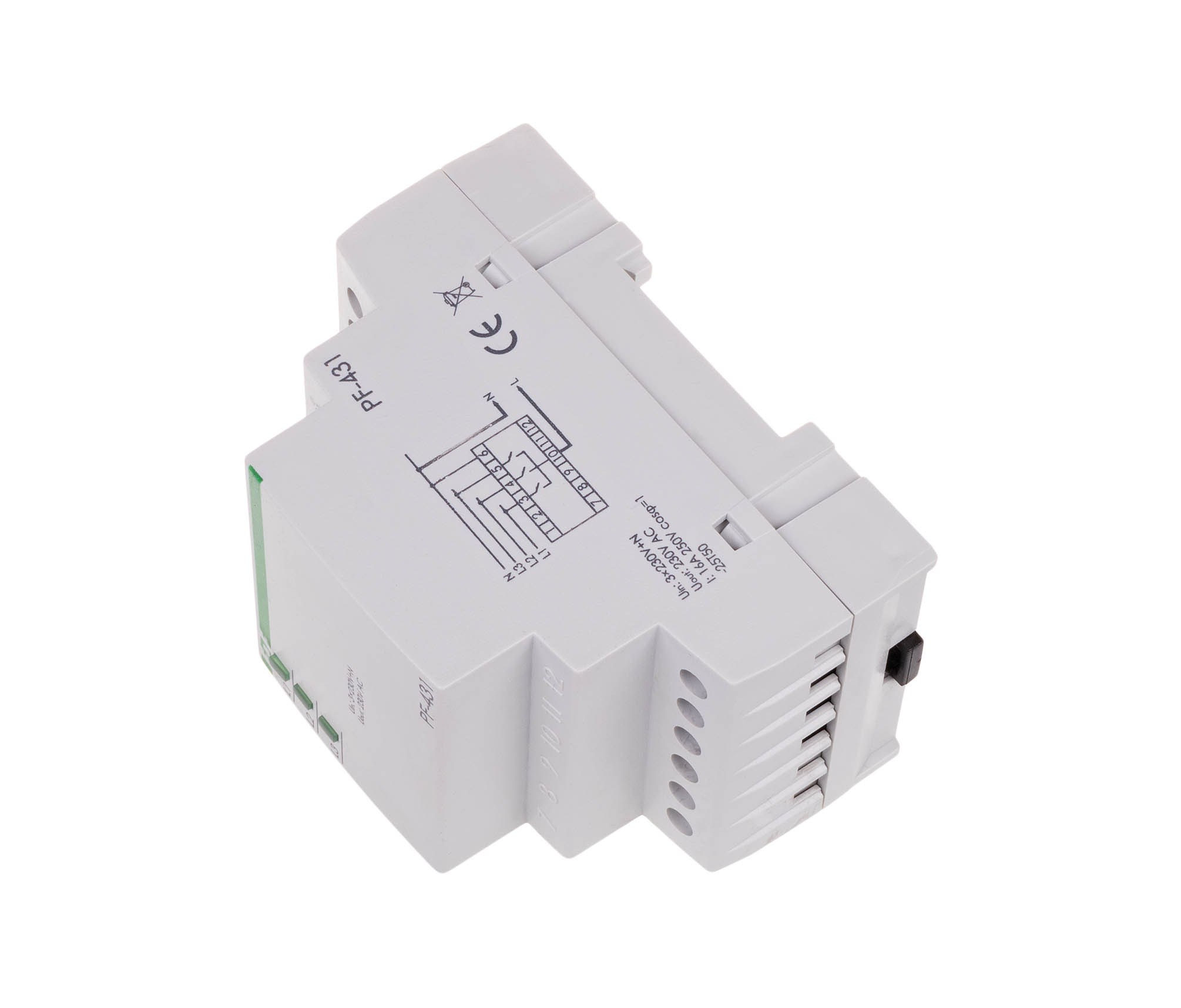

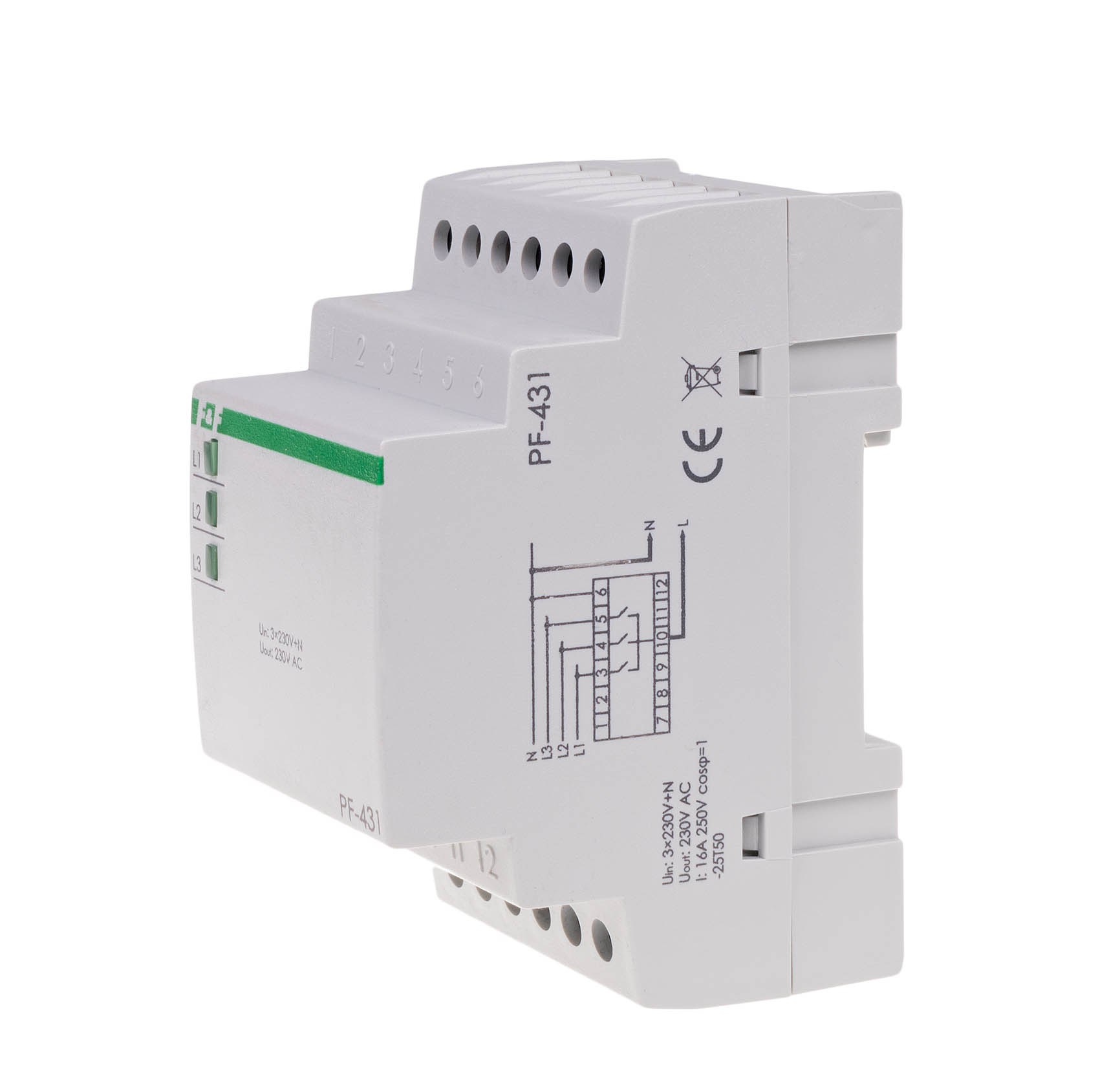

Automatyczny przełącznik faz PF-431
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | PF |
| Symbol | PF-431 |
| GTIN(EAN) | 5908312594024 |
| Price unit | piece |
| Catalog price | 373,92 zł (304,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 3×230 V+N Współpraca z agregatami prądotwórczymi NIE Maksymalny prąd obciążenia AC-1 16 A Element wykonawczy przekaźnik Histereza 5 V Próg zadziałania (L1, L2) 195 V Próg zadziałania (L3) 190 V Błąd pomiaru napięcia ±1% Czas przełączania 0,3 s Sygnalizacja napięć wejściowych 3 x LED Przyłącze zaciski śrubowe 4,0 mm² Moment dokręcający 0,5 Nm Pobór mocy ≤ 1 W Temperatura pracy -25 ÷ 50 °C Wymiary 3 moduły (52,5 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 151 g |
| ETIM class: | Phase monitoring relay |
| Type of electric connection: | Screw connection |
| With detachable clamps: | no |
| Phase sequence monitoring: | no |
| Phase failure detection: | yes |
| Function under voltage detection: | yes |
| Function over voltage detection: | no |
| Phase imbalance monitoring: | no |
| Voltage measuring range: | 80 - 300 V |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 3 |
| Number of contacts as change-over contact: | 0 |
| Width: | 52.5 mm |
| Height: | 75 mm |
| Depth: | 110 mm |
