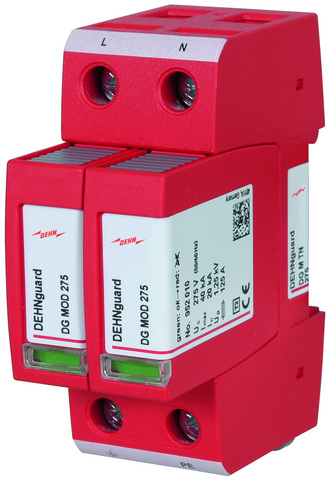

Ogranicznik przepięć DEHNguard M TN 275 DG M TN 275
| Information | Value |
|---|---|
| Supplier | DEHN Polska Sp. z o.o. |
| Symbol | 952200 |
| GTIN(EAN) | 4013364108394 |
| Price unit | piece |
| Catalog price | 480,06 zł (390,29 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 244,6 g |
| Country of origin | Niemcy |
| ETIM class: | Surge protection device for power supply systems |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| With remote signalling contact: | no |
| Number of conductors (without earthing): | 2 |
| Construction size: | 2 modular spacing |
| Voltage protection level: | 1,5 kV |
| Max. continuous voltage AC: | 275 V |
| Nominal discharge surge current (8/20): | 20 kA |
| Nominal voltage AC: | 230 V |
| Category type 2: | yes |
| Signalling at the device: | Optical |
| Degree of protection (IP): | IP20 |
| Voltage protection level N-PE: | 1,5 kV |
| Integrated backup fuse: | no |
| Max. conductor cross section solid (solid, stranded): | 35 mm² |
| Max. conductor cross section flexible (fine-strand): | 25 mm² |
| System configuration DC: | no |
| System configuration IT: | no |
| System configuration TN: | yes |
| System configuration TN-C: | no |
| System configuration TN-S: | no |
| System configuration TT: | no |
| System configuration other: | no |
| System configuration TN-C-S: | no |
| Max. discharge surge current (8/20): | 40 kA |
| Short-circuit breaking capacity (Isccr): | 50 kA |
| Max. overcurrent protection device, parallel connection (fuse): | 125 A |
| Max. overcurrent protection device, series connection (fuse): | 100 A |
| Integrated short-circuit protection: | no |
| Leakage-current free: | no |
