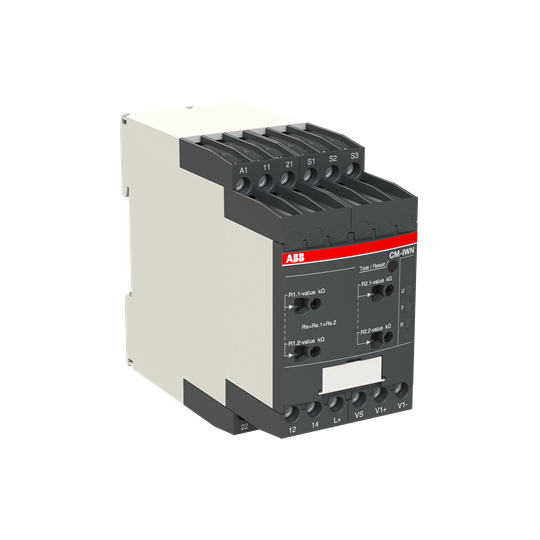

CM-IWN.1P przekaźnik monitorujący
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SVR760660R0200 |
GTIN(EAN) | 4016779852661 |
Price unit | piece |
Catalog price | 5 187,29 zł (4 217,31 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 217 g |
ETIM class: | Insulation and earth fault monitoring relay |
Type of electric connection: | Spring clamp connection |
With detachable clamps: | no |
Function: | For mixed system |
Line capacity: | 20 µF |
Response value impedance 1: | 1 - 200 kΩ |
Indication of insulation value: | no |
Error registration possible: | yes |
Number of contacts as change-over contact: | 2 |
Width: | 45 mm |
Height: | 85.6 mm |
Depth: | 104.8 mm |
Rated control supply voltage AC 50 Hz: | 24 - 240 V |
Rated control supply voltage AC 60 Hz: | 24 - 240 V |
Rated control supply voltage DC: | 24 - 240 V |
Voltage type for actuating: | AC/DC |
Rated voltage: | 0 - 0 V |
Rated frequency: | 15 - 400 Hz |
Number of contacts as normally closed contact: | 0 |
Number of contacts as normally open contact: | 0 |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-04-05 10:18:25 |
Files to download: | |
External links: |
