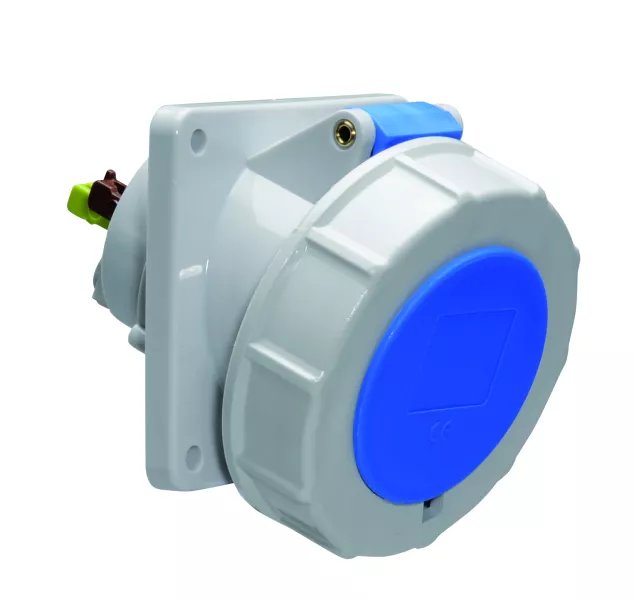

Gniazdo tablicowe skośne Quick-Connect 32A 3p 230V IP67
Information | Value |
---|---|
Supplier | BALS POLSKA Elektrotechnika Sp. z o.o. |
Symbol | 12819 |
GTIN(EAN) | 4024941128193 |
Price unit | piece |
Catalog price | 124,57 zł (101,28 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Gniazdo w technologii bezśrubowej Quick-Connect, nachylenie 20stop., kołnierz 85x85mm
Additional features:
Information | Value |
---|---|
ETIM class: | Panel-mounted CEE socket outlet (IEC 60309) |
Number of poles: | 3 |
IEC-amperage: | 32 A |
Clock hour position: | 6 h |
Drill hole distance vertical: | 70 mm |
Drill hole distance horizontal: | 70 mm |
Flange size vertical: | 85 mm |
Flange size horizontal: | 85 mm |
Material: | Plastic |
Connection system: | Screw less terminal |
Insert direction: | Angled |
Degree of protection (IP): | IP67 |
Military model: | yes |
Identification colour: | Blue |
Voltage according to EN 60309-2: | 230 V (50+60 Hz) blue |
