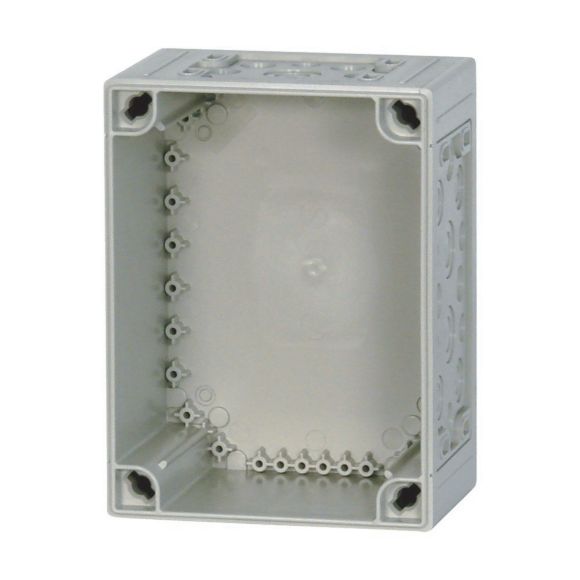

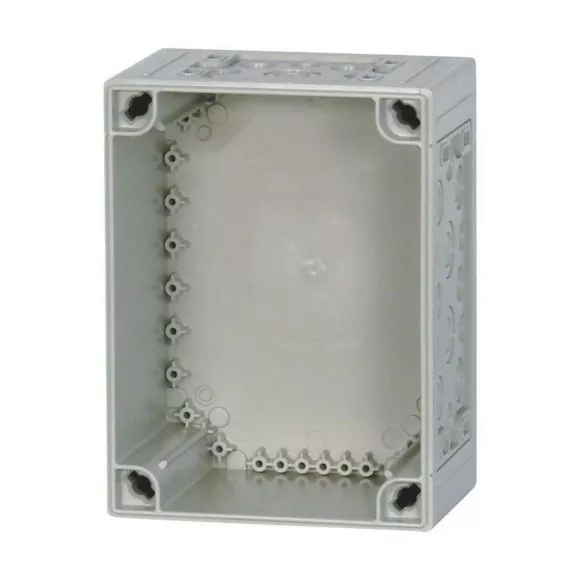

U-CI23E Część dolna do obudowy CI23E
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 038793 |
GTIN(EAN) | 4015080387930 |
Price unit | piece |
Catalog price | 455,35 zł (370,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Część dolna pojedynczej obudowy E, charakterystyka materiału Poliwęglan (PC), odporność na porażenia, metryczne wytłoczenia we wszystkich ścianach bocznych, wyłamywana, wprowadzenie przewodów na górze i na dole=1xM32/20 i 6xM20 i 2xM16, po boku po=2xM32/20 i 4xM25/16 i 4xM20 i 4xM16, RAL 7032, bezpośredni montaż na ścianie bez dodatkowych akcesoriów
Additional features:
Information | Value |
---|---|
Net weight: | 876 g |
ETIM class: | Empty cabinet |
Mounting method: | Surface mounted |
Type of covering: | Optional |
Cover model: | Closed |
Type of door: | None |
Nominal current (In): | 1600 A |
Height: | 250 mm |
Width: | 180 mm |
Depth: | 100 mm |
Built-in depth: | 150 mm |
Inner depth: | 100 mm |
Material plate thickness cabinet: | 6 mm |
Material plate thickness door/cover: | 6 mm |
Colour: | Grey |
RAL-number: | 7035 |
Number of modules: | 1 |
Number of rows: | 0 |
Width in number of modular spacings: | 9 |
Number of openings for flange plates: | 4 |
Extension possible: | yes |
Number of conduit inlets: | 30 |
Housing material: | Plastic |
Surface protection: | Other |
Suitable for outdoor use: | yes |
Suitable for lightning protection: | yes |
Degree of protection (IP): | IP65 |
Degree of protection (NEMA): | Other |
Protection class: | II |
Impact strength: | IK10 |
Circuit integrity: | Other |
Cover with overpressure release: | yes |
