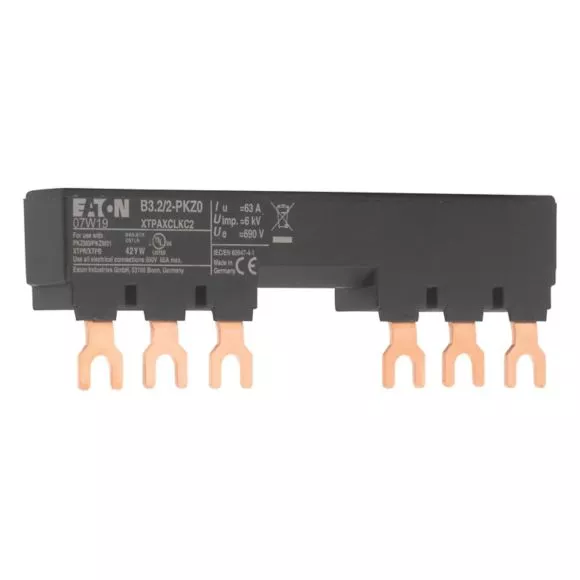

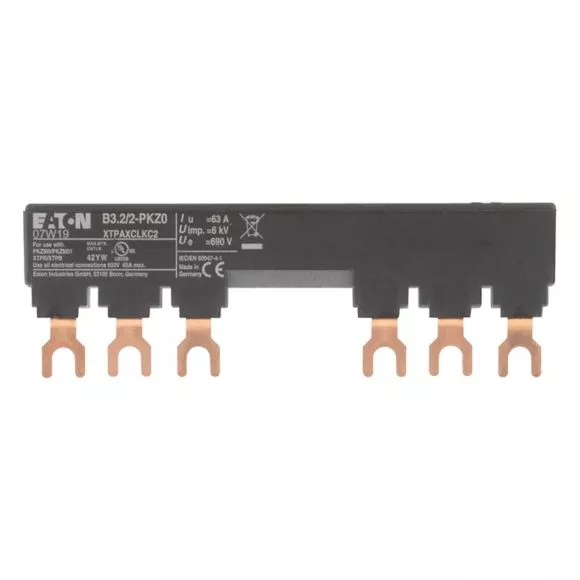

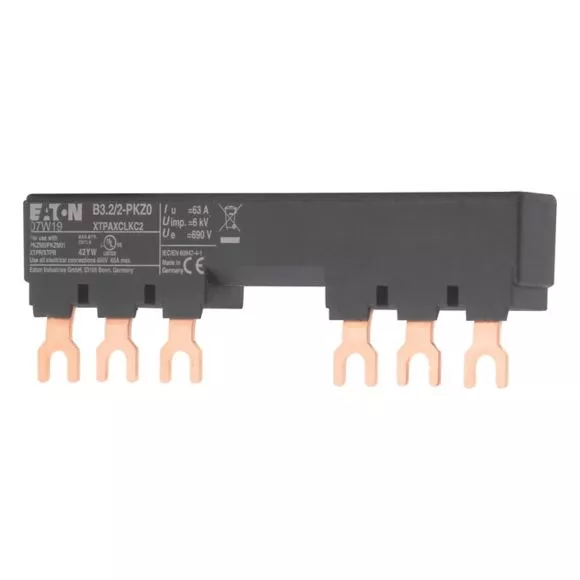

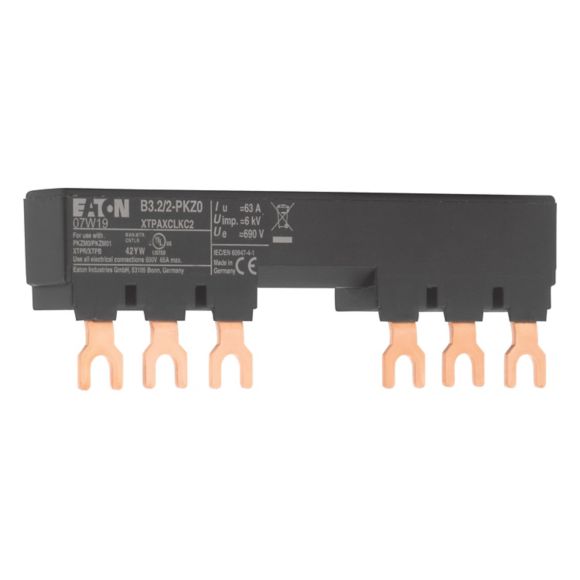

B3.2/2-PKZ0 bloki mostków trójfazowych
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 063963 |
| GTIN(EAN) | 4015080639633 |
| Price unit | piece |
| Catalog price | 110,26 zł (89,64 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok mostków trójfazowych 3 biegunowy do zasilania 2 PKZM0-... z przymocowanymi po prawej stronie łącznikami pomocniczymi lub sygnalizatorami wyzwolenia lub przymocowanym po lewej stronie wyzwalaczem napięcia, długość 108mm, z zabezpieczeniem przed dotykaniem, Ue = 690 V, Iu = 63 A
Additional features:
| Information | Value |
|---|---|
| Net weight: | 39 g |
| ETIM class: | Phase busbar |
| Number of phases: | 3 |
| Number of poles: | 3 |
| Suitable for number of devices: | 2 |
| Module width: | 63 mm |
| Cross section: | 0 mm² |
| Length: | 109 mm |
| Width in number of modular spacings: | 6 |
| Rated permanent current Iu: | 63 A |
| Type of electric connection: | Fork |
| Insulated: | yes |
| Rated surge voltage: | 6 kV |
| Conditioned rated short-circuit current Iq: | 0 kA |
| Max. rated operation voltage Ue: | 690 V |
| Rated short-time withstand current lcw: | 0 kA |
| Suitable for devices with N-conductor: | no |
| Suitable for devices with auxiliary switch: | no |
| Colour: | Black |
