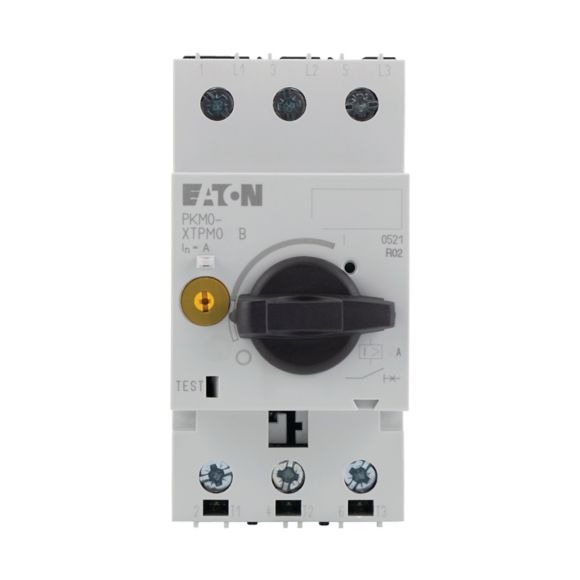

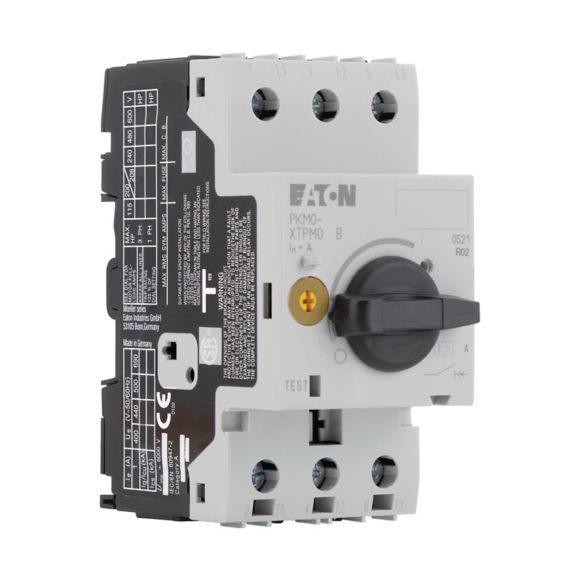

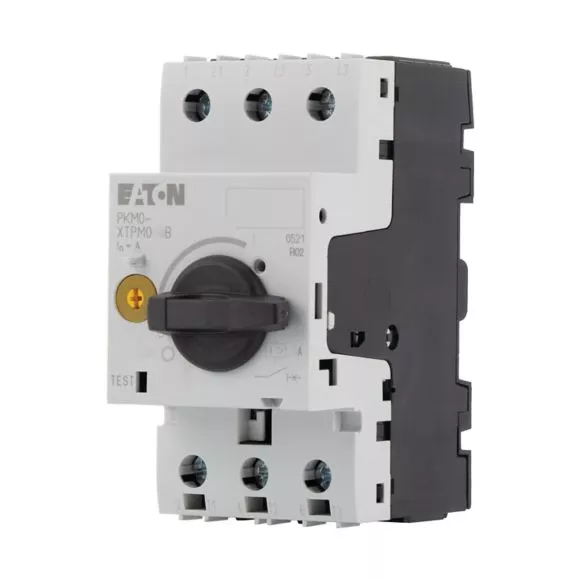

PKM0-10 Wyłącznik silnikowy do ukł rozr I=10A
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 072729 |
| GTIN(EAN) | 4015080727293 |
| Price unit | piece |
| Catalog price | 446,86 zł (363,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wyłącznik silnikowy zgodny z IEC/EN60947, 3-biegunowe wielkość konstrukcyjna PKM0, z wyzwalaczem zwarciowym bez opóźnienia, mocowanie na śruby i zaciski, Z zaciskami ze śrubą, wymiary montażowe zatyczki 45mm, znamionowe napięcie pracy Ue 690V, stopień ochrony IP20, zabezpieczenie przed dotknięciem zgodnie z VDE 0106 cz. 100, dostępne akcesoria: łącznik pomocniczy, wyzwalacz napięcia, napęd sterujący, płyta wczepiana
Additional features:
| Information | Value |
|---|---|
| Net weight: | 288 g |
| ETIM class: | Motor protection circuit-breaker |
| Overload release current setting: | 0 - 0 A |
| Adjustment range undelayed short-circuit release: | 155 - 155 A |
| With thermal overload protection: | no |
| Phase failure sensitive: | no |
| Switch off technique: | Magnetic |
| Rated operating voltage: | 690 - 690 V |
| Rated permanent current Iu: | 10 A |
| Rated operation power at AC-3, 230 V: | 2.2 kW |
| Rated operation power at AC-3, 400 V: | 4 kW |
| Type of electrical connection of main circuit: | Screw connection |
| Type of control element: | Turn button |
| Device construction: | Built-in device fixed built-in technique |
| With integrated auxiliary switch: | no |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 150 kA |
| Degree of protection (IP): | IP20 |
| Height: | 93 mm |
| Width: | 45 mm |
| Depth: | 76 mm |
