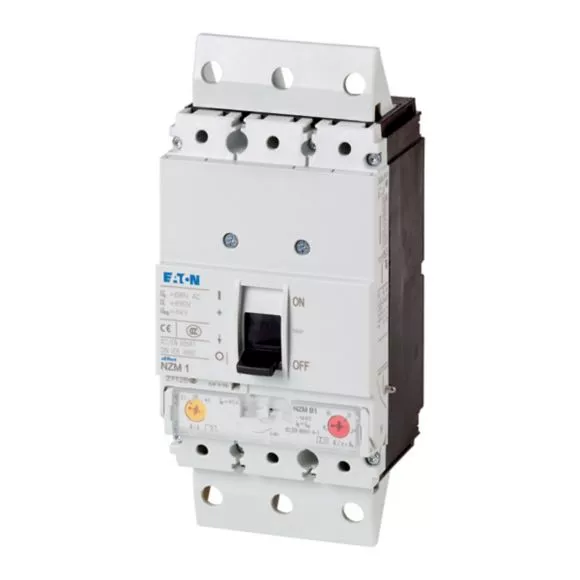

NZMB1-A63-SVE Wyłącznik mocy 3-bieg. 63A BG1 wersja w
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 112705 |
| GTIN(EAN) | 4015081122554 |
| Price unit | piece |
| Catalog price | 2 596,17 zł (2 110,71 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Vermogensautomaat NZM1, 3-polig, Schakelvermogen 400/415 V 50 Hz( Icu ): 25 kA, Nominale bedrijfsstroom = nominale ononderbroken stroom Nominale bedrijfsstroom = nominale ononderbroken stroom (ln = lu): 63 A, Installatietype: Plug-in-units, Raamklem, Standaard/goedkeuring: IEC, Beschermingsfunctie: Installatie- en kabelbeveiliging
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,199 kg |
| Country of origin | Rumunia |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Rated permanent current Iu: | 63 A |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Overload release current setting: | 50 - 63 A |
| Number of auxiliary contacts as change-over contact: | 0 |
| Rated voltage: | 440 - 440 V |
| Power loss: | 14,2 W |
| Degree of protection (IP): | IP20 |
| Position of connection for main current circuit: | Front side |
| Motor drive integrated: | no |
| Type of electrical connection of main circuit: | Frame clamp |
| Type of control element: | Rocker lever |
| With switched-off indicator: | no |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 25 kA |
| Adjustment range short-term delayed short-circuit release: | 0 - 0 A |
| Adjustment range undelayed short-circuit release: | 380 - 630 A |
| Suitable for DIN rail (top hat rail) mounting: | no |
| Integrated earth fault protection: | no |
| Motor drive optional: | no |
| Device construction: | Built-in device plug-in technique |
| DIN rail (top hat rail) mounting optional: | yes |
| Complete device with protection unit: | yes |
