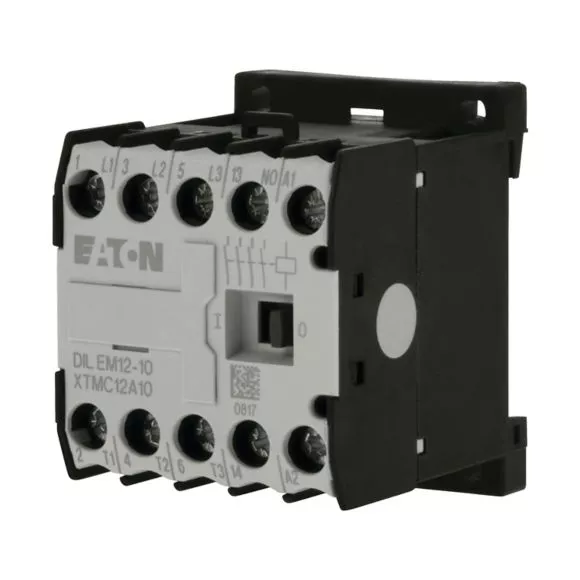

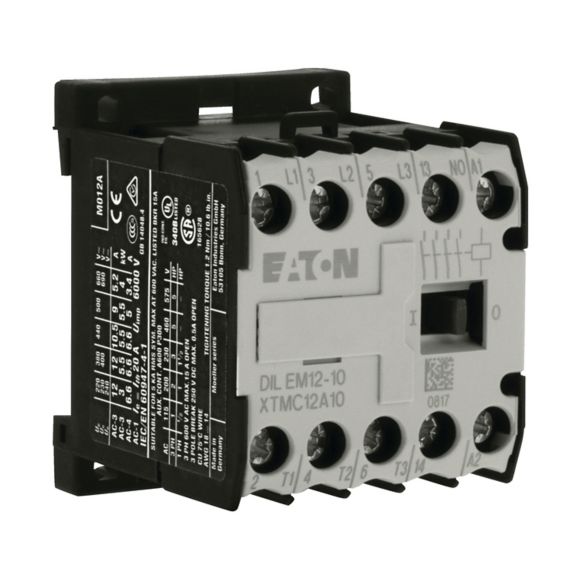

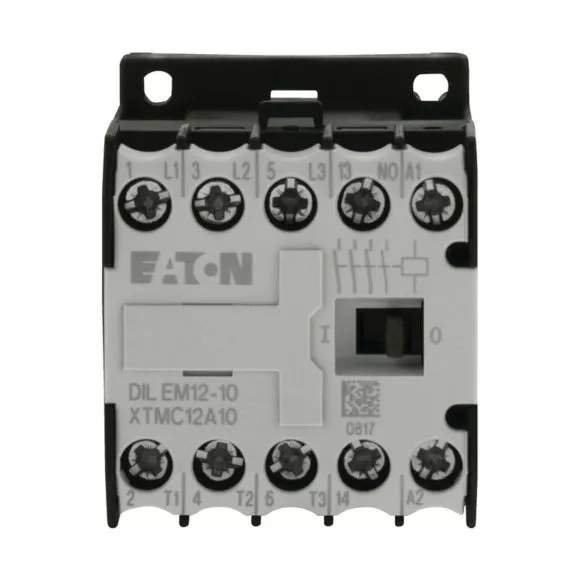

DILEM12-10(110V50HZ,120V60HZ) Stycznik mocy miniaturowy 12 A/5,5 kW A
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 127072 |
| GTIN(EAN) | 4015081246076 |
| Price unit | piece |
| Catalog price | 291,51 zł (237,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Leistungsschütz, Anwendung: Leistungsschütze für Motoren, Kleinschütze für Motoren und ohmsche Lasten, Leistungsschütze DILEM, Gebrauchskategorie: AC-1: Nicht oder leicht induktive Lasten, Widerstandsöfen, NAC-3: Käfigläufermotoren: anlassen, während Betrieb ausschalten, AC-4: Käfigläufermotoren: anlassen, Einstecken, reversieren, Tippen, Anschlusstechnik: Schraubklemmen, Beschreibung: Mit Hilfskontakt, Anzahl der Pole: 3-polig, Bemessungsbetriebsstrom AC-3, 380 V, 400 V: Ie= 12 A, Bemessungsbetriebsstrom AC-1 konventioneller thermischer Strom, 3-polig, 50 - 60 Hz Offen bei 40 °C: Ith =Ie= 22 A, gekapselt: Ith = 16 A
Additional features:
| Information | Value |
|---|---|
| Net weight: | 170 g |
| Country of origin | Niemcy |
| ETIM class: | Power contactor, AC switching |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-1, 400 V: | 22 A |
| Rated operation current Ie at AC-3, 400 V: | 12 A |
| Rated operation power at AC-3, 400 V: | 5,5 kW |
| Rated operation current Ie at AC-4, 400 V: | 6,6 A |
| Rated operation power at AC-4, 400 V: | 3 kW |
| Rated operation power NEMA: | 3,7 kW |
| Modular version: | no |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 3 |
| Width: | 45 mm |
| Height: | 58 mm |
| Depth: | 52 mm |
