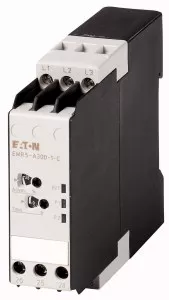

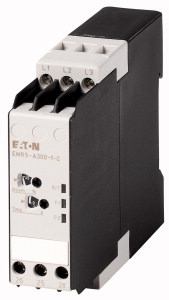

EMR5-A300-1-C Przekaźnik

Information	Value
Supplier	EATON Electric Sp. z o.o. (MOELLER)
Symbol	134230
GTIN(EAN)	4015081311002
Price unit	piece
Product withdrawn	This product is not produced any more. It might still be available if some wholesaler has it in it's stock

The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.

Description:

Czujnik asymetrii EMR5-A… zgodnie z IEC/EN 60255-6, szerokość 22.5mm, 160-300VAC, kolejność faz, brak fazy, asymetria (ustawiane wartości progowe 2-25%), opóźnienie zadziałania: brak lub ustawiane w zakresie 0.1-30s

Additional features:

Information	Value
ETIM class:	Phase monitoring relay
Type of electric connection:	Screw connection
With detachable clamps:	no
Rated control supply voltage AC 50 Hz:	160 - 300 V
Rated control supply voltage AC 60 Hz:	0 - 300 V
Rated control supply voltage DC:	0 - 0 V
Voltage type for actuating:	AC
Phase sequence monitoring:	yes
Phase failure detection:	yes
Function under voltage detection:	no
Function over voltage detection:	no
Phase imbalance monitoring:	yes
Voltage measuring range:	160 - 300 V
Min. adjustable delay-on energization time:	0.1 s
Max. permitted delay-on energization time:	30 s
Min. adjustable off-delay time:	0.1 s
Max. permitted off-delay time:	30 s
Number of contacts as normally closed contact:	0
Number of contacts as normally open contact:	0
Number of contacts as change-over contact:	0
Width:	22.5 mm
Height:	78 mm
Depth:	100 mm
