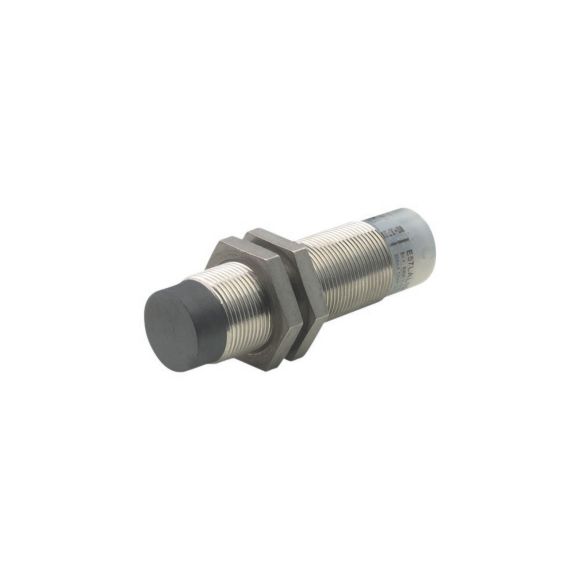

E57SBL30A4EA Czujnik indukcyjny, zasilanie AC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 136174 |
| GTIN(EAN) | 4015081329670 |
| Price unit | piece |
| Catalog price | 1 020,90 zł (830,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Czujnik zbliżeniowy, Czujniki indukcyjne, Zacisk śrubowy: E57 Premium+ series Short, Połączenie: Dwużyłowe, Konstrukcja (zewnętrzne wymiary): M30 x 1,5 mm, Znamionowe napięcie robocze: Ue = 40 – 250 V AC, Znamionowa odległość przełączania: Sn= 15 mm, Sposób montażu: Niezlicowany, Połączenie wtykowe M12 x 1, Zestyki R = rozwierne: 1 R, Materiał: Stal nierdzewna, Stopień ochrony: IP67, Normy: IEC/EN 60947-5-2
Additional features:
| Information | Value |
|---|---|
| Net weight: | 250 g |
| Country of origin | Meksyk |
| ETIM class: | Inductive proximity switch |
| Voltage type: | AC |
| Cascadable: | no |
| Housing material: | Metal |
| Suitable for safety functions: | no |
| Coating housing: | Other |
| Switching frequency: | 20 Hz |
| Switching distance: | 15 mm |
| Number of semiconductor outputs with signalling function: | 1 |
| Number of contact energized outputs with signalling function: | 0 |
| Number of protected semiconductor outputs: | 0 |
| Number of protected contact energized outputs: | 0 |
| Type of interface for safety communication: | None |
| Type of electric connection: | Connector M12 |
| Type of switching output: | 2-wire |
| Type of switch function: | Breaker contact |
| Rated control supply voltage AC 50 Hz: | 20 - 250 V |
| Rated control supply voltage AC 60 Hz: | 20 - 250 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Construction type housing: | Cylinder, screw-thread |
| Max. output current at protected output: | 0 mA |
| Mechanical mounting condition for sensor: | Not flat |
| With monitoring function downstream switching devices: | no |
| Supply voltage: | 20 - 250 V |
| Type of actuation: | Metallic Target |
| Type of interface: | None |
| Width sensor: | 0 mm |
| Compression-resistant: | no |
| Diameter sensor: | 30 mm |
| Height of sensor: | 0 mm |
| Length of sensor: | 74 mm |
| Performance level according to EN ISO 13849-1: | None |
| SIL according to IEC 61508: | None |
| Degree of protection (NEMA): | 4X, 6, 13 |
