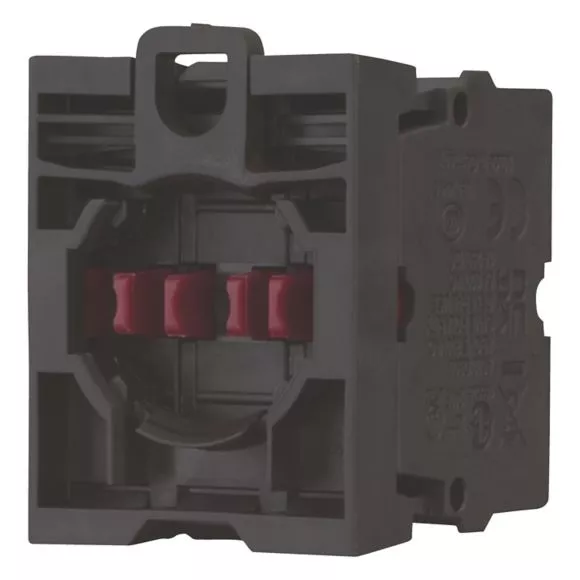

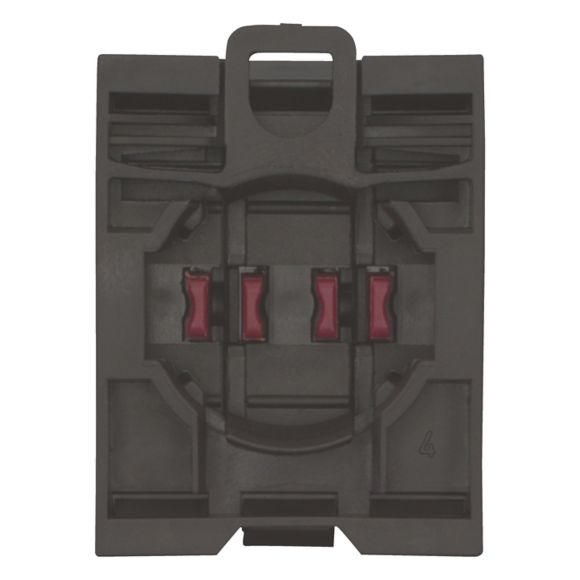

M22-AFK03SMC10 Płytki element stykowy 3R z samokontrolą 1Z, moc. przód
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 180794 |
| GTIN(EAN) | 4015081759637 |
| Price unit | piece |
| Catalog price | 255,84 zł (208,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Contactelement, aansluittechniek: Cage Clamp, bevestiging: Frontbevestiging, beschrijving: Combinatie van contactelement en zelfbewakend contactelement M22-K01SMC10, M22-A bevestigingsadapter, en M22-XSMC meldcontactbediening, Het no contact in het zelfbewakend contactelement wordt bediend wanneer deze op de M22-XSMC gemonteerd is., Cage Clamp is een geregistreerde trademark van Wago Kontakttechnik GmbH/Minden, Duitsland, contacten nc = normaal gesloten: 3 nc, opmerkingen contacten = veiligheidsfunctie, door dwangmatig openen volgens IEC/EN 60947-5-1, weg van de bediening en bedieningskracht conform DIN EN 60947-5-1, K.5.4.1: 5,5 mm, maximale veerweg: 5,8 mm
Additional features:
| Information | Value |
|---|---|
| Net weight: | 24 g |
| Country of origin | Niemcy |
| ETIM class: | Auxiliary contact block |
| Number of contacts as change-over contact: | 0 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as normally closed contact: | 0 |
| Number of fault-signal switches: | 0 |
| Rated operation current Ie at AC-15, 230 V: | 1,5 A |
| Type of electric connection: | Spring clamp connection |
| Model: | Clip-on |
| Mounting method: | Front fastening |
| Lamp holder: | None |
