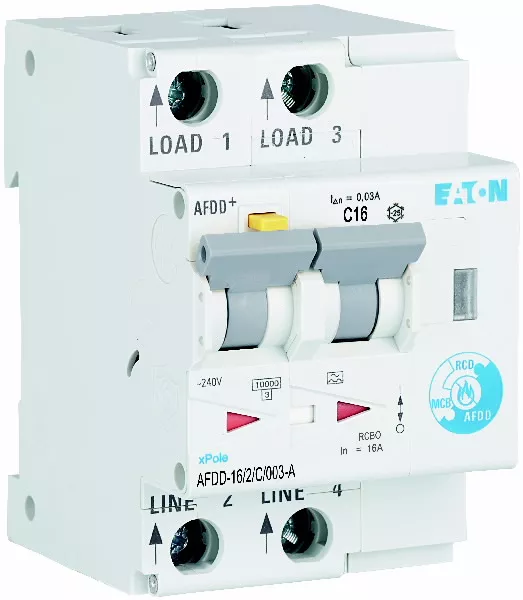

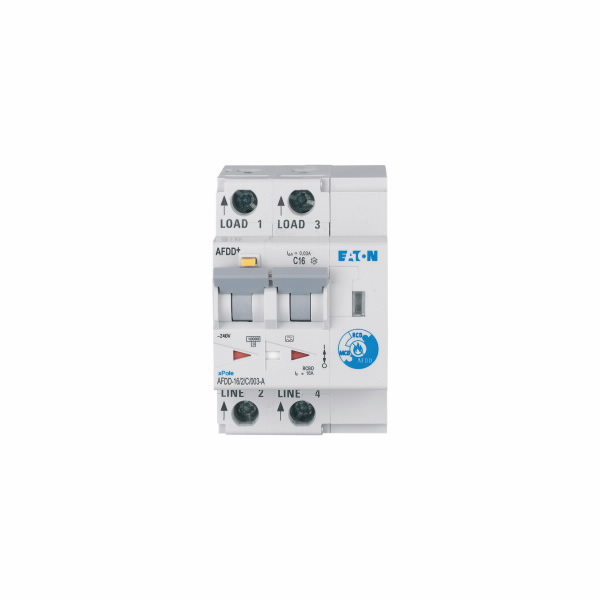

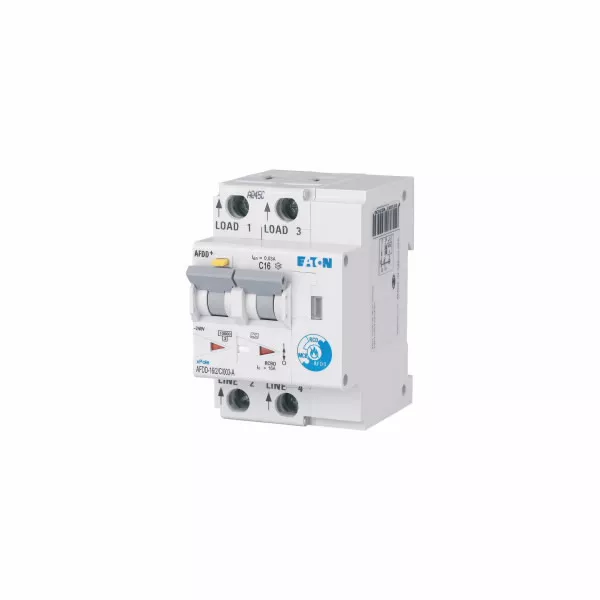

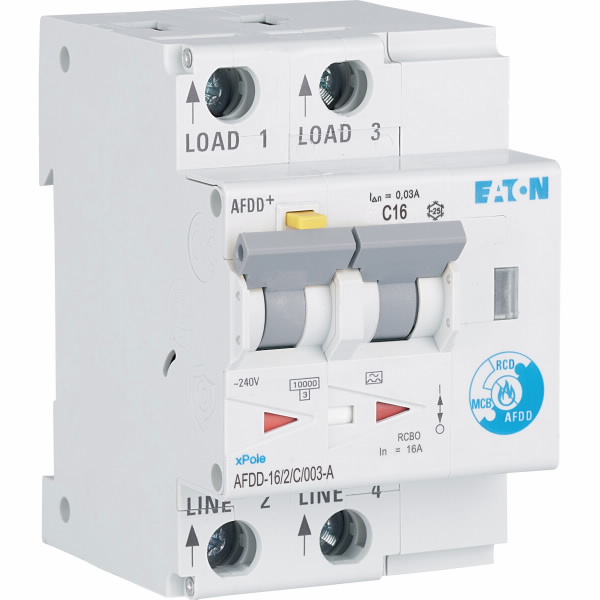

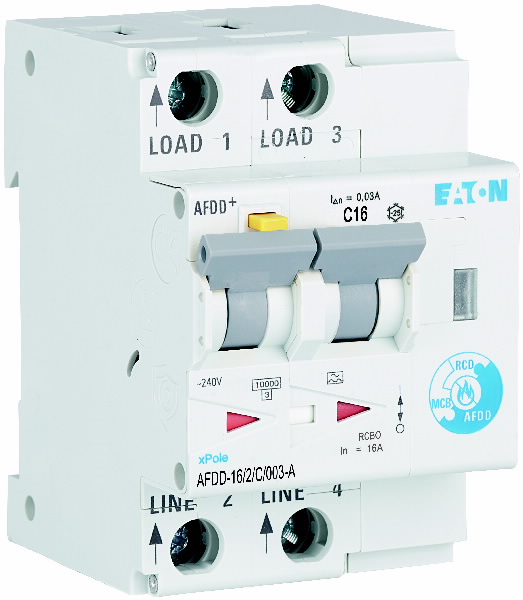

AFDD-16/2/C/003-A Przeciwpożarowy detektor iskrzenia, In=16A, IΔn=0,03A, char. C, Typ A, 2-bieg seria AFDD
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 187210 |
GTIN(EAN) | 4015081822591 |
Price unit | piece |
Catalog price | 2 095,92 zł (1 704,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wysokiej jakości Przeciwpożarowy detektor iskrzenia (AFDD) z wyłącznikiem kombinowanym, niezależne od napięcia sieciowego, wskaźnik położenia styku czerwono-zielony, zabezpieczenie tylnej wtyczki zacisku, zatrzask do mocowania na szynie TH - umożliwia demontaż z istniejącego systemu szyn zbiorczych, szeroki zakres akcesoriów odpowiednich do późniejszej instalacji, szeroki zakres znamionowych prądów zwarciowych, znamionowe prądy robocze do 40 A, charakterystyki wyzwalania B, C, D, znamionowa zdolność wyłączania 10 kA, odpowiednie do użytku na zewnątrz (zasilanie na miejscu i rozdzielnica zewnętrzna) do -25 °
Additional features:
Information | Value |
---|---|
Net weight: | 277 g |
Country of origin | Czechy |
ETIM class: | Earth leakage circuit breaker with auxiliary device |
Number of poles: | 2 |
Rated voltage: | 230 V |
Rated current: | 16 A |
Rated fault current: | 0,03 A |
Leakage current type: | A |
Current limiting class: | 3 |
Rated short-circuit breaking capacity according to EN 61009: | 10 kA |
Rated short-circuit breaking capacity according to IEC 60947-2: | 0 kA |
Frequency: | 50 Hz |
Release characteristic: | C |
Concurrently switching neutral conductor: | no |
Over voltage category: | 3 |
Pollution degree: | 2 |
Width in number of modular spacings: | 3 |
Built-in depth: | 67 mm |
Additional equipment attached at delivery: | Fire protection switch |
Rated switch current auxiliary device: | 0 A |
Rated voltage auxiliary device: | 230 V |
Control voltage type auxiliary equipment: | AC |
Degree of protection (IP): | IP20 |
