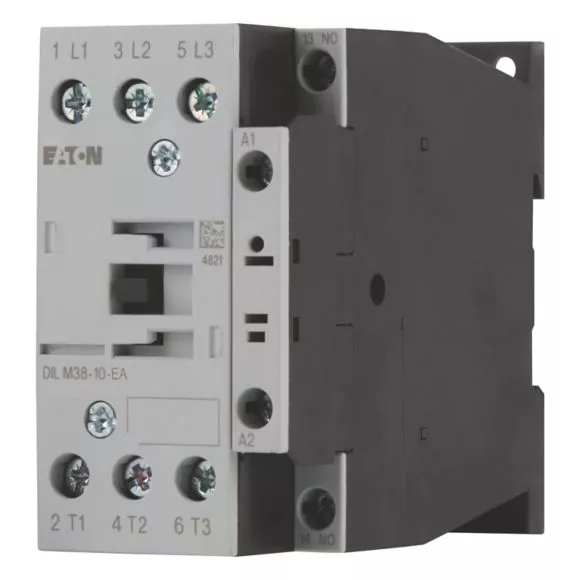

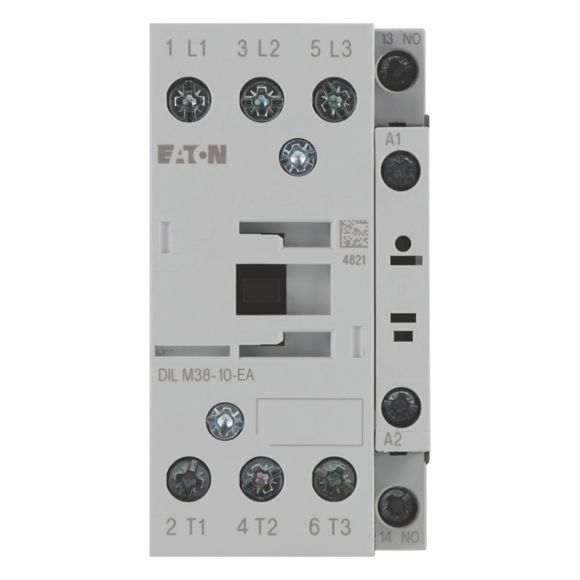

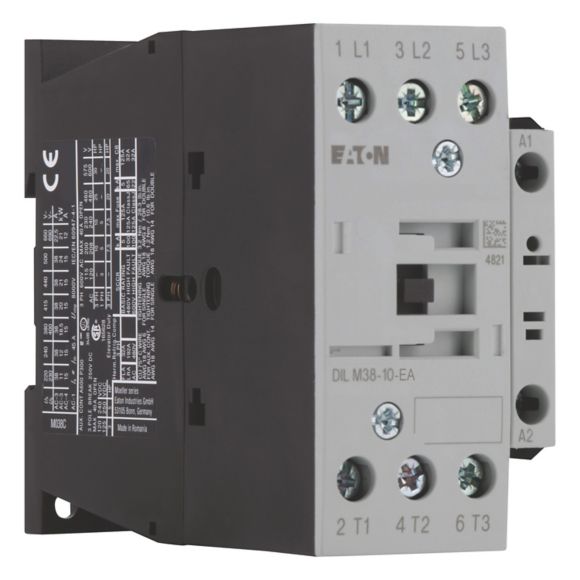

DILM38-10-EA(RDC24) Stycznik,18,5kW/400V,sterowanie 24VDC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 190006 |
| GTIN(EAN) | 4015081880027 |
| Price unit | piece |
| Catalog price | 1 135,29 zł (923,00 zł + 23% VAT) |
| Sale price | from 260,08 zł / szt. (211,45 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stycznik, Zastosowanie: Styczniki do silników, Styczniki do 170 A, 3-biegunowy, Kategoria użytkowa: AC-1: Obciążenia nieindukcyjne lub obciążenia o małej indukcyjności, piece oporowe, NAC-3: Standardowe silniki indukcyjne AC: rozruch, wyłączanie w trakcie pracy, AC-4: Stand. silniki indukcyjne AC: rozruch, podłączanie, cofanie, praca spowolnion, Sposób podłączenia: Zaciski śrubowe, Uwagi: Nie nadaje się do silników o klasie sprawności IE3., Liczba biegunów: 3-biegunowy, Znamionowy prąd roboczy AC-3, 380 V 400 V: Ie = 38 A, Znamionowy prąd roboczy AC-1 Prąd cieplny umowny na wolnym powietrzu, 3-biegunowy, 50–60 Hz Otwarcie przy 40°C: Ith =Ie= 45 A, w obudowie: Ith= 36 A
Additional features:
| Information | Value |
|---|---|
| Net weight: | 534 g |
| Country of origin | Rumunia |
| ETIM class: | Power contactor, AC switching |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 24 - 27 V |
| Voltage type for actuating: | DC |
| Rated operation current Ie at AC-1, 400 V: | 45 A |
| Rated operation current Ie at AC-3, 400 V: | 38 A |
| Rated operation power at AC-3, 400 V: | 18,5 kW |
| Rated operation current Ie at AC-4, 400 V: | 15 A |
| Rated operation power at AC-4, 400 V: | 7 kW |
| Rated operation power NEMA: | 14,9 kW |
| Modular version: | no |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 3 |
| Operating voltage AC 50 Hz: | 24 - 690 V |
| Operating voltage AC 60 Hz: | 24 - 690 V |
| Width: | 45 mm |
| Height: | 85 mm |
| Depth: | 97 mm |
