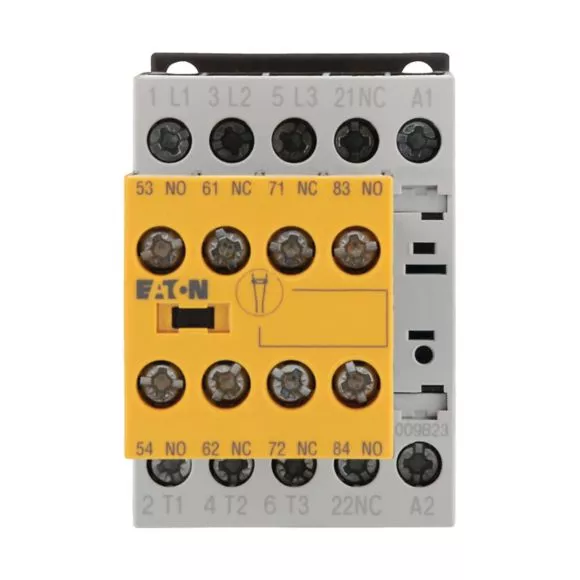

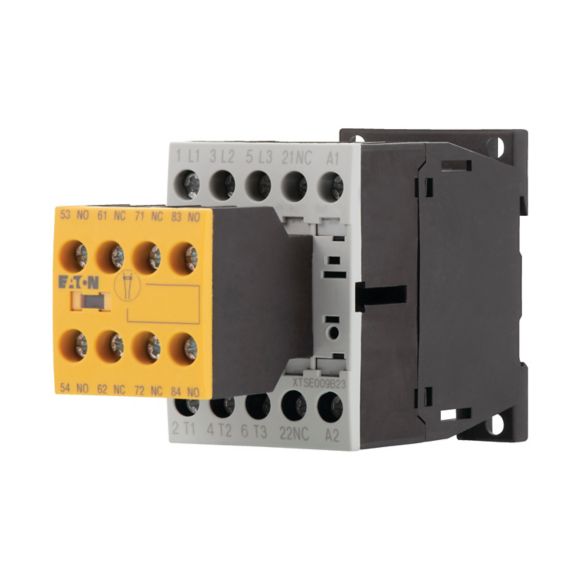

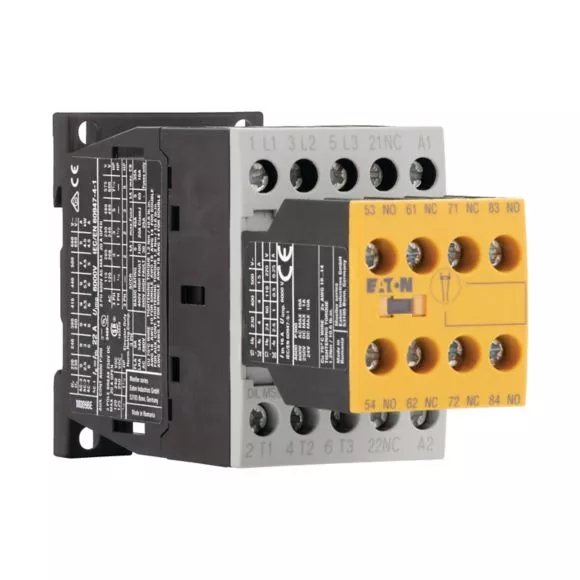

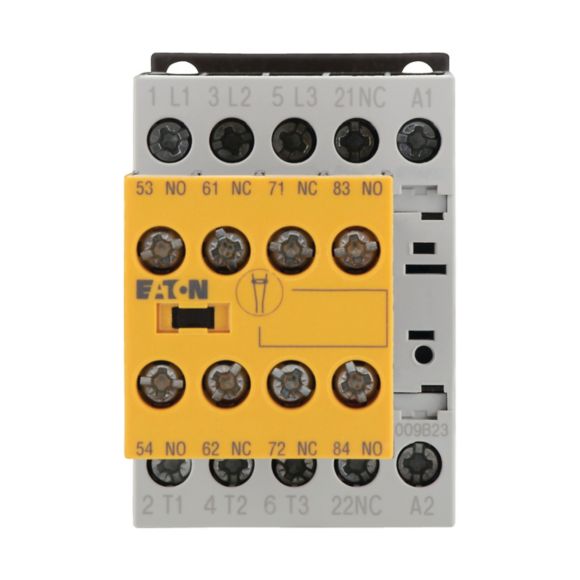

DILMS9-23(110V50HZ,120V60HZ) Stycznik mocy safety 9A, 3P + 2Z + 3R, sterowanie AC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 191702 |
| GTIN(EAN) | 4015081922154 |
| Price unit | piece |
| Catalog price | 402,21 zł (327,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Veiligheidsmagneetschakelaar, toepassing: Magneetschakelaars voor motoren, complete apparaten tot 170 A, gebruikscategorie: AC-1: niet-inductieve of licht inductieve belastingen, weerstand ovens, NAC-3: Kooiankermotoren: starten, uitschakelen tijdens bedrijf, AC-4: Kooiankermotoren: starten, tippen, omkeren, tippen, aansluittechniek: schroefklemmen, opmerkingen: Ook geschikt voor motoren met efficiëntieklasse IE3. IE3-ready apparaten zijn te herkennen aan het logo op hun verpakking. Beschrijving: Hulpcontactelement dat onlosmakelijk verbonden is met het basisapparaat (handmatige activering niet mogelijk).
Additional features:
| Information | Value |
|---|---|
| Net weight: | 288 g |
| Country of origin | Rumunia |
| ETIM class: | Power contactor, AC switching |
| Rated control supply voltage AC 50 Hz: | 110 - 110 V |
| Rated control supply voltage AC 60 Hz: | 120 - 120 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-1, 400 V: | 22 A |
| Rated operation current Ie at AC-3, 400 V: | 9 A |
| Rated operation power at AC-3, 400 V: | 4 kW |
| Rated operation current Ie at AC-4, 400 V: | 6 A |
| Rated operation power at AC-4, 400 V: | 2,5 kW |
| Rated operation power NEMA: | 3,7 kW |
| Modular version: | no |
| Number of auxiliary contacts as normally open contact: | 2 |
| Number of auxiliary contacts as normally closed contact: | 3 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 3 |
| Operating voltage AC 50 Hz: | 24 - 690 V |
| Operating voltage AC 60 Hz: | 24 - 690 V |
| Width: | 45 mm |
| Height: | 69 mm |
| Depth: | 117 mm |
