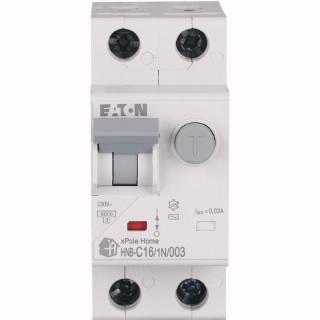

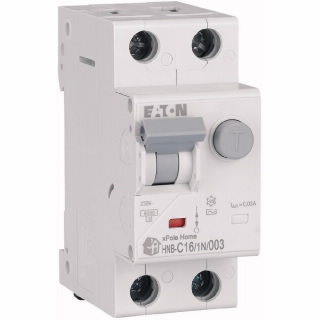

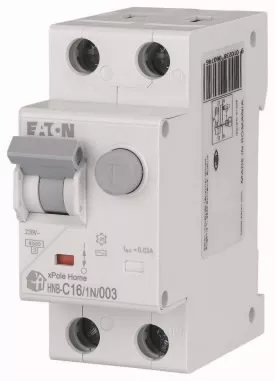

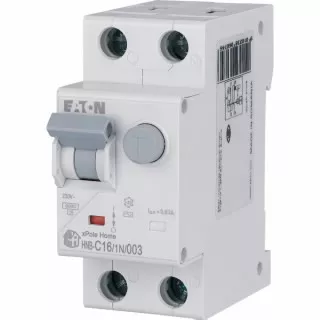

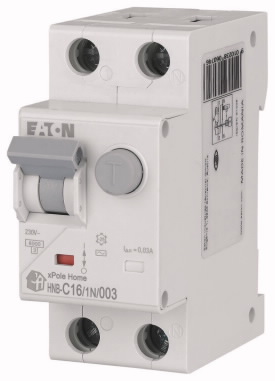

HNB-C16/1N/003 Wyłącznik kombinowany 6kA, In=16A, IΔN=0,03A, char. C, typ AC, 1+N bieg. Seria HNB
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 195127 |
| GTIN(EAN) | 9010238060906 |
| Price unit | piece |
| Catalog price | 556,33 zł (452,30 zł + 23% VAT) |
| Sale price | from 170,86 zł / szt. (138,91 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
HNB-C16/1N/003
Additional features:
| Information | Value |
|---|---|
| Net weight: | 203 g |
| Country of origin | Rumunia |
| ETIM class: | Earth leakage circuit breaker |
| Number of poles (total): | 2 |
| Number of protected poles: | 1 |
| Rated voltage: | 230 V |
| Rated insulation voltage Ui: | 500 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Rated current: | 16 A |
| Rated fault current: | 0,03 A |
| Leakage current type: | AC |
| Current limiting class: | 3 |
| Rated short-circuit breaking capacity according to EN 61009: | 6 kA |
| Rated short-circuit breaking capacity according to IEC 60947-2: | 0 kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1: | 6 kA |
| Disconnection characteristic: | Undelayed |
| Surge current capacity: | 0,25 kA |
| Voltage type: | AC |
| Frequency: | 50 Hz |
| Release characteristic: | C |
| Concurrently switching neutral conductor: | yes |
| With interlocking device: | no |
| Over voltage category: | 3 |
| Pollution degree: | 2 |
| Ambient temperature during operating: | -25 - 40 °C |
| Width in number of modular spacings: | 2 |
| Built-in depth: | 69,5 mm |
| Flush-mounted installation: | no |
| Anti-nuisance tripping version: | no |
| Degree of protection (IP): | IP20 |
| Connectable conductor cross section solid-core: | 1 - 25 mm² |
| Connectable conductor cross section multi-wired: | 1 - 25 mm² |
