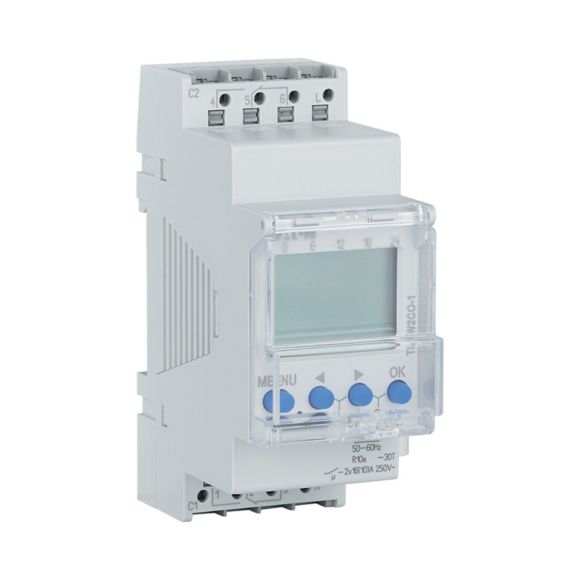

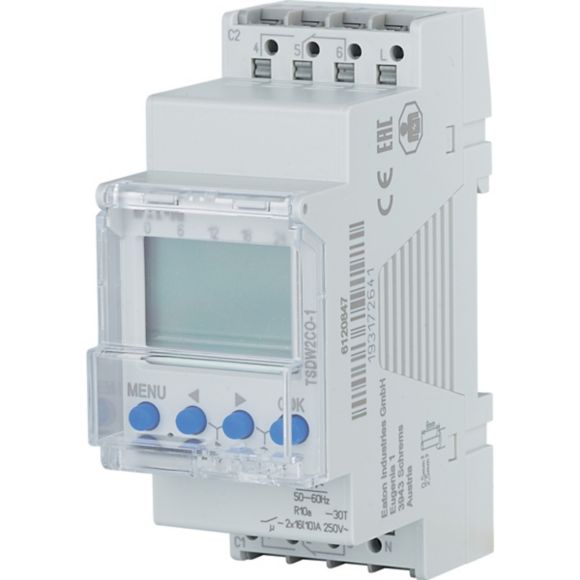

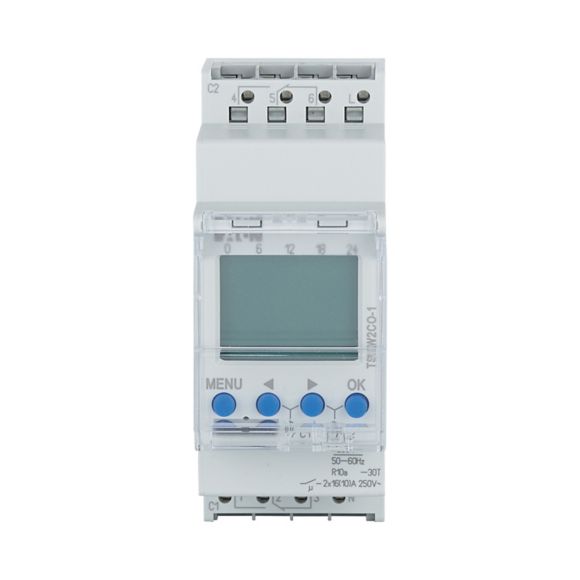

TSDW2CO-1 Cyfrowy zegar sterowniczy tyg., 1 przem.
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 196849 |
| GTIN(EAN) | 9008790990458 |
| Price unit | piece |
| Catalog price | 1 496,91 zł (1 217,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Digitale timer met weekprogramma voor DIN-rail, duoFix- steekklemmen, tekstgeoriënteerde gebruikersbegeleiding op het display, 56 geheugensleuven, interface voor geheugenkaart (pc-programmering), 10 jaar energiereserve (lithiumbatterij), nuldoorgangscircuit voor relaisvriendelijk schakelen en hoge lamplast, AAN/UIT-schakeltijden, circuitselectie, continu AAN / UIT, geïntegreerde bedrijfsurenteller, vakantieprogramma, displayverlichting (kan worden uitgeschakeld), PIN-codering, automatische zomer-/wintertijdomschakeling, 2-kanaals, wisselcontact 16(10) A/250 V~, led 600W (>2 W), Stand-by verbruik ~0,4 W, verzegelbaar doorzichtig deksel
Additional features:
| Information | Value |
|---|---|
| Net weight: | 123 g |
| Country of origin | Niemcy |
| ETIM class: | Digital time switch for distribution board |
| Mounting method: | DIN rail |
| Number of channels: | 2 |
| Voltage type (supply voltage): | AC |
| Autonomy in hours: | 0 |
| Autonomy in years: | 10 |
| Accuracy per day: | 0,5 s |
| Text guidance in display: | yes |
| External programming: | yes |
| With memory card: | no |
| 60 min program: | no |
| 24 h program: | yes |
| Weekly program: | yes |
| Annual program: | no |
| Holiday program: | yes |
| Impulse program: | no |
| Cycle program: | no |
| Astro program: | no |
| Random program: | no |
| Hour meter: | yes |
| Mains synchronous: | no |
| Quartz controlled: | yes |
| Radio-controlled: | no |
| Radio-controlled (DCF77): | no |
| GPS (global positioning system): | no |
| Contact type: | Change-over contact (NO/NC) |
| Number of contacts: | 2 |
| Shortest switching time channel 1: | 1 min |
| Shortest switching time channel 2: | 1 min |
| Number of memory locations: | 56 |
| Automatic switching summer-/winter time: | yes |
| Suitable for manual operation: | yes |
| External pushbutton input: | no |
| Switching preselection: | yes |
| Nominal switching current at 250 V AC: | 16 A |
| Max. switching power LED: | 600 W |
| Potential free switch contact: | yes |
| Degree of protection (IP): | IP20 |
| Width in number of modular spacings: | 2 |
| Width: | 35,8 mm |
| Height: | 90,1 mm |
| Depth: | 69,2 mm |
| Output signal: | Other |
