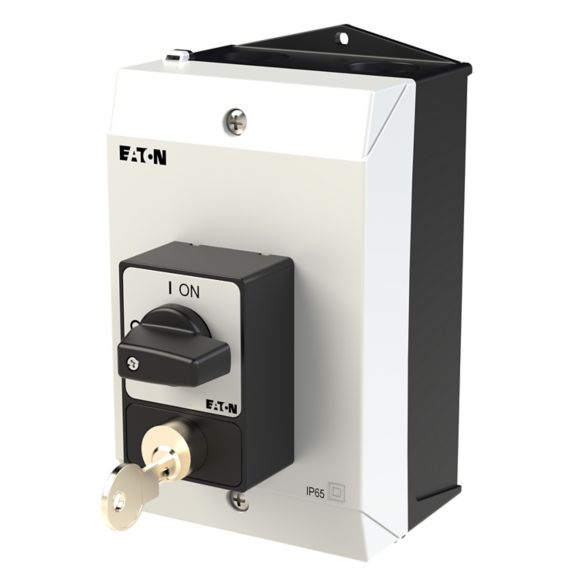

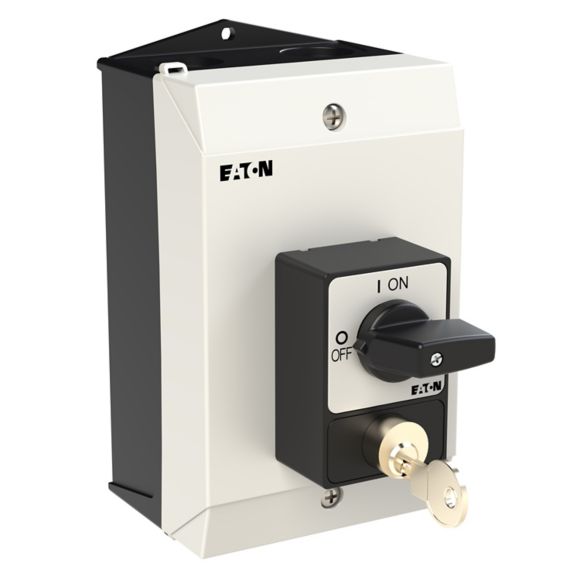

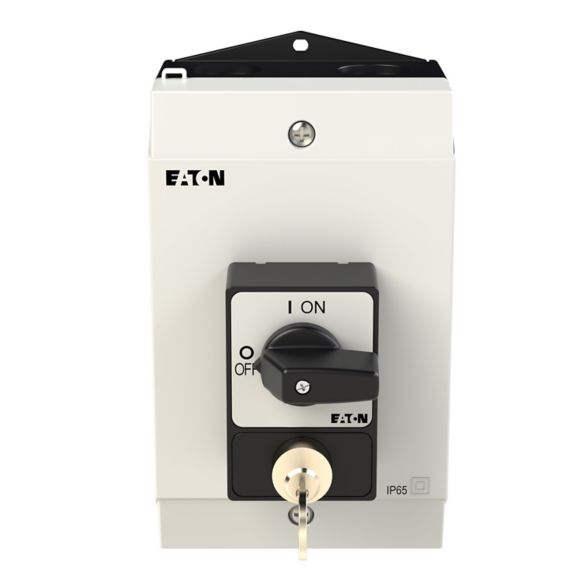

P1-25/I2/SVA(A) Przełącznik Zał.-Wył., 3 bieg., 25 A, zamek cylindryczny SVA, w obudowie IP65, pokrętło czarne z zamkiem cylindrycznym
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 207304 |
| GTIN(EAN) | 4015082073046 |
| Price unit | piece |
| Catalog price | 1 043,04 zł (848,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Rozłącznik ZAŁ-WYŁ, P1, Znamionowy prąd ciągły (Iu): 25 A, Wyposażone w: Czarne pokrętło z tabliczką czołową, Sposób montażu: Montaż powierzchniowy, Liczba biegunów: Trzybiegunowy, Element blokujący: Możliwość zablokowania w położeniu 0 (Wył.), Stopień ochrony: NEMA 12
Additional features:
| Information | Value |
|---|---|
| Net weight: | 538 g |
| Country of origin | Wielka Brytania |
| ETIM class: | Switch disconnector (low voltage) |
| Version as main switch: | no |
| Version as maintenance-/service switch: | no |
| Version as safety switch: | no |
| Version as emergency stop installation: | no |
| Version as reversing switch: | no |
| Number of switches: | 1 |
| Max. rated operation voltage Ue AC: | 690 V |
| Rated permanent current Iu: | 25 A |
| Rated permanent current at AC-23, 400 V: | 25 A |
| Rated permanent current at AC-21, 400 V: | 25 A |
| Rated operation power at AC-3, 400 V: | 7,5 kW |
| Rated short-time withstand current lcw: | 0,64 kA |
| Rated operation power at AC-23, 400 V: | 13 kW |
| Switching power at 400 V: | 13 kW |
| Conditioned rated short-circuit current Iq: | 80 kA |
| Number of poles: | 3 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Motor drive optional: | no |
| Motor drive integrated: | no |
| Voltage release optional: | no |
| Device construction: | Complete device in housing |
| Suitable for floor mounting: | yes |
| Suitable for front mounting 4-hole: | no |
| Suitable for front mounting centre: | no |
| Suitable for distribution board installation: | no |
| Suitable for intermediate mounting: | no |
| Colour control element: | Red |
| Type of control element: | Short thumb-grip |
| Interlockable: | no |
| Type of electrical connection of main circuit: | Screw connection |
| Degree of protection (IP), front side: | IP65 |
| Degree of protection (NEMA): | 12 |
| With pre-assembled cabling: | no |
| Width: | 100 mm |
| Height: | 180 mm |
| Depth: | 126 mm |
