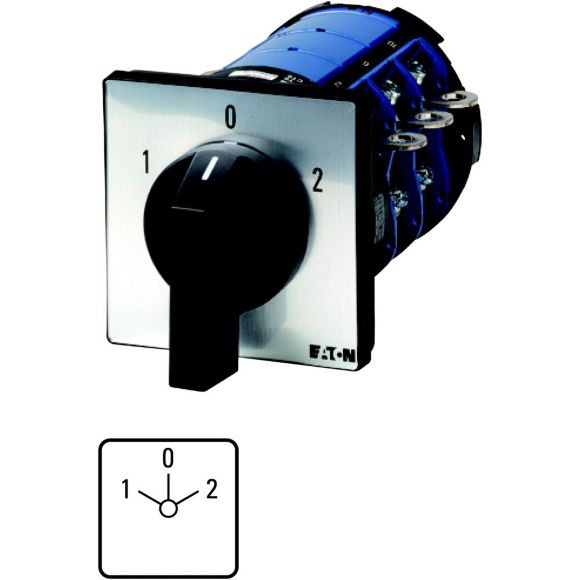

T8-3-8212/E/HI12 Przełącznik zasilania, Styki: 9, 315 A, tabliczka: 1-0-2, 60 °, bez samopowrotu, montaż natablicowy, pokrętło czarne bez możliwości blokady
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 214782 |
GTIN(EAN) | 4015082147822 |
Price unit | piece |
Catalog price | 6 549,75 zł (5 325,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wyłącznik główny wg IEC/EN60947-3, wielkość konstrukcyjna T8, 690 V/315A, klasa ochrony przód IP65, zamykanie w położeniu zerowym 3 kłódkami, ogólne kształty konstrukcji: obudowa natynkowa z izolacją, montaż montaż pośredni. Wydajne, wytrzymałe i kompaktowe łączniki krzywkowe stosuje się w przemyśle, pracach ręcznych i technice budowlanej.
Additional features:
Information | Value |
---|---|
Net weight: | 3,02 kg |
ETIM class: | Off-load switch |
Model: | Reverser |
Number of poles: | 3 |
With zero (off) position: | yes |
With retraction in 0-position: | no |
Rated permanent current Iu: | 315 A |
Rated operation current Ie at AC-3, 400 V: | 105 A |
Rated operation power at AC-3, 400 V: | 55 kW |
Degree of protection (IP), front side: | IP65 |
Degree of protection (NEMA), front side: | 12 |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as change-over contact: | 0 |
Suitable for floor mounting: | no |
Suitable for front mounting: | yes |
Suitable for distribution board installation: | no |
Suitable for intermediate mounting: | no |
Complete device in housing: | no |
Housing material: | Plastic |
Type of control element: | Short thumb-grip |
Type of electrical connection of main circuit: | Screw connection |
