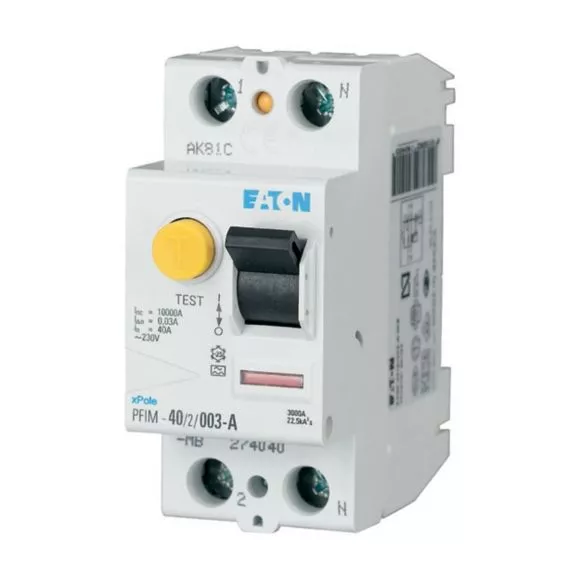

PFIM-25/2/003-A-MW Wyłącznik różnicowoprądowy 10kA, In=25A, IΔN=0,03A, Typ A, 2-bieg. seria PFIM
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 235424 |
GTIN(EAN) | 4015082354244 |
Price unit | piece |
Catalog price | 739,35 zł (601,10 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 189 g |
ETIM class: | Residual current circuit breaker (RCCB) |
Number of poles: | 2 |
Rated voltage: | 230 V |
Rated current: | 25 A |
Rated fault current: | 0.03 A |
Rated insulation voltage Ui: | 440 V |
Rated impulse withstand voltage Uimp: | 4 kV |
Mounting method: | DIN rail |
Leakage current type: | A |
Selective protection: | no |
Short-time delayed tripping: | no |
Short-circuit breaking capacity (Icw): | 10 kA |
Surge current capacity: | 0.25 kA |
Voltage type: | AC |
With interlocking device: | yes |
Frequency: | 50 Hz |
Additional equipment possible: | yes |
Degree of protection (IP): | IP20 |
Width in number of modular spacings: | 2 |
Built-in depth: | 70.5 mm |
Ambient temperature during operating: | -25 - 55 °C |
Pollution degree: | 2 |
Connectable conductor cross section multi-wired: | 1.5 - 16 mm² |
Connectable conductor cross section solid-core: | 1.5 - 35 mm² |
Explosion-proof: | no |
