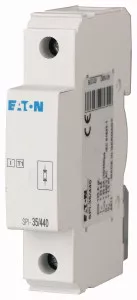

SPI-35/440 ; Ogranicznik przepięć klasy B

• buy at the outlet / on sale
• Buy online
• Buy / order

Information	Value
Supplier	EATON Electric Sp. z o.o. (MOELLER)
Symbol	263137
GTIN(EAN)	4015082631376
Price unit	piece
Product withdrawn	This product is not produced any more. It might still be available if some wholesaler has it in it's stock

Description:

Odgromnik: zastosowanie zgodnie z IEC60364-5-53 Clause 534 Do zabezpieczania odbiorników w instalacjach

Additional features:

Information	Value
ETIM class:	Lightning current arrester for power supply systems
System configuration DC:	no
System configuration IT:	no
System configuration TN:	no
System configuration TN-C:	no
System configuration TN-C-S:	no
System configuration TN-S:	no
System configuration TT:	no
System configuration other:	no
Lightning impulse current (10/350 µs):	35 kA
Nominal discharge surge current (8/20):	35 kA
Max. continuous voltage AC:	440 V
Max. continuous voltage DC:	0 V
Nominal voltage AC:	0 V
Nominal voltage DC:	0 V
Voltage protection level:	1.5 kV
Voltage protection level L-N:	0 kV
Voltage protection level N-PE:	0 kV
Voltage protection level (DC+ - DC-):	0 kV
Voltage protection level (DC+/DC- - PE):	0 kV
Follow current extinguishing capability:	0 kA
Specific energy (W/R):	0 kJ/Ω
Mounting method:	DIN rail (top hat rail) 35 mm
Construction size:	1 modular spacing
Max. conductor cross section solid (solid, stranded):	25 mm²
Max. conductor cross section flexible (fine-strand):	35 mm²
With remote signalling contact:	no
Exhausting:	no
Signalling at the device:	Optical
Category type 1:	yes
Integrated backup fuse:	no
Suitable for outdoor use:	no
