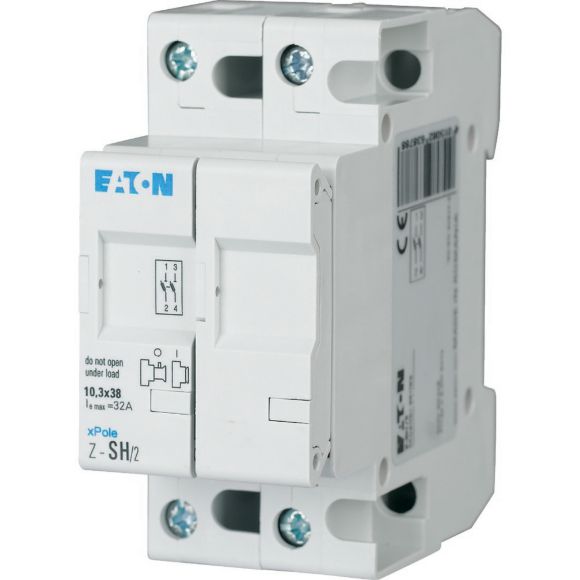

Z-SH/2 Podstawa bezpiecznikowa do wkładek cylindrycznych
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 263878 |
GTIN(EAN) | 4015082638788 |
Price unit | piece |
Catalog price | 109,77 zł (89,24 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Fuse disconnector for industrial applications, without visual trip indication, for cylindrical fuse inserts, sealable, supplied without fuses, type conforms to IEC/EN 60947-3
Additional features:
Information | Value |
---|---|
Net weight: | 170 g |
ETIM class: | Fuse switch disconnector |
Cable entry: | Other |
Rated permanent current Iu: | 32 A |
Number of poles: | 2 |
Conditioned rated short-circuit current Iq: | 10 kA |
Degree of protection (IP), front side: | IP20 |
Suitable for fuses: | Shape C1-C3 |
Motor drive integrated: | no |
Type of electrical connection of main circuit: | Screw connection |
Version as emergency stop installation: | no |
Type of control element: | Other |
Version as main switch: | no |
Version as safety switch: | no |
Rated operation power at AC-23, 400 V: | 0 kW |
Rated short-time withstand current lcw: | 0 kA |
Suitable for floor mounting: | no |
Suitable for front mounting: | no |
Suitable for busbar mounting: | no |
Max. rated operation voltage Ue AC: | 400 V |
With error protection: | no |
Motor drive optional: | no |
Position control element: | Front side |
Equipped with connectors: | no |
