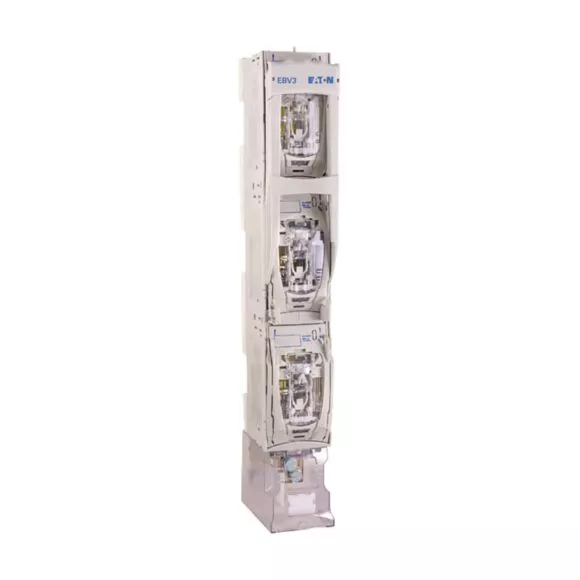

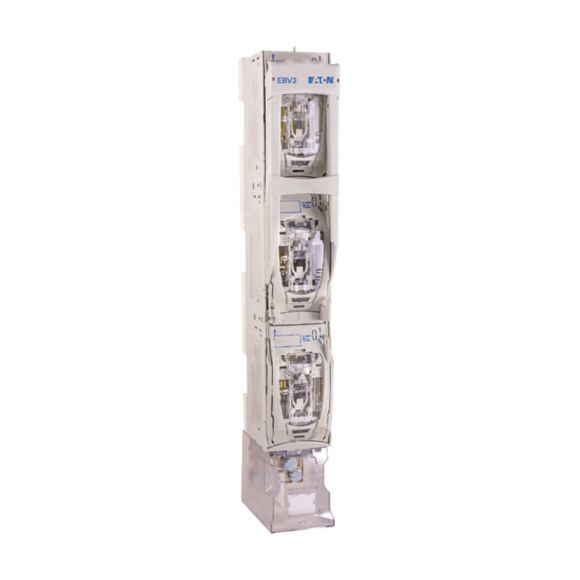

EBF00330S8 Podstawa bezpiecznikowa NH, Szyna bezpiecznikowa,, 160 A, AC 690 V, NH00, 3P, IEC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | EBF00330S8 |
| GTIN(EAN) | 5906739001859 |
| Price unit | piece |
| Catalog price | 1 091,50 zł (887,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Akcesorium do bezpiecznika, Szyna bezpiecznikowa, Niskie napięcie, 160 A, AC 690 V, NH00, 3P, IEC, pionowy, Mocowanie szyny zbiorczej 185 mm, Mocowania mostka S, Śruby M8, Wkładki bezpiecznikowe NH00, IEC 60269-1, IP00
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,796 kg |
| Country of origin | Polska |
| ETIM class: | In-line fuse switch disconnector base |
| Model: | Fuse base |
| Double interrupting: | no |
| Rated permanent current Iu: | 160 A |
| Distance between rail centre, 40 mm: | no |
| Distance between rail centre, 50 mm: | no |
| Distance between rail centre, 60 mm: | no |
| Distance between rail centre, 100 mm: | no |
| Distance between rail centre, 185 mm: | yes |
| Max. rated operation voltage Ue AC: | 690 V |
| Conditioned rated short-circuit current Iq: | 0,1 kA |
| Type of electrical connection of main circuit: | Other |
| Number of poles: | 3 |
| Construction size fuse insert: | NH00 |
| Release indication: | None |
