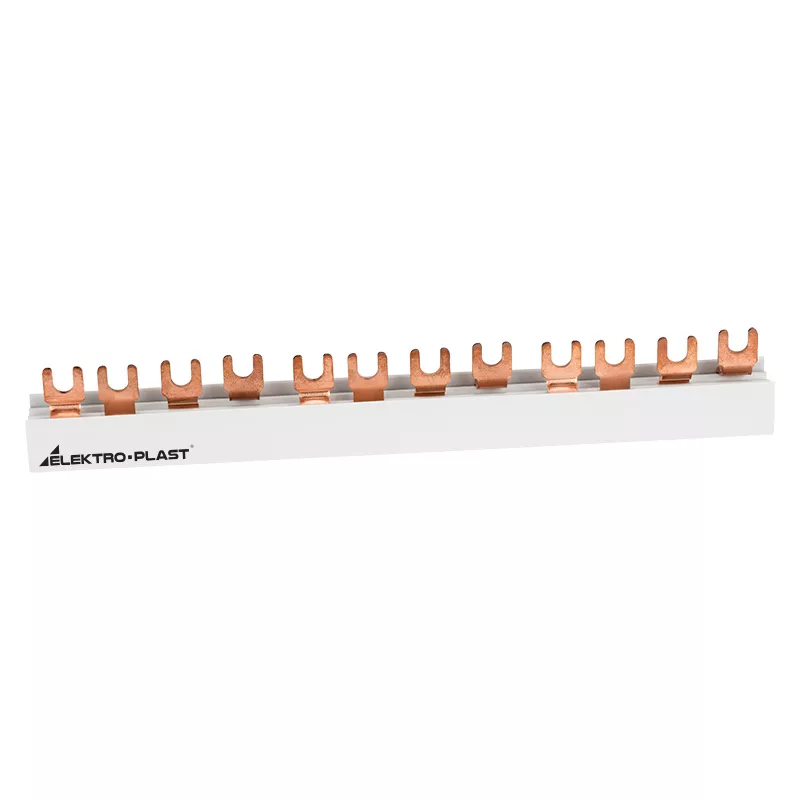

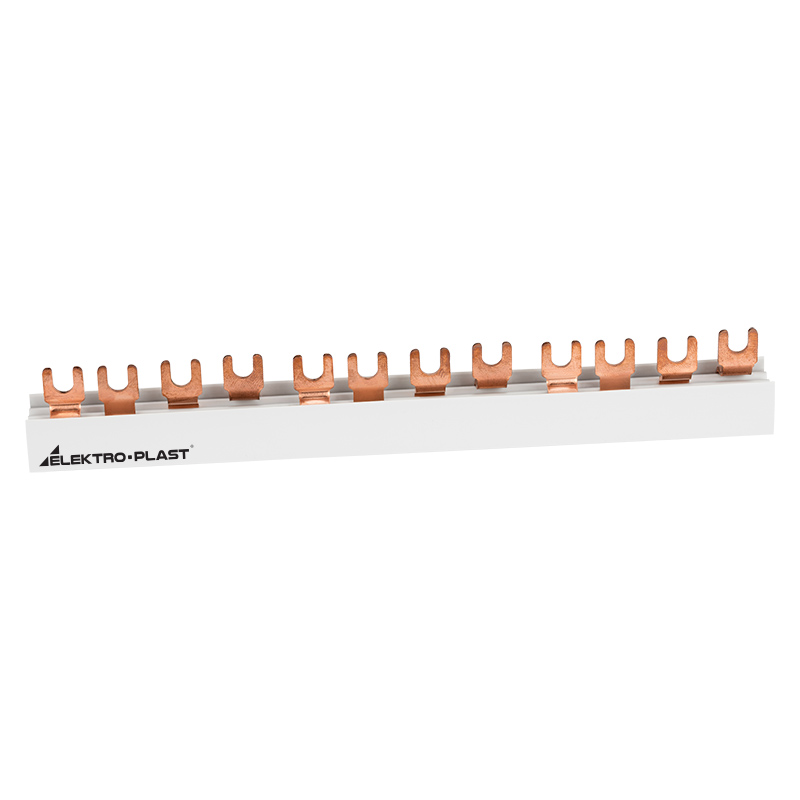

S124F10 Szyna prądowa S12 4F -10 szara
Information | Value |
---|---|
Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
Symbol | 45.412 |
GTIN(EAN) | 5901769011373 |
Price unit | piece |
Catalog price | 50,15 zł (40,77 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Szyny prądowe czterotorowe, wygodne do montażu , izolowane miedziane szyny prądowe przystosowane są do łączenia wyłączników i aparatów elektrycznych typu "S".
Additional features:
Information | Value |
---|---|
Net weight: | 150 g |
ETIM class: | Phase busbar |
Number of phases: | 4 |
Number of poles: | 3 |
Suitable for number of devices: | 12 |

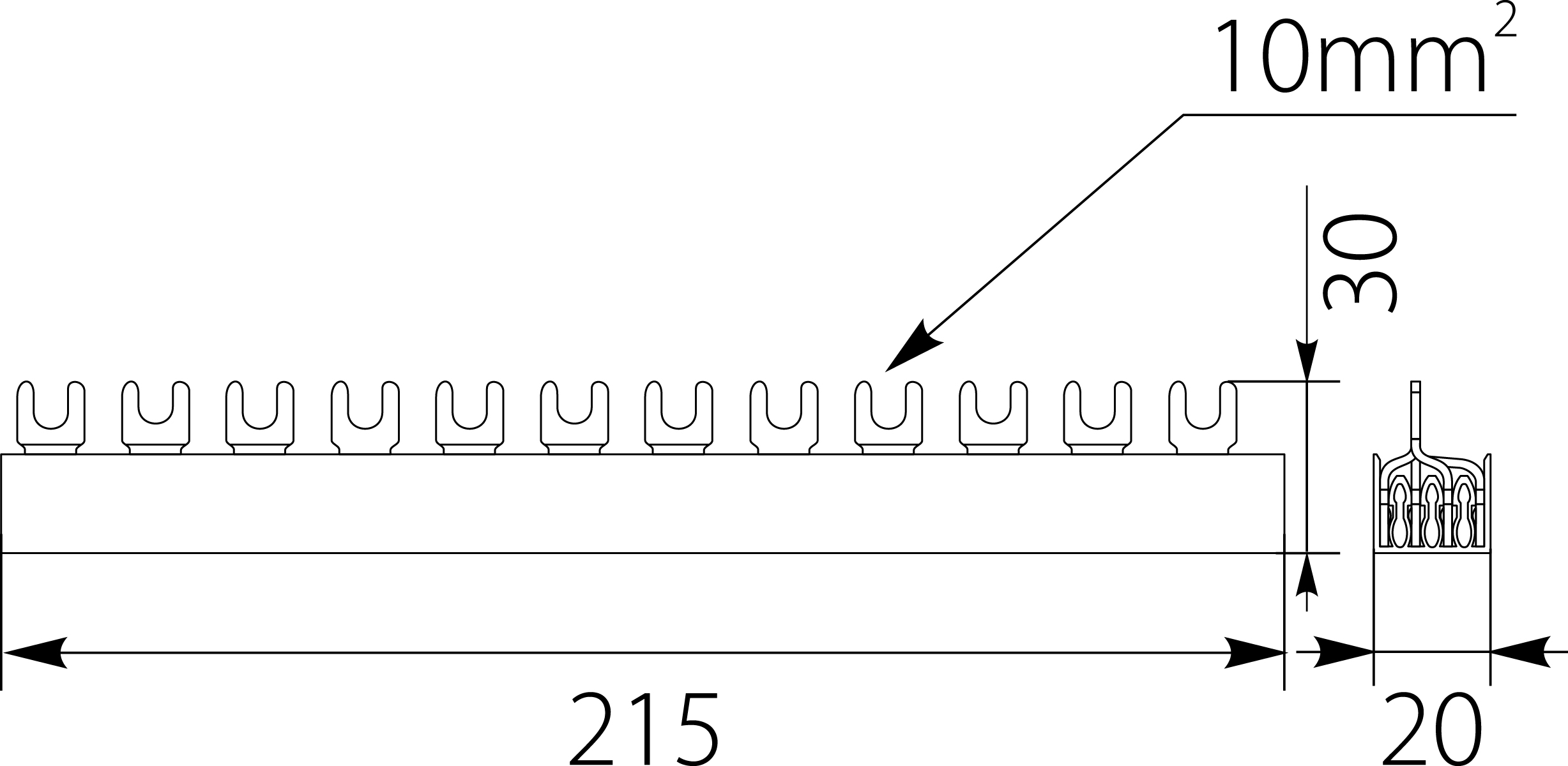

Module width: | 18 mm |
Cross section: | 10 mm² |
Length: | 215 mm |
Width in number of modular spacings: | 12 |
Rated permanent current Iu: | 63 A |
Type of electric connection: | Fork |
Insulated: | yes |
Rated surge voltage: | 4 kV |
Max. rated operation voltage Ue: | 415 V |
Suitable for devices with N-conductor: | yes |
Suitable for devices with auxiliary switch: | no |
