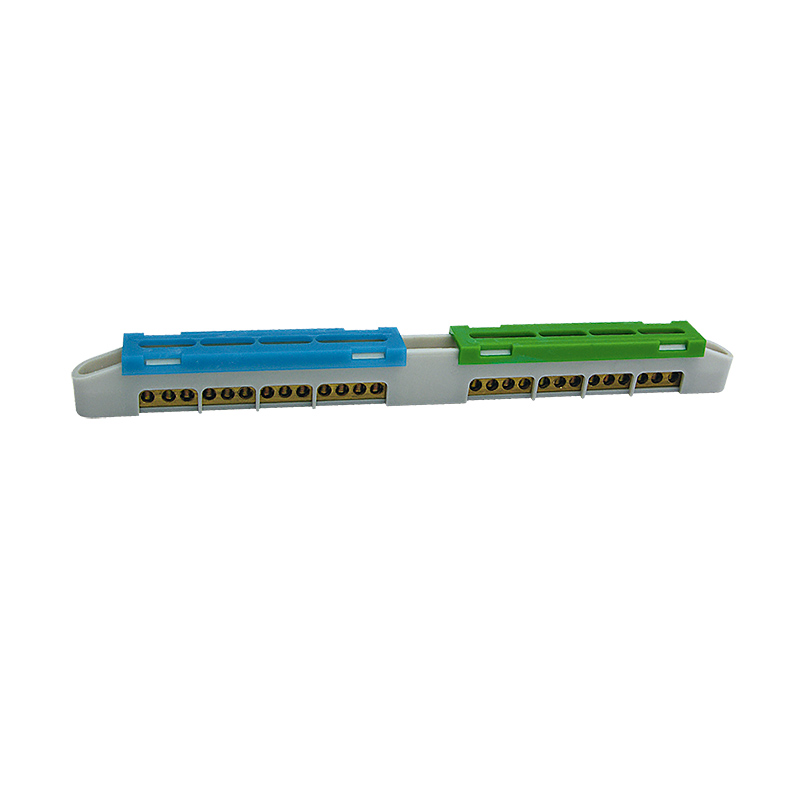

LZ-12 Listwa zaciskowa szary/niebieski/zielony
| Information | Value |
|---|---|
| Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
| Symbol | 47.112 |
| GTIN(EAN) | 5905548287287 |
| Price unit | piece |
| Catalog price | 15,69 zł (12,76 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Listwa N+PE stostowana w rozdzielnicach RH SRn RN SRp RP
Additional features:
| Information | Value |
|---|---|
| Net weight: | 140 g |
| Country of origin | Polska |
| ETIM class: | Single- and multi-pole terminal strip |
| Explosion-tested version 'Ex e': | no |
| Type of electrical connection 1: | Screw connection |
| Type of electrical connection 2: | Screw connection |
| Number of poles: | 2 |
| Number of clamp positions per pole: | 13 |
| Mounting method: | Direct mounting |
| Material insulation body: | Thermoplastic |
| Closing plate required: | yes |
| Colour: | Other |
| Transparent: | no |
| Drill hole distance centrically: | 240 mm |
| Connectable conductor cross section fine-strand with cable end sleeve: | 1,5 - 25 mm² |
| Connectable conductor cross section solid-core: | 1,5 - 25 mm² |
| Rated current In: | 120 A |
| Rated voltage: | 500 V |
| Operating temperature: | -20 - 60 °C |
| Halogen free: | yes |
| Width: | 259 mm |
| Height: | 26 mm |
| Depth: | 18 mm |
