Gniazdo Hermetyczne Schuko GHNS IP66 szare
| Information | Value |
|---|---|
| Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
| Symbol | 55.67 |
| GTIN(EAN) | 5901769019065 |
| Price unit | piece |
| Catalog price | 78,25 zł (63,62 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

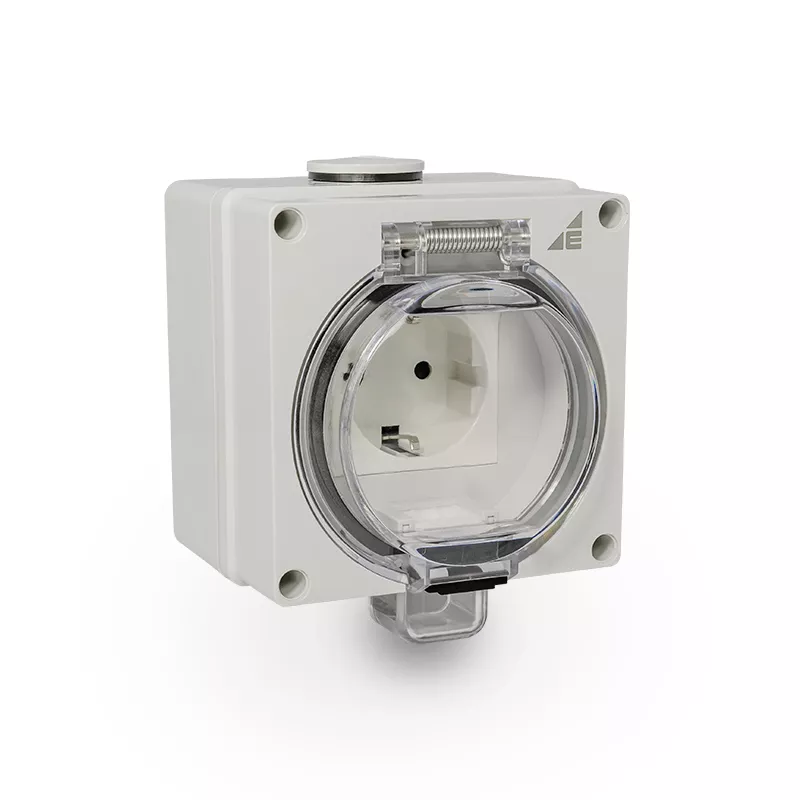

AQUA66 hermetic sockets have a protection class of IP66 and allow for surface mounting. The casing is made of high-quality gray PC material, transparent PC flap opens up to 90°. Construction and system seals allow the flap to be closed tightly after connecting the plug. Box dimensions 100x100 mm equipped it has three threaded plugs with seals, which can be replaced with 1x M25x1.5 and 2x M20x1.5 glands.
AQUA66 single hermetic Schuko socket 2P+Z, 16A, 250V~ (GHNS, cat. no. 55.67). The sockets have solid screw terminals, a set of screws is included mounting brackets with expansion plugs, screw caps and mounting plates for installation sockets without unscrewing the housing. The hermetic AQUA66 series will work well in industrial conditions and backyard.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 360 g |
| Gross weight: | 398 g |
| ETIM class: | Socket outlet |
| Number of modules (module system): | 2 |
| Number of phases: | 1 |
| Connection type: | Screwed terminal |
| With hinged lid: | yes |
| Colour: | Grey |
| Transparent: | yes |
| Lockable: | yes |
| Mounting method: | Surface mounted |
| Type of fastening: | Mounting with screw |
| Material: | Plastic |
| Halogen free: | yes |
| Nominal current: | 16 A |
| Nominal voltage: | 250 V |
| Suitable for degree of protection (IP): | IP66 |
| Model: | Multi-standard socket |
| Concurrently switching neutral conductor: | no |
| Protective contact: | Earthing clips |
| Insulated mounting: | yes |
| Impact strength: | IK07 |

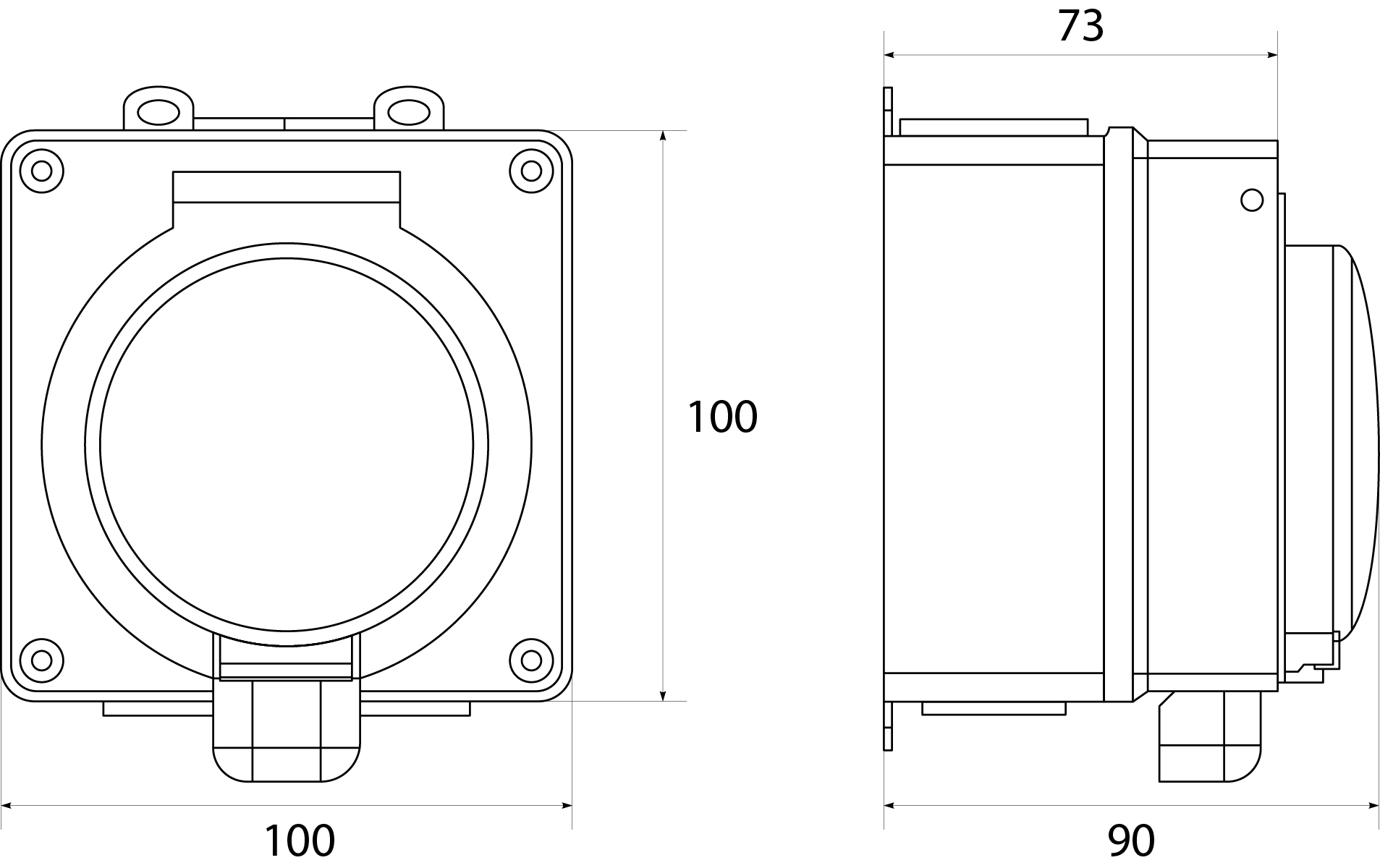

| Device width: | 100 mm |
| Device height: | 100 mm |
| Device depth: | 90 mm |
