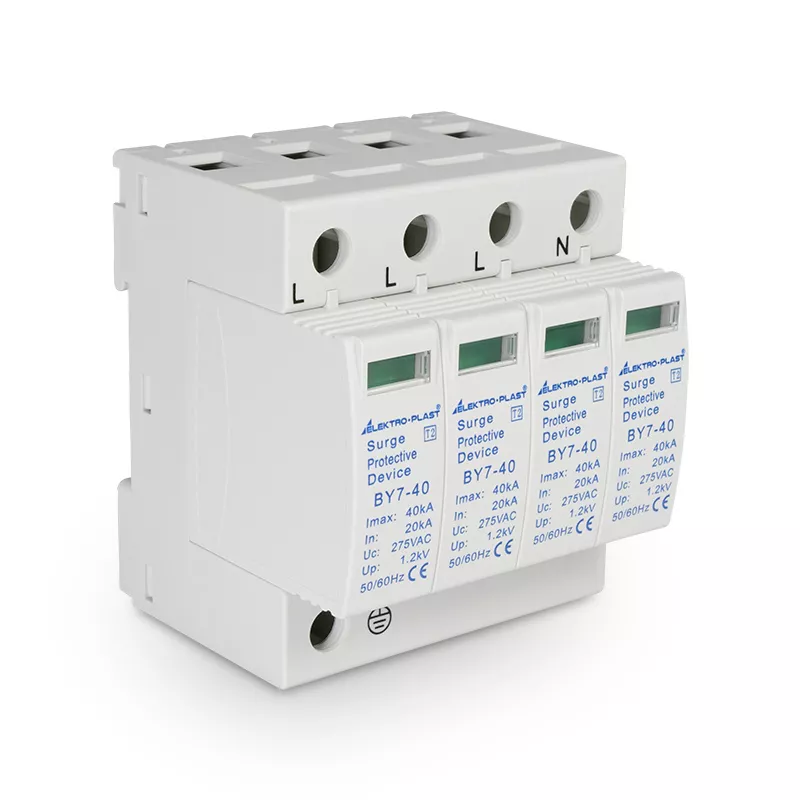

Ogranicznik przepięć C 4P (T2 AC) BY7-40/4-275 biały
Information | Value |
---|---|
Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
Symbol | 87.787 |
Price unit | piece |
Catalog price | 142,86 zł (116,15 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 328 g |
Gross weight: | 352 g |
ETIM class: | Combined arrester for power supply systems |
System configuration TN-S: | yes |
Number of poles: | 4 |
Nominal voltage AC: | 230 V |
Voltage protection level: | 1.2 kV |
Mounting method: | DIN rail (top hat rail) 35 mm |
Construction size: | 4 modular spacing |
Max. conductor cross section solid (solid, stranded): | 35 mm² |
Max. conductor cross section flexible (fine-strand): | 35 mm² |
Signalling at the device: | Optical |
Degree of protection (IP): | IP20 |
