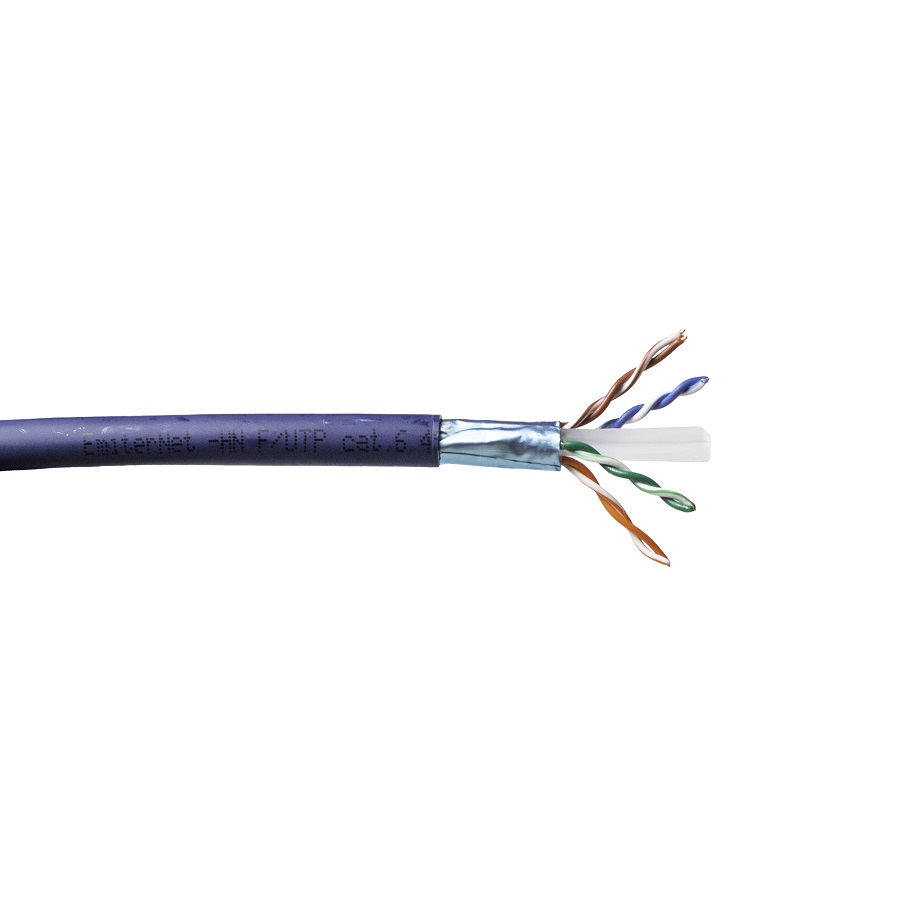

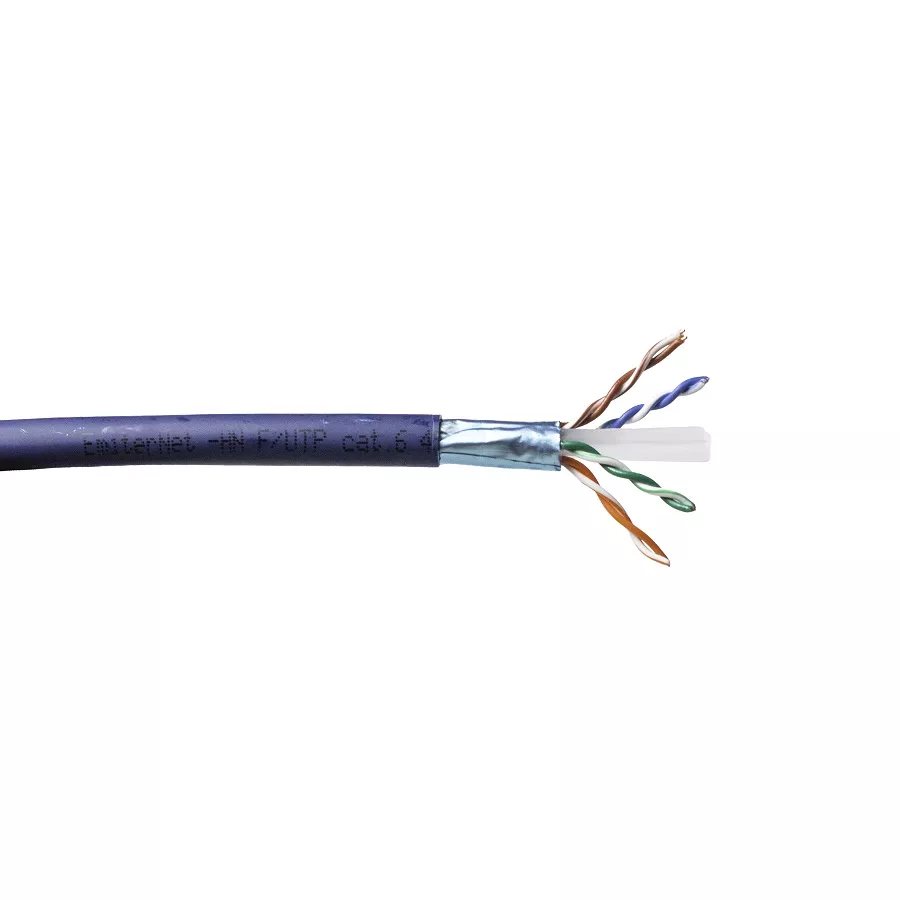

Kabel Emiter Net FTP (F/UTP) kat 6 450 MHz, drut 4 x2 x 23AWG, LSZH-FR
Information | Value |
---|---|
Supplier | Emiter Sp. z o.o. Katowice |
Symbol | K/EMITERNET-FTP6LS0H. |
GTIN(EAN) | 5906764105935 |
Price unit | kilometer |
Catalog price | 4 656,78 zł (3 786,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Czteroparowy, telekomunikacyjny kabel ekranowany kategorii 6 jest przeznaczony do szerokopasmowych systemów transmisji danych. Konstrukcja kabla opiera się na 4 parach drutów skręconych wzajemnie (tzw. skrętka) ze sobą w taki sposób, aby zredukować przesłuchy międzyparowe. Dodatkowo pary zostały zabezpieczone ekranem z folii aluminiowej. Kabel ten jest dostępny w powłoce zewnętrznej LSZH-FR ( LS0H-FR , "low smoke zero halogen flame retardant") - kabel bezhalogenowy. Kabel posiada 4 pary drutów z oznaczeniem kolorowym. Kabel testowany do czestotliwości 450MHz. Na kablu nadrukowane jest oznaczenie producenta, zgodność z normami oraz znacznik długości: EmiterNet -HN F/UTP cat.6 450MHz LSZH-FR 23AWG x 4PR, Verified to EN/PL 50173 ISO/IEC 11801 EIA/TIA 568-C.2 CE Reakcja na ogien: Dca-s2-d2-a2 MM/YY xxxm, gdzie MM/YY to miesiąc i rok, xxx – długość kabla.
Additional features:
Information | Value |
---|---|
Net weight: | 27,6 kg |
Gross weight: | 27,6 kg |
ETIM class: | Data and communication cable |
Conductor surface: | Bare |
Diameter conductor: | 0.6 mm |
Conductor category: | Class 1 = solid |
Number of cores: | 8 |
Number of stranding elements: | 4 |
Stranding element: | Pairs |
Material core insulation: | Other |
Specification core insulation: | Polyethylene (PE) |
Core identification: | Colour |
Screen over stranding element: | None |
Stranding: | Bundle |
Screen over stranding: | Foil |
Longitudinal water blocking cable: | no |
Radial water blocking cable: | no |
Suitable for underground installation: | no |
Protective sheath: | Other |
Material outer sheath: | Other |
Specification material outer sheath: | Other |
Colour outer sheath: | Blue |
Reaction-to-fire according to EN 13501-6: Class: | Dca |
Reaction-to-fire according to EN 13501-6: Smoke production: | s2 |
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | d2 |
Reaction-to-fire according to EN 13501-6: Acidity: | a2 |
Halogen free according to EN IEC 60754-2: | no |
Low smoke according to EN IEC 61034-2: | no |
Oil resistant according to EN IEC 60811-404: | no |
Outer diameter approx.: | 7.3 mm |
Min. permitted bending radius, moving application with forced guidance: | 80 mm |
Min. permitted bending radius, moving application/free movement: | 80 mm |
Min. permitted bending radius, stationary application/permanent installation: | 50 mm |
Permitted cable outer temperature during assembling/handling: | 0 - 50 °C |
Permitted cable outer temperature after assembling without vibration: | -20 - 70 °C |
Category: | 6 |
NVP value: | 70 % |
UV resistant: | no |
Conductor material: | Copper |
AWG size: | 23 |
Core identification according to HD 308 S2: | no |
Armouring/reinforcement: | Wire |
Material armouring: | Steel |
Cable geometry: | Round |
Certified for shipboard application: | no |
Suitable as telephone cable: | yes |
Suitable as computer data cable: | yes |
Suitable as signalling cable: | no |
Weight: | 57 kg/km |
