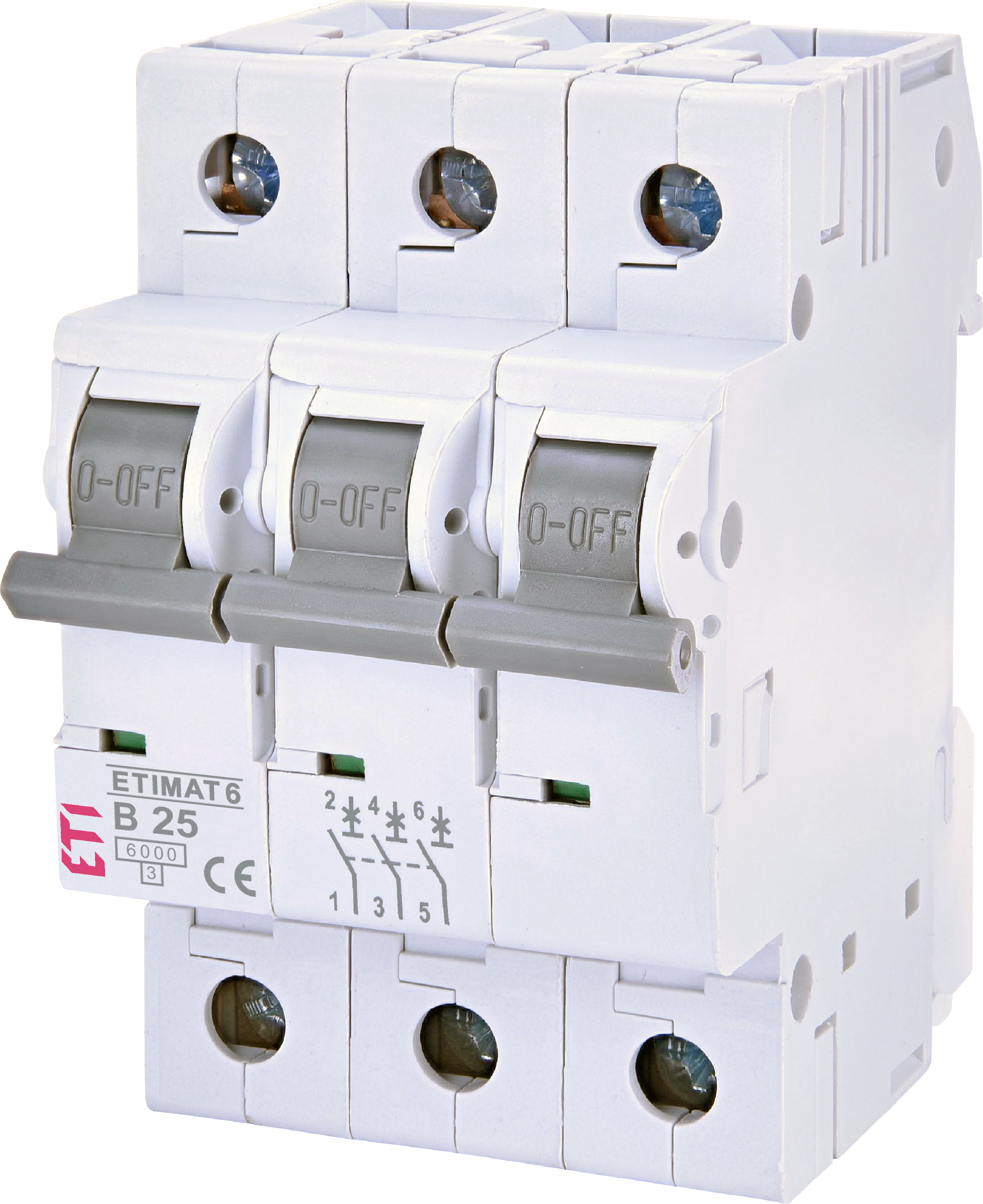

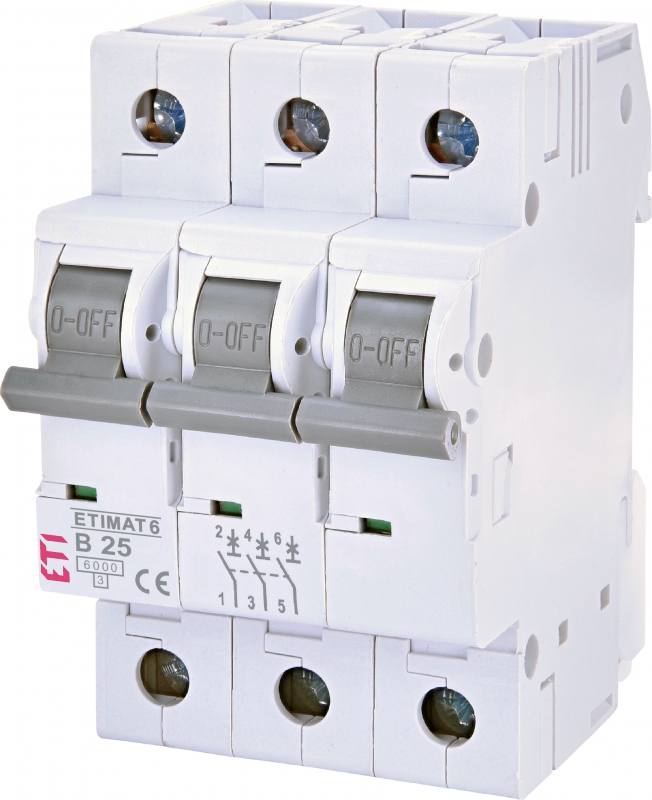

ETIMAT 6 3p B25 Wyłącznik nadprądowy
| Information | Value |
|---|---|
| Supplier | ETI-POLAM Sp. z o.o. |
| Series | ASTI - ETIMAT 6 |
| Symbol | 002115518 |
| GTIN(EAN) | 3838895258988 |
| Price unit | piece |
| Catalog price | 108,03 zł (87,83 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 342 g |
| ETIM class: | Miniature circuit breaker (MCB) |
| Release characteristic: | B |
| Number of poles (total): | 3 |
| Number of protected poles: | 3 |
| Rated current: | 25 A |
| Rated insulation voltage Ui: | 500 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 6 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 6 kA |
| Voltage type: | Other |
| Frequency: | 50 - 60 Hz |
| Current limiting class: | 3 |
| Over voltage category: | 3 |
| Pollution degree: | 3 |
| Additional equipment possible: | yes |
| Width in number of modular spacings: | 3 |
| Built-in depth: | 68 mm |
| Degree of protection (IP): | IP20 |
| Ambient temperature during operating: | -25 - 55 °C |
| Connectable conductor cross section multi-wired: | 1 - 25 mm² |
| Connectable conductor cross section solid-core: | 1 - 25 mm² |
Buy online
Buy / order
Wholesaler
Address
Distance
Available
Actions
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-03-01 11:10:35 |
| Files to download: | |
| External links: |
