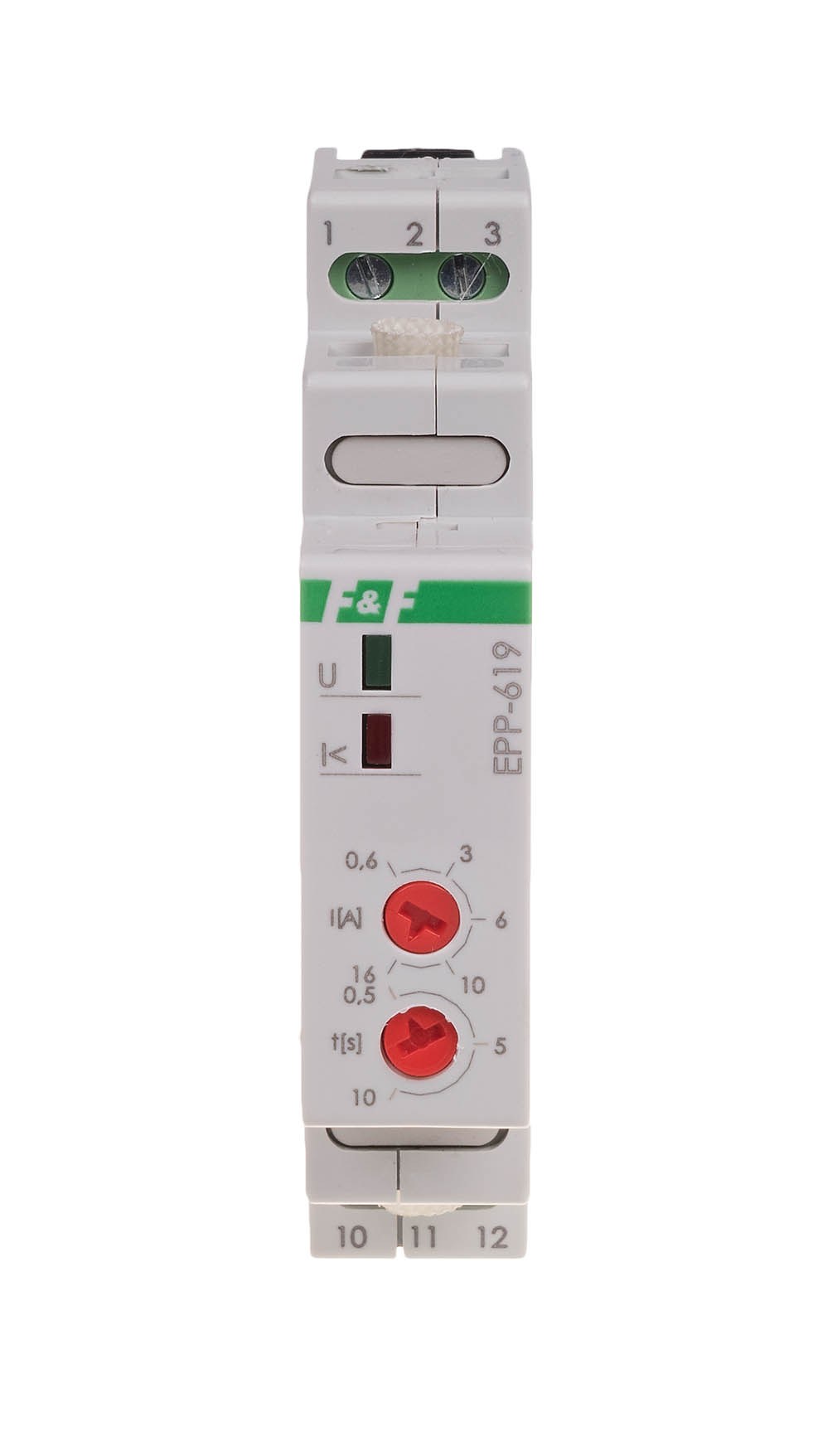

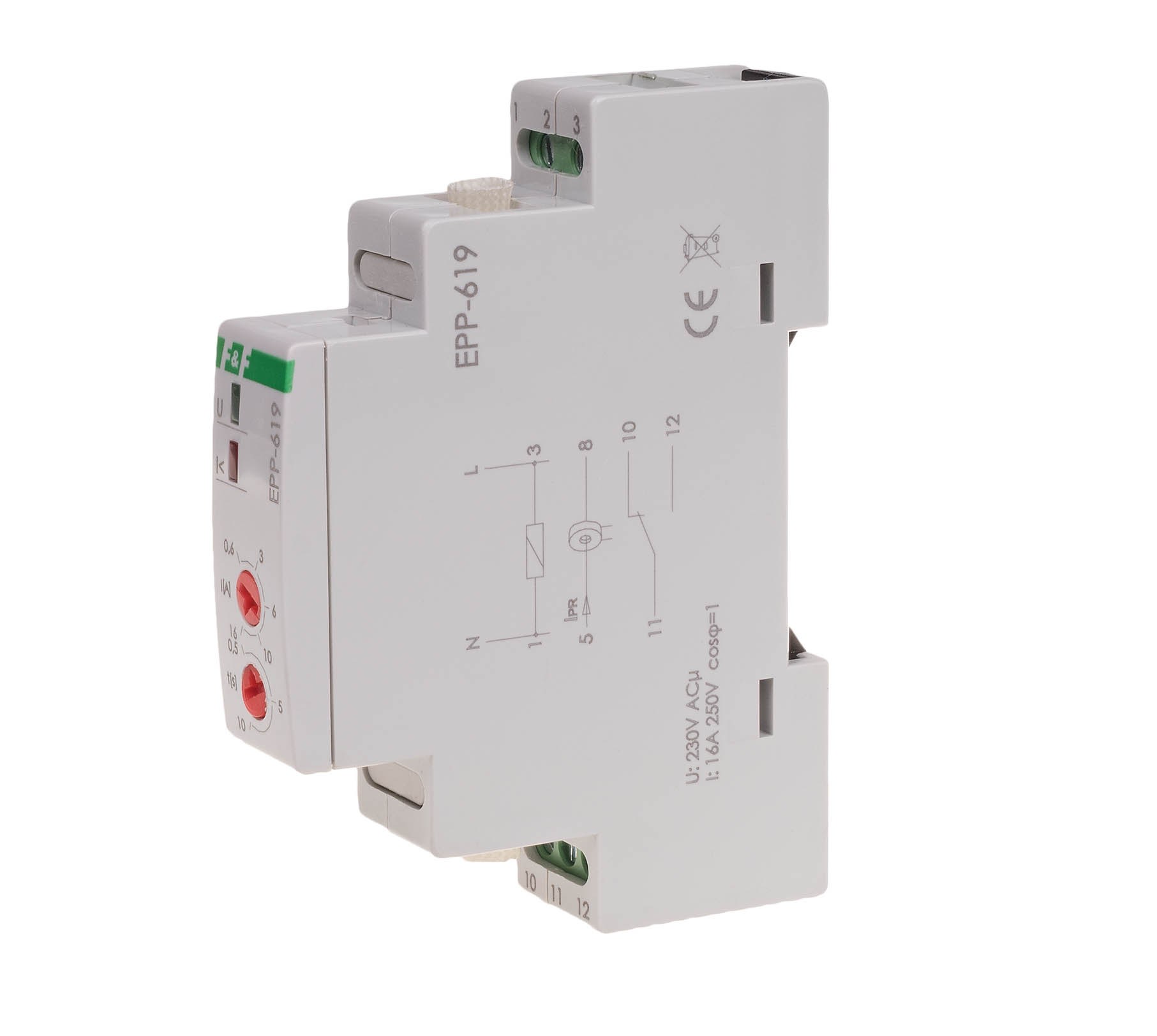

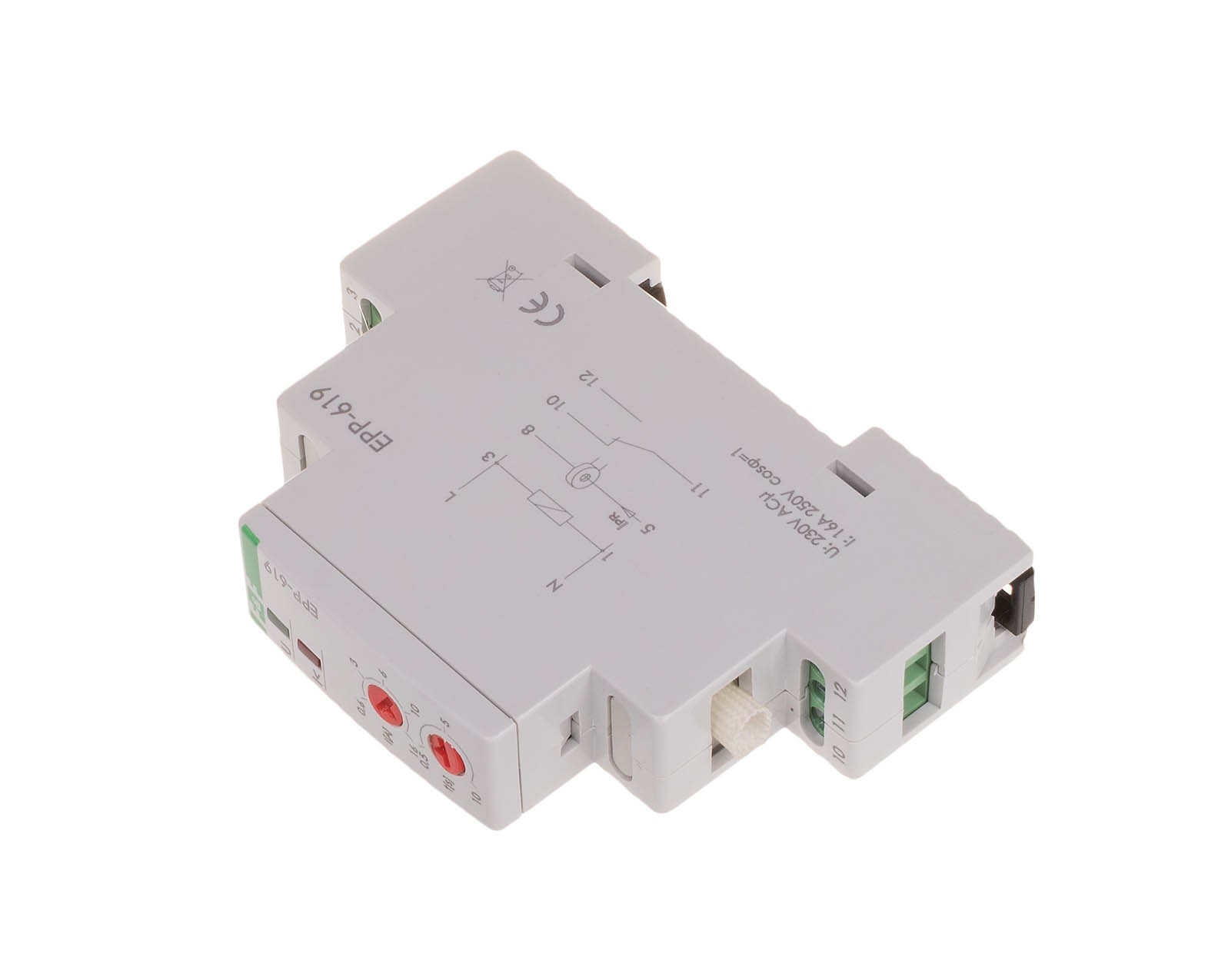

Przekaźnik prądowy z kanałem przelotowym, styki: 1P, Imax=16A, montaż na szyne, 1 moduł
Information | Value |
---|---|
Supplier | F&F Filipowski Spółka Komandytowa |
Symbol | EPP-619 |
GTIN(EAN) | 5908312593928 |
Price unit | piece |
Catalog price | 249,69 zł (203,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Uchwyć Czas !
Dokonaj zakupu produktów marki F&F Filipowski na kwotę ponad 5000 tys. brutto, a w prezencie otrzymasz kamerę sportową marki GOTZE& JENSEN S Line !
-
Kupuj produkty F&F i zgarniaj nagrody na majówkę
Zrób jednorazowe zamówienia B2B na produkty marki F&F i odbierz koc piknikowy lub koc piknikowy
Description:
Napięcie zasilania 230 V AC Element wykonawczy przekaźnik Maksymalny prąd obciążenia 16 A Konfiguracja styków 1 × NO/NC Separacja styku TAK Czas powrotu 0,5 s Histereza powrotu zasilania 10% Średnica otworu przelotowego 4 mm Prąd obwodu mierzonego Im ograniczony przekrojem przewodu przewlekanego (maks. Ø: 4 mm) Prąd przełączenia - regulowany 0,6÷16 A Czas zadziałania - regulowany 0,5÷10 s Przyłącze zaciski śrubowe 2,5 mm² Moment dokręcający 0,4 Nm Pobór mocy 0,4 W Temperatura pracy -25 ÷ 50 °C Wymiary 1 moduł (18 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
Information | Value |
---|---|
Gross weight: | 75 g |
ETIM class: | Current monitoring relay |
Type of electric connection: | Screw connection |
With detachable clamps: | no |
Current measuring range: | 0.6 - 16 A |
Single-phase under current possible: | no |
Three-phase under current possible: | no |
Single-phase overcurrent possible: | yes |
Three-phase overcurrent possible: | no |
Single-phase hysteresis possible: | yes |
Three-phase hysteresis possible: | no |
Contains function DC-voltage under current: | no |
Contains function DC-voltage overcurrent: | no |
Function DC-current hysteresis: | no |
Number of contacts as normally closed contact: | 0 |
Number of contacts as normally open contact: | 0 |
Number of contacts as change-over contact: | 1 |
Width: | 18 mm |
Height: | 90 mm |
Depth: | 65 mm |
