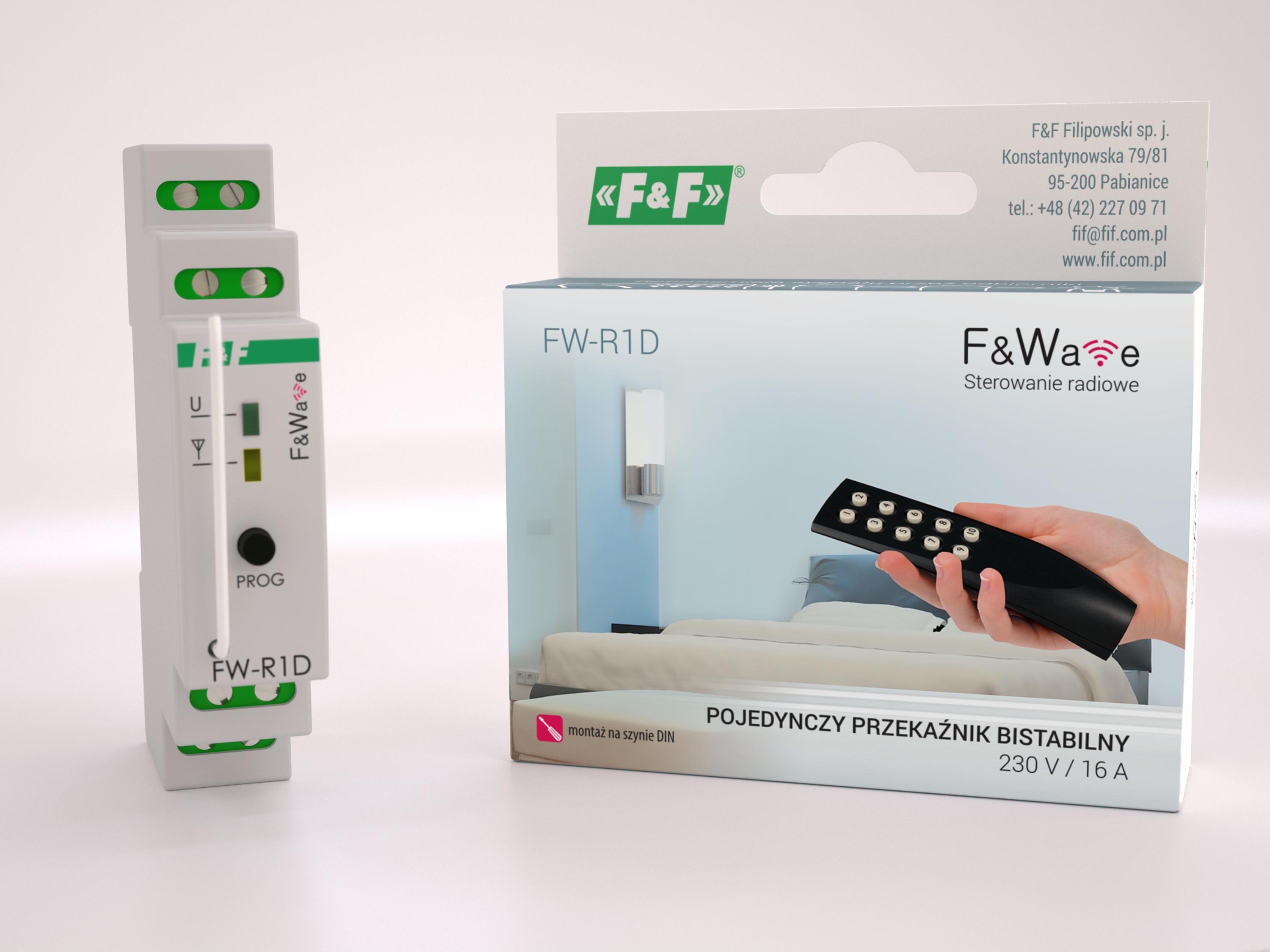

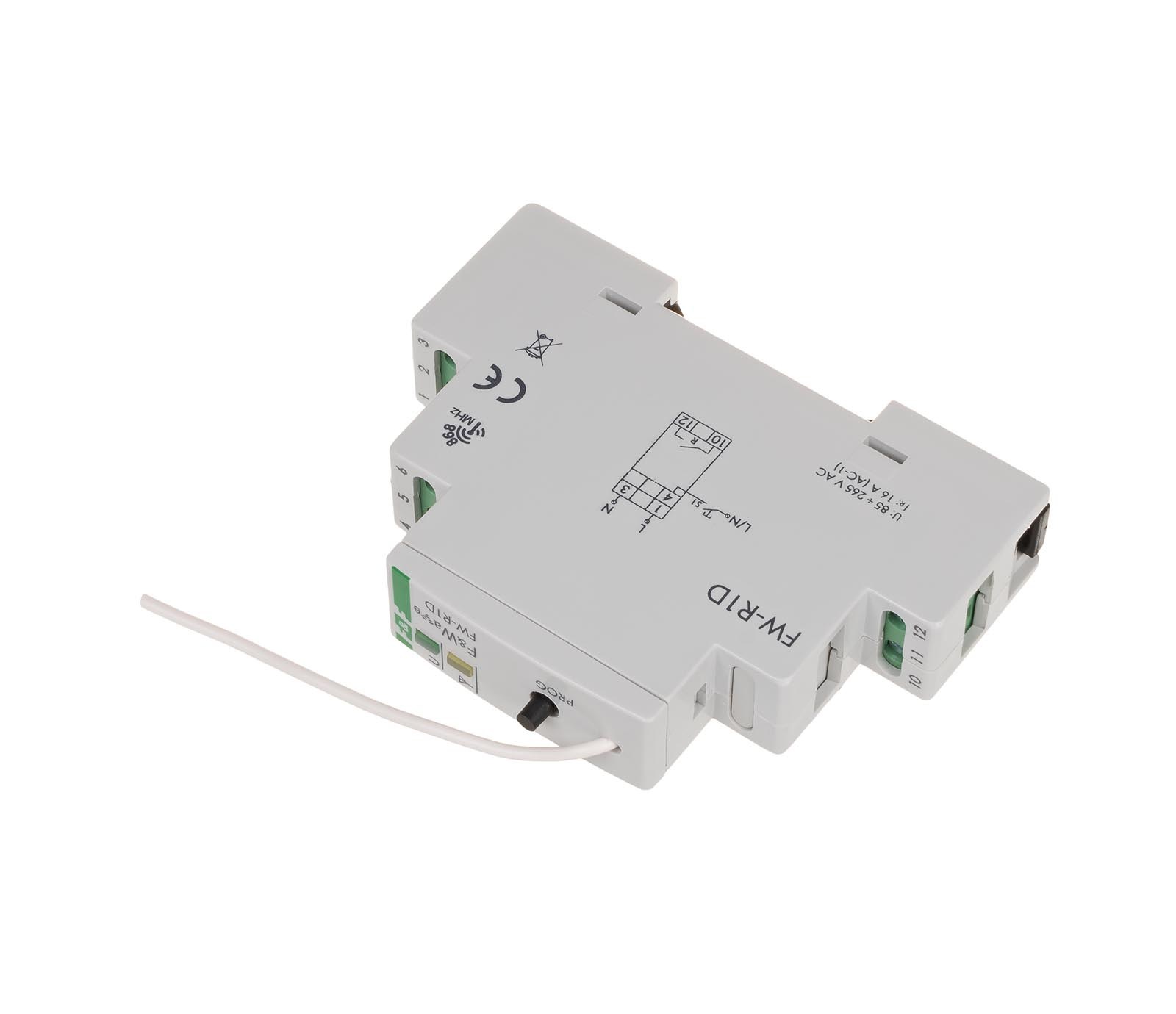

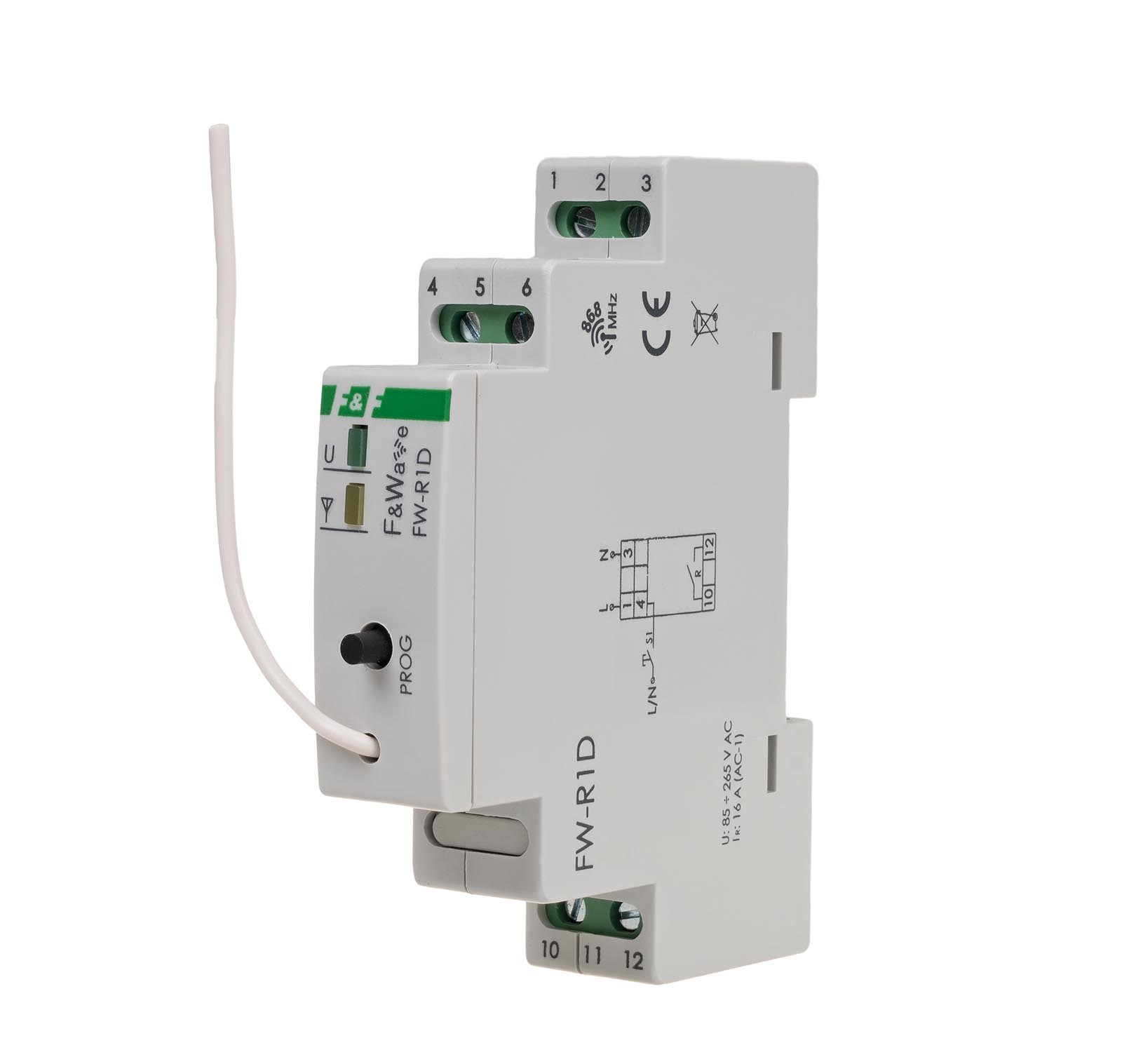

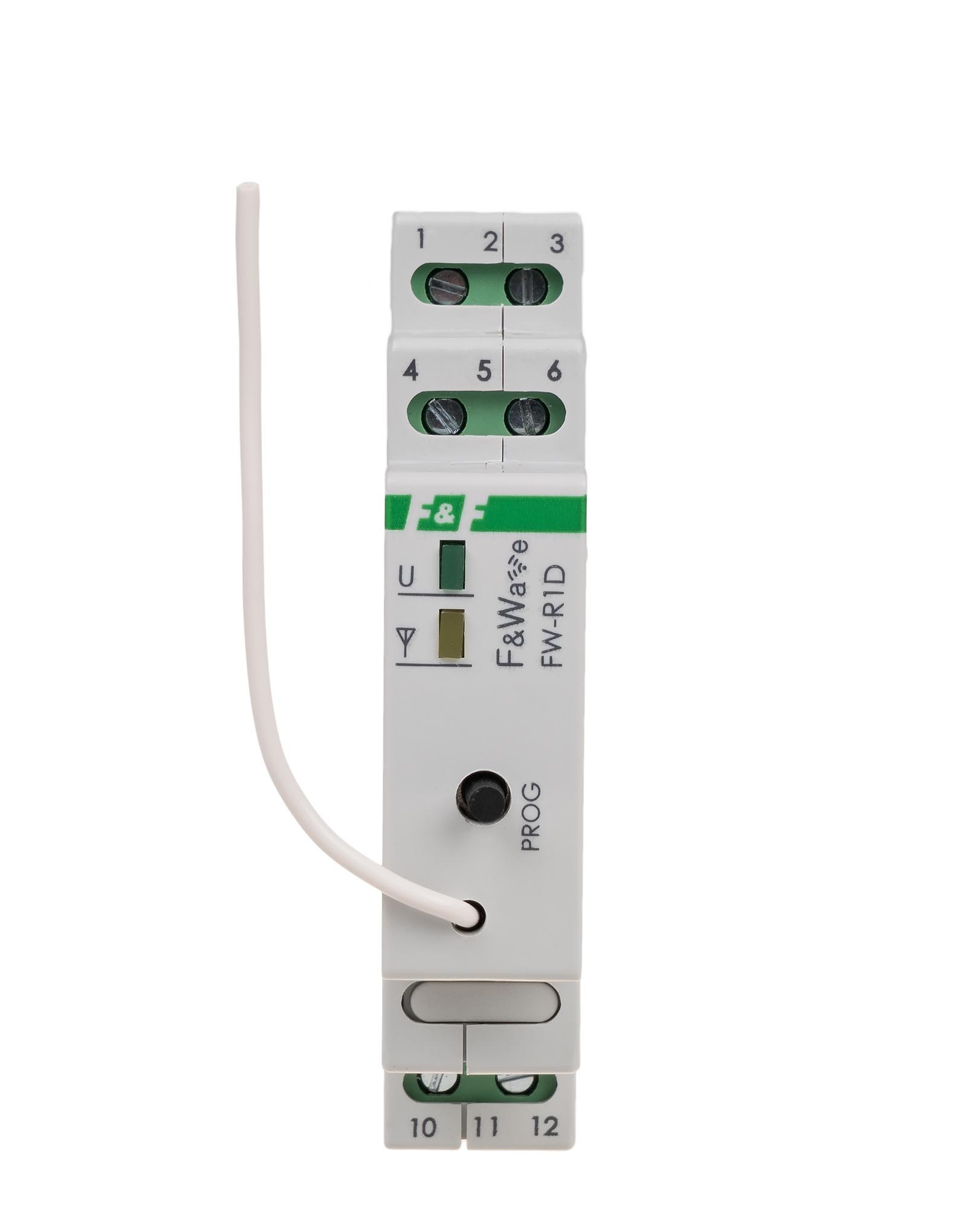

Radiowy pojedyńczy przekaźnik bistabilny - montaż DIN 85÷265V AC/DC
Information | Value |
---|---|
Supplier | F&F Filipowski Spółka Komandytowa |
Series | FW |
Symbol | FW-R1D |
GTIN(EAN) | 5908312599241 |
Price unit | piece |
Catalog price | 226,32 zł (184,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Uchwyć Czas !
Dokonaj zakupu produktów marki F&F Filipowski na kwotę ponad 5000 tys. brutto, a w prezencie otrzymasz kamerę sportową marki GOTZE& JENSEN S Line !
-
Kupuj produkty F&F i zgarniaj nagrody na majówkę
Zrób jednorazowe zamówienia B2B na produkty marki F&F i odbierz koc piknikowy lub koc piknikowy
Description:
Napięcie zasilania 85÷265 V AC/DC Liczba kanałów 1 Funkcja przekaźnik bistabilny Wejścia sterownicze 1 Sygnał sterujący L lub N Wejście sterujące 85÷265 V AC/DC; max. 1mA Obciążalność wyjścia (AC-1) 16 A / 250 V Element wykonawczy przekaźnik Częstotliwość radia 868 MHz Przeciążalność wyjścia 160 A / 20 ms Przyłącze zaciski śrubowe 2,5 mm² Moment dokręcający 0,4 Nm Pobór mocy czuwanie/praca 0,25 W / 0,6 W Temperatura pracy -25 ÷ 65°C Wymiary 1 moduł (18 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
Information | Value |
---|---|
ETIM class: | Radio receiver |
Suitable for dimmer: | no |
Suitable for pulse button: | yes |
Suitable for venetian shutter switch: | no |
Suitable for venetian-/roller shutter switch: | no |
In housing: | yes |
Current supply: | 230 V AC |
Push button mode: | yes |
Number of relays: | 1 |
Mounting method: | DRA (DIN-rail adapter) |
Material: | Plastic |
Material quality: | Thermoplastic |
Halogen free: | yes |
Surface protection: | Untreated |
Type of fastening: | Mounting with screw |
Suitable for degree of protection (IP): | IP20 |
Radio frequency: | 868 MHz |
Rolling code system: | yes |
