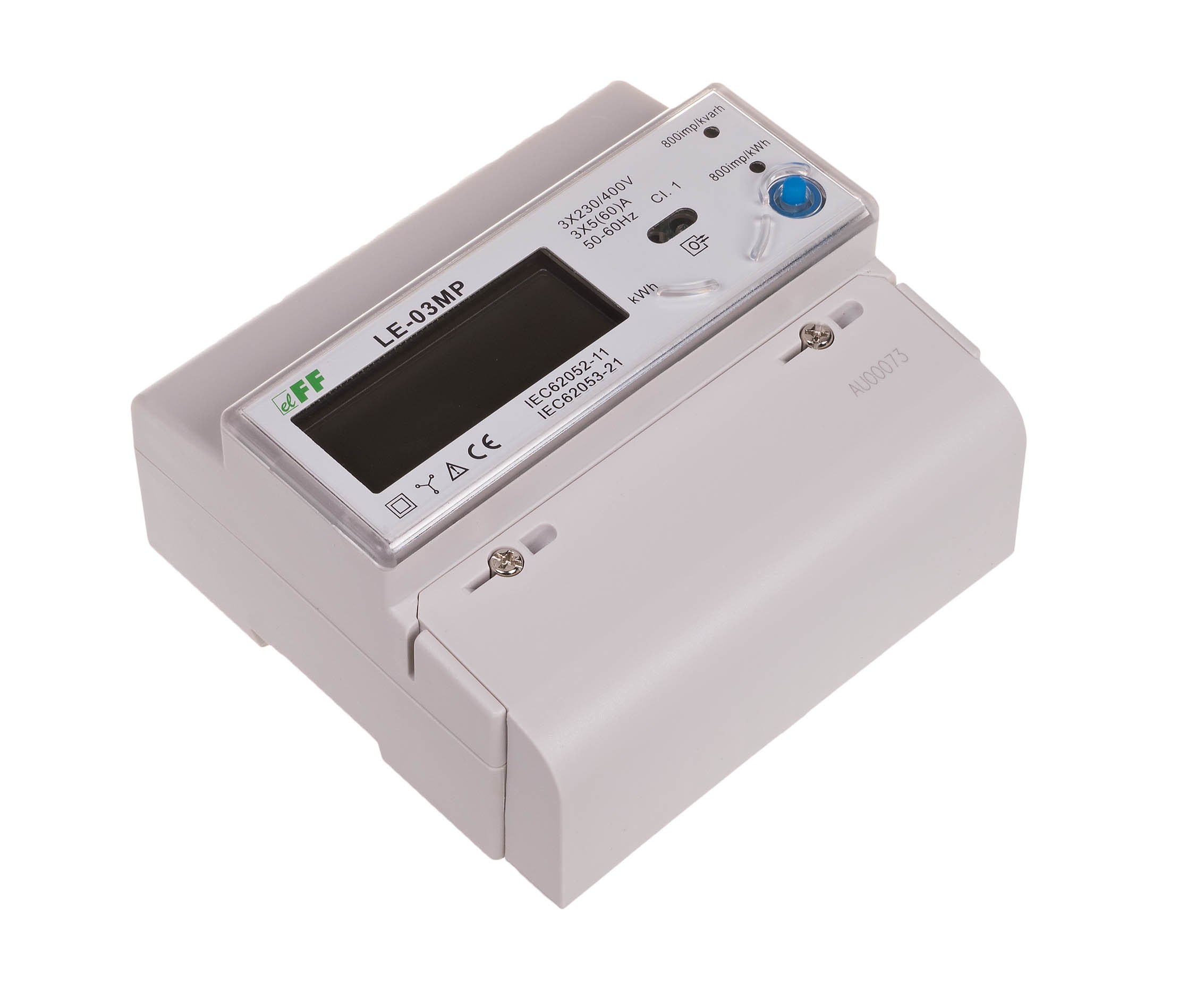

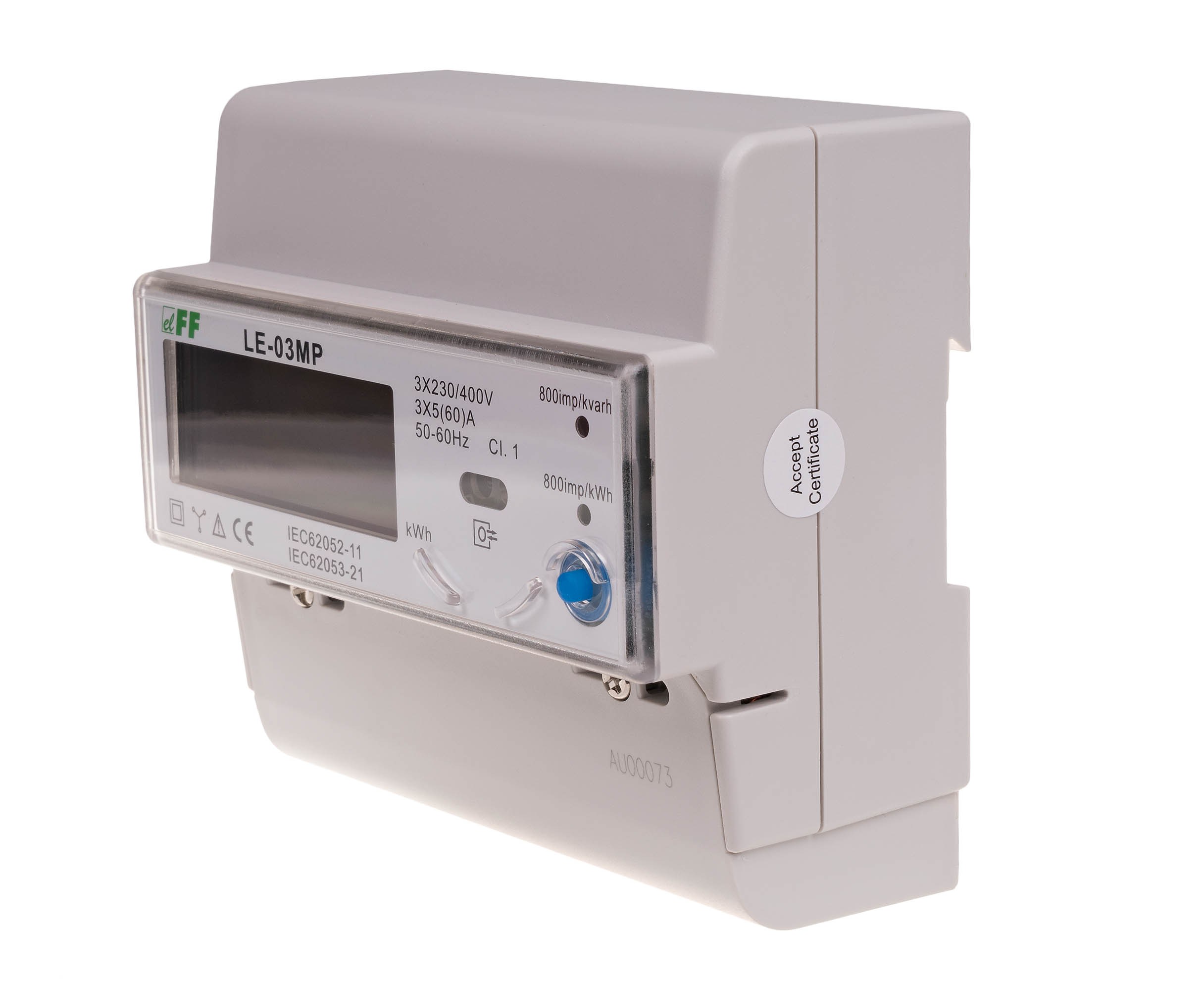

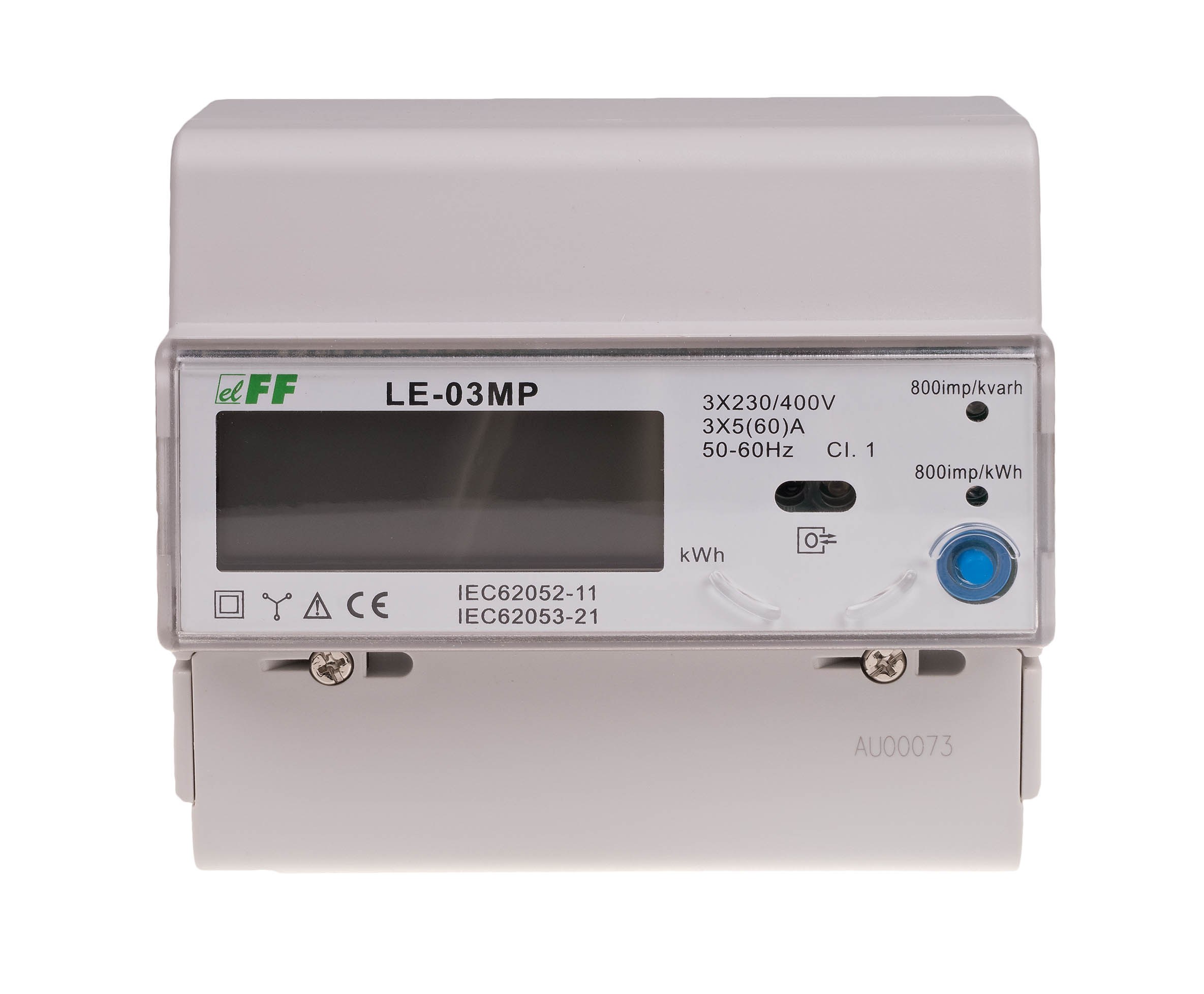

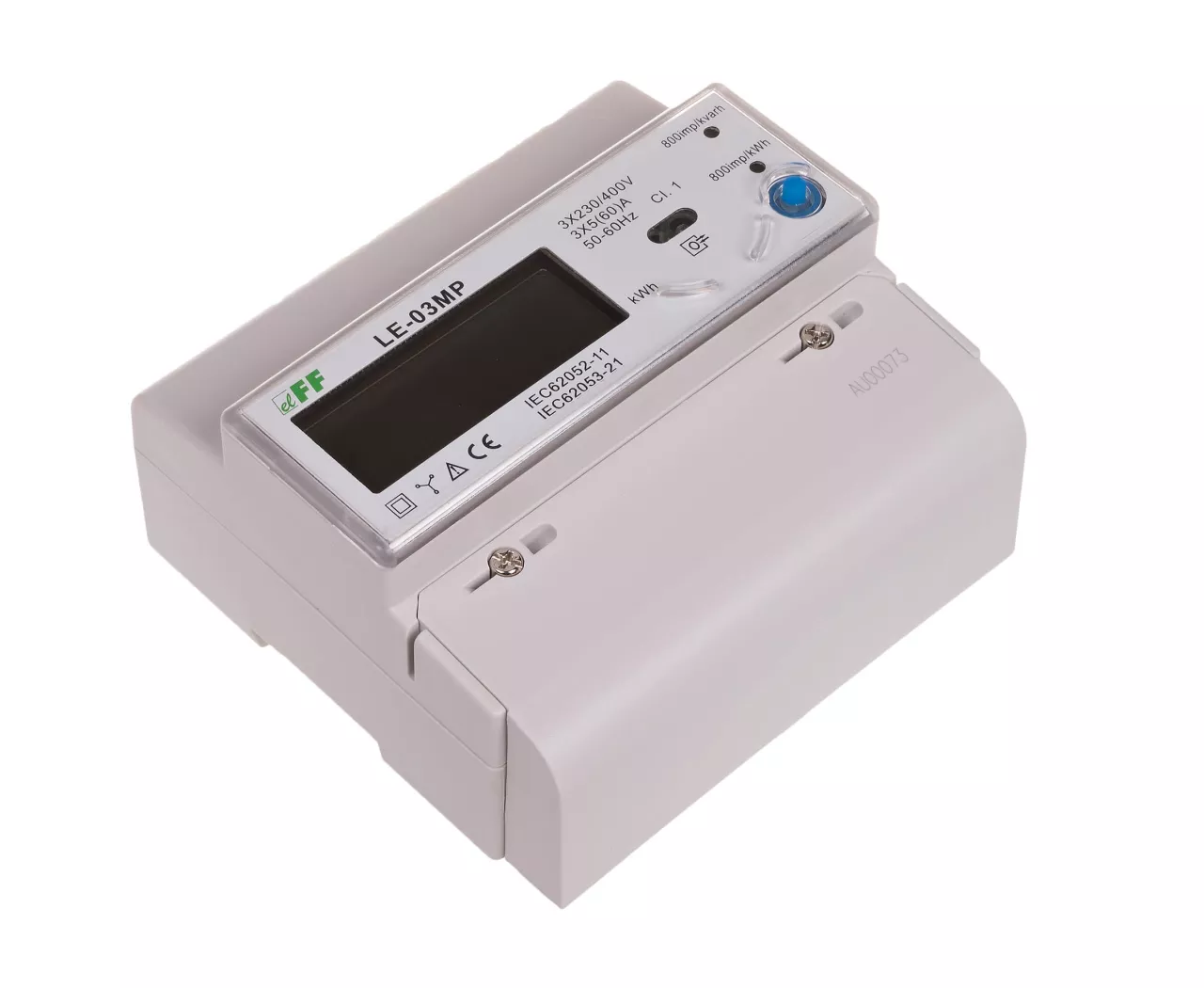

Licznik energii elektrycznej MODBUS RS-485 -trójfazowy LE-03MP
Information | Value |
---|---|
Supplier | F&F Filipowski Spółka Komandytowa |
Series | LE |
Symbol | LE-03MP |
GTIN(EAN) | 5908312597216 |
Price unit | piece |
Catalog price | 774,90 zł (630,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Typ trójfazowy Porty RS-485 Protokół komunikacyjny MODBUS RTU Napięcie odniesienia 3 x 400 V Prąd bazowy 5 A Prąd maksymalny 60 A Minimalny prąd mierzony 0,02 A Dokładność pomiaru zgodnie z IEC61036 klasa 1 Pobór własny licznika 10 VA; 1,5 W Zakres wskazań liczydła 0÷99999,99 kWh Stała licznika (1,25 Wh/imp) 800 imp/kWh Sygnalizacja sczytywania 2 x LED czerwona Stała licznika kvarh (1,25 varh/imp) 800 imp/kvarh Wyjście impulsowe kWh/kvarh otwarty kolektor Napięcie podłączenia kWh/kvarh maks. 30 V DC Prąd podłączenia kWh/kvarh maks. 27 mA Stała kWh/kvarh (1,25Wh/imp) 800imp/kWh Czas impulsu kWh/kvarh 10 ms Przyłącze zaciski śrubowe 16 mm² Temperatura pracy -20÷55°C Wymiary 7 modułów (122 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
Information | Value |
---|---|
Gross weight: | 696 g |
ETIM class: | Kilowatt-hour meter |
Type of meter: | Electronic |
Nominal current (In): | 5 A |
Max. current (Imax): | 60 A |
Accuracy class: | B |
Pole type: | Three conductor |
Model: | Direct measurement |
Energy type: | Effective power and blind power |
Suitable for: | Purchase |
Tariff type: | One-tariff |
Measurement type load profile: | no |
Escapement mechanism: | yes |
Calibrated: | no |
Approval: | Domestic |
Pulse output: | Electrical |
Pulse type: | S0 |
Type of indication: | Digital |
Width in number of modular spacings: | 7 |
Type of interface: | RS-485 |
EEC40 signature: | no |
With lock code: | no |
Degree of protection (IP): | IP20 |
