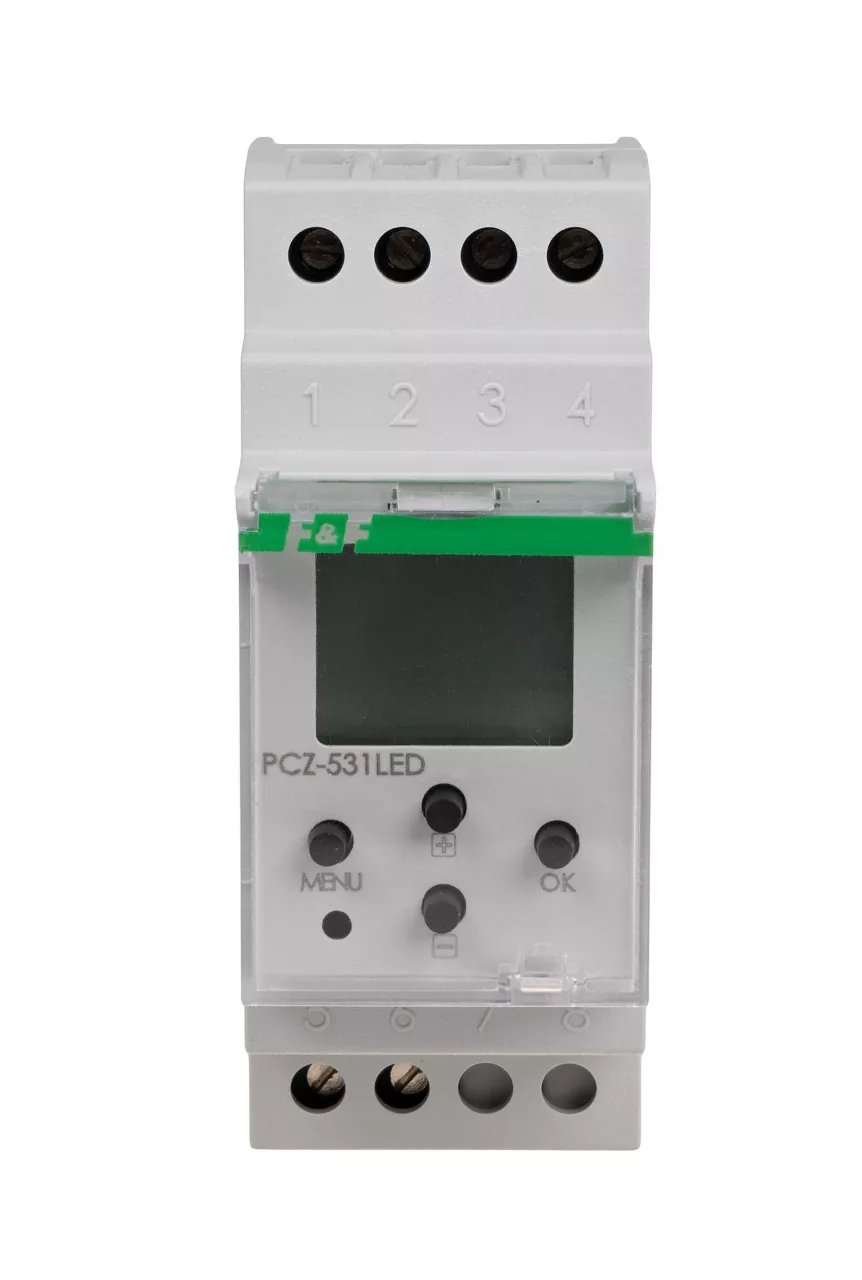

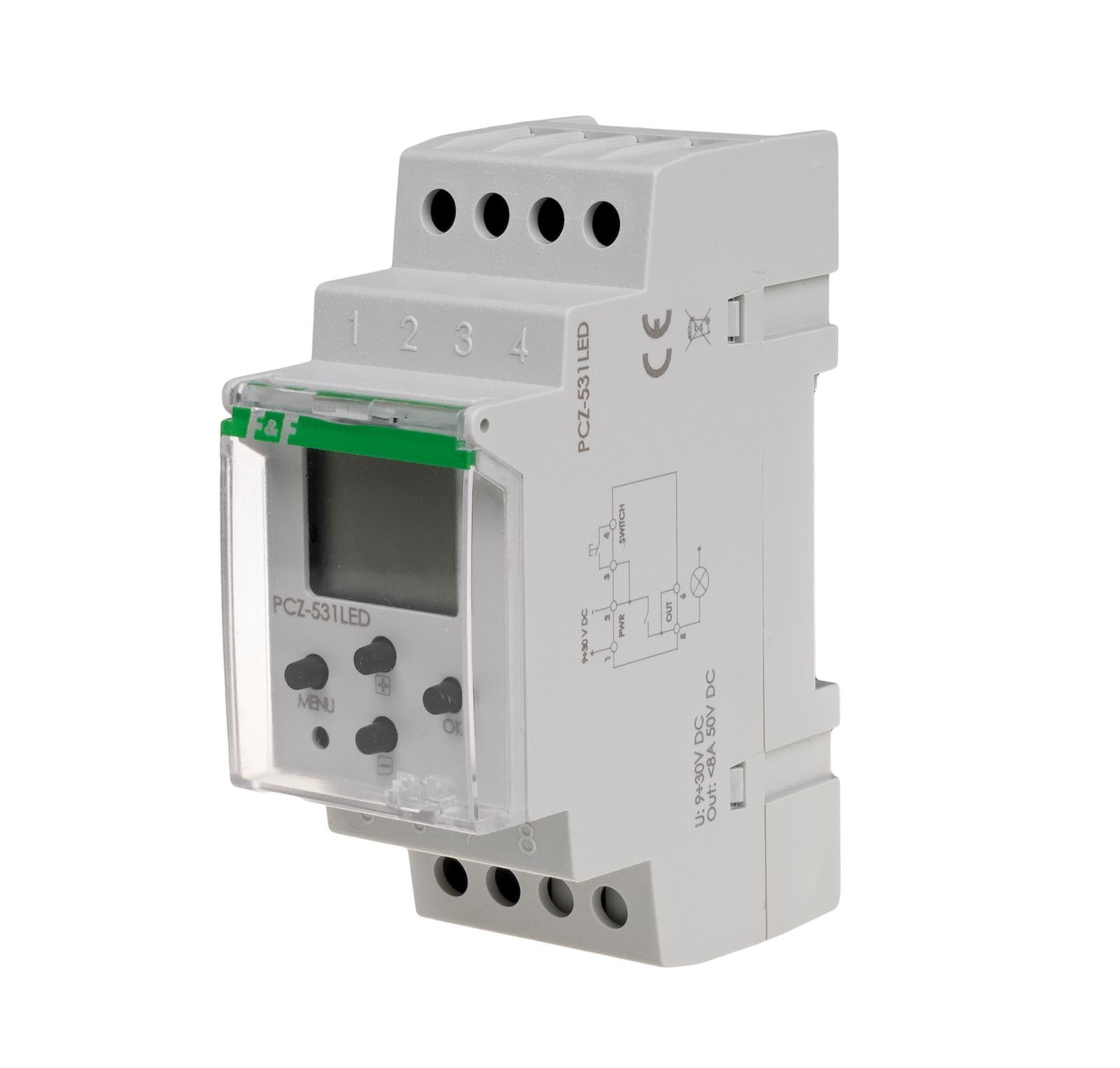

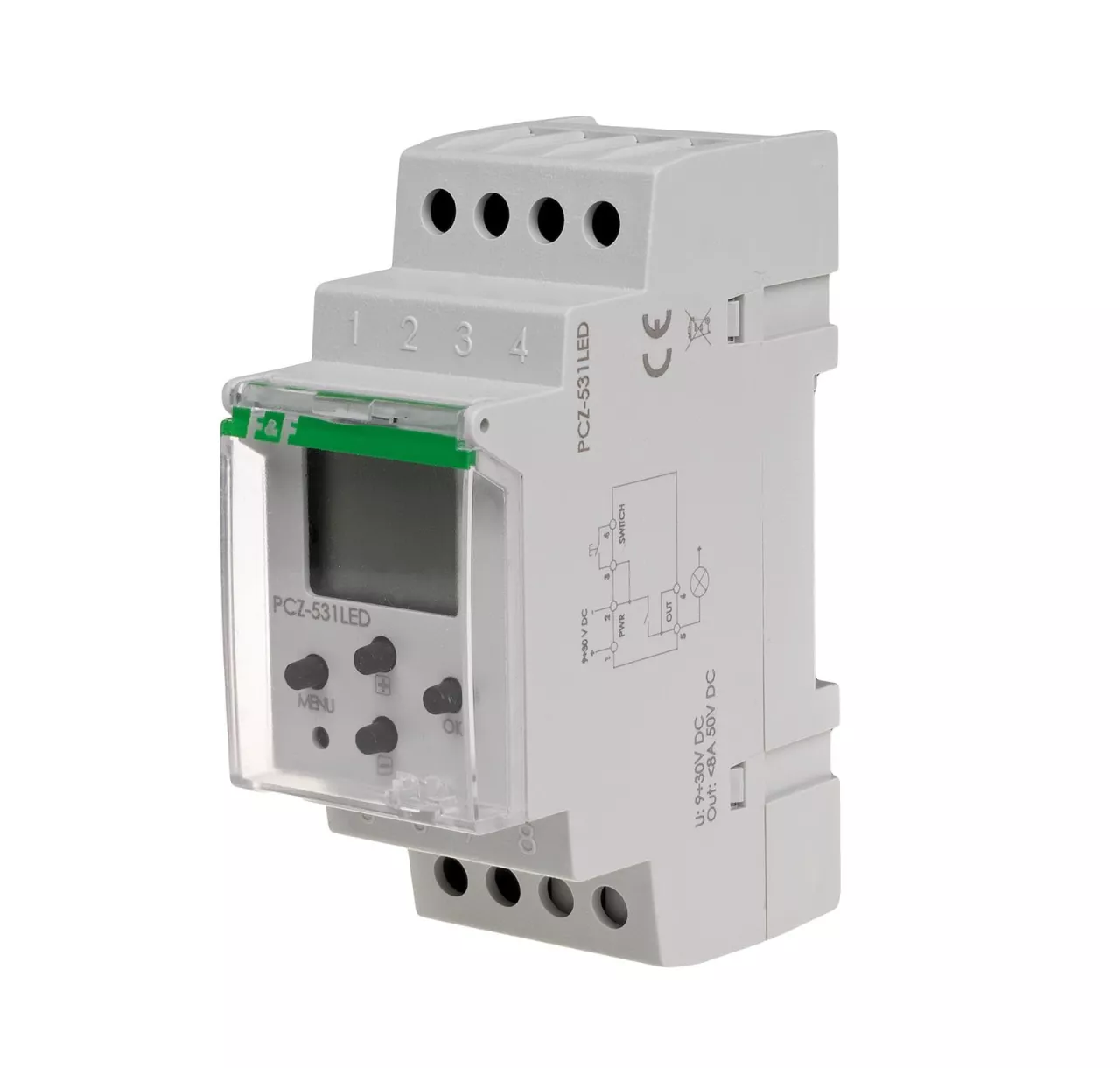

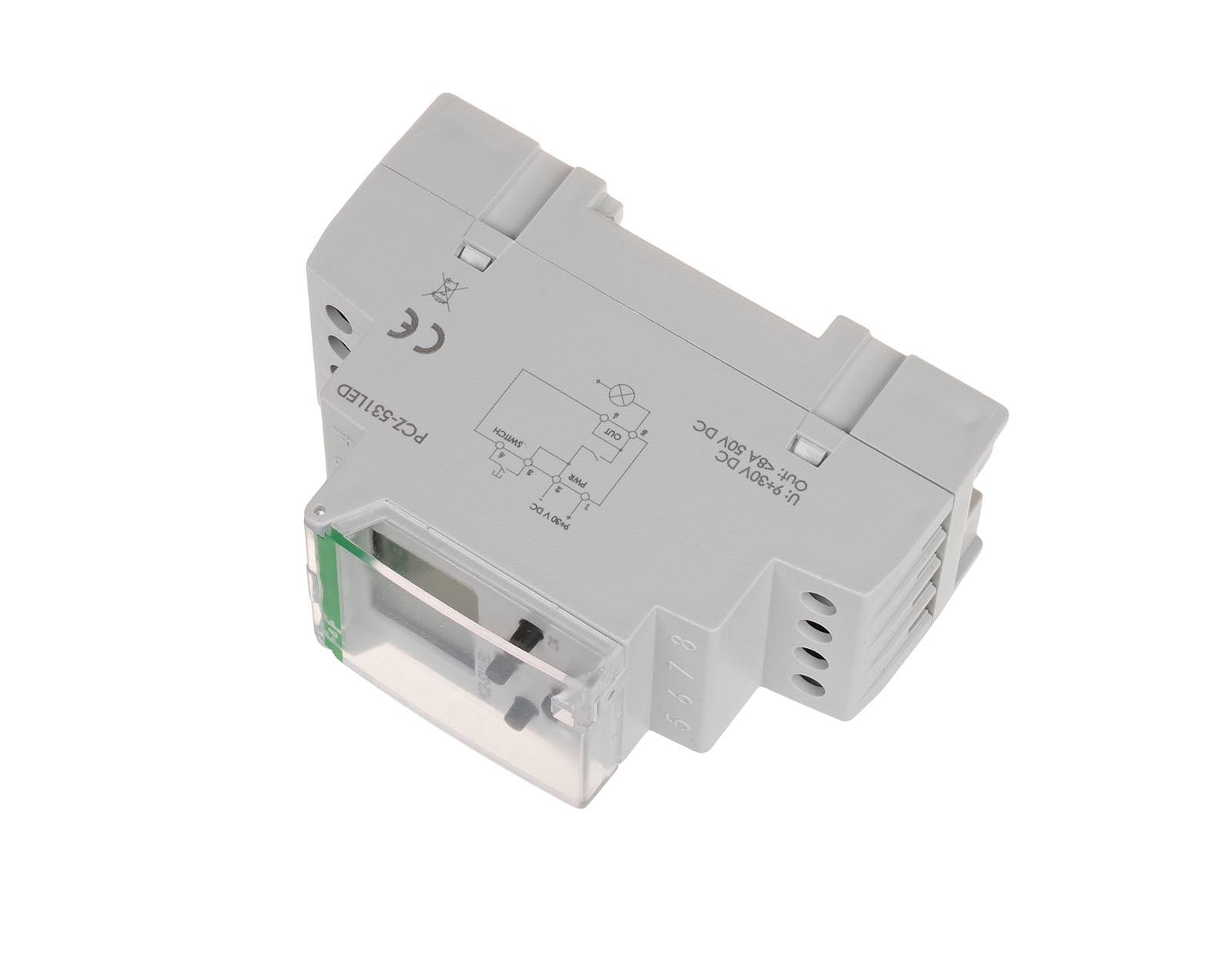

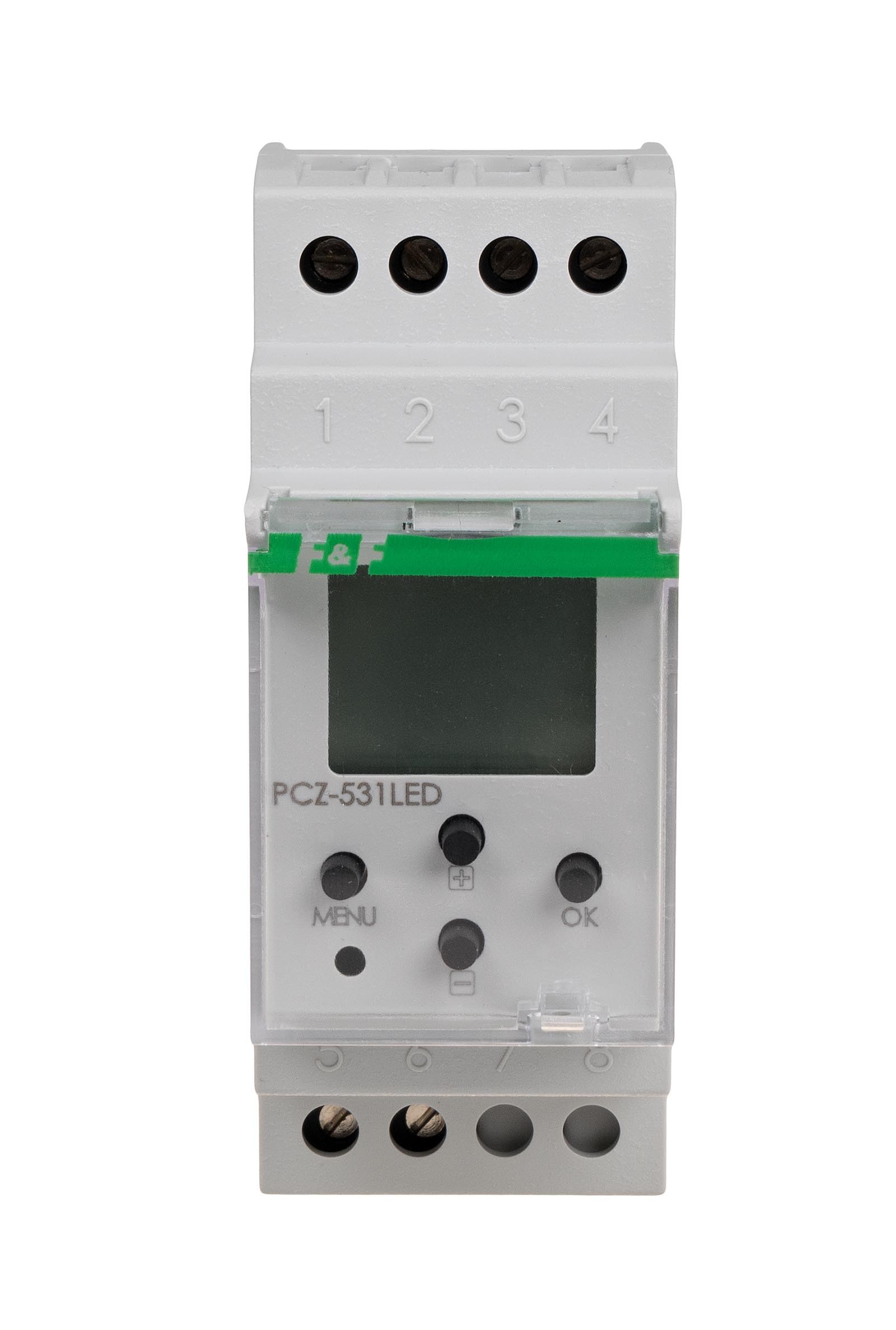

Zegar sterujący programowalny tygodniowy z wyjściem sterującym LED
Information | Value |
---|---|
Supplier | F&F Filipowski Spółka Komandytowa |
Series | PCZ |
Symbol | PCZ-531LED |
GTIN(EAN) | 5902431670133 |
Price unit | piece |
Catalog price | 313,65 zł (255,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Uchwyć Czas !
Dokonaj zakupu produktów marki F&F Filipowski na kwotę ponad 5000 tys. brutto, a w prezencie otrzymasz kamerę sportową marki GOTZE& JENSEN S Line !
-
Kupuj produkty F&F i zgarniaj nagrody na majówkę
Zrób jednorazowe zamówienia B2B na produkty marki F&F i odbierz koc piknikowy lub koc piknikowy
Description:
Typ programowalny tygodniowy Napięcie zasilania 9÷30 V DC Element wykonawczy tranzystor Maksymalny prąd obciążenia 8 A 30 V DC Wejście bezpotencjałowe (wyzwalanie 0 V) Czas podtrzymania pracy zegara 6 lat Typ baterii 2032 (litowa) Podtrzymanie pracy wyświetlacza brak Dokładność wskazań zegara 1 s Błąd czasu ±1 s / 24 h Dokładność nastawy czasu programu 1 min. Liczba komórek pamięci programu 480 Przyłącze zaciski śrubowe 4,0 mm² Moment dokręcający 0,5 Nm Pobór mocy 1,5 W Temperatura pracy -25 ÷ 50 °C Wymiary 2 moduły (35 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
Information | Value |
---|---|
Gross weight: | 110 g |
ETIM class: | Digital time switch for distribution board |
Mounting method: | DIN rail |
Number of channels: | 1 |
Supply voltage: | 9 - 30 V |
Voltage type (supply voltage): | DC |
Accuracy per day: | 1 s |
External programming: | no |
With memory card: | no |
60 min program: | no |
24 h program: | yes |
Weekly program: | yes |
Annual program: | no |
Cycle program: | yes |
Astro program: | no |
Radio-controlled: | no |
Radio-controlled (DCF77): | no |
GPS (global positioning system): | no |
Contact type: | Change-over contact (NO/NC) |
Shortest switching time channel 1: | 1 min |
Shortest switching time channel 2: | 1 min |
Number of memory locations: | 500 |
Automatic switching summer-/winter time: | yes |
Suitable for manual operation: | yes |
External pushbutton input: | yes |
Nominal switching current at 250 V AC: | 8 A |
Potential free switch contact: | yes |
Degree of protection (IP): | IP20 |
Width in number of modular spacings: | 2 |
Width: | 35 mm |
Height: | 90 mm |
Depth: | 65 mm |
