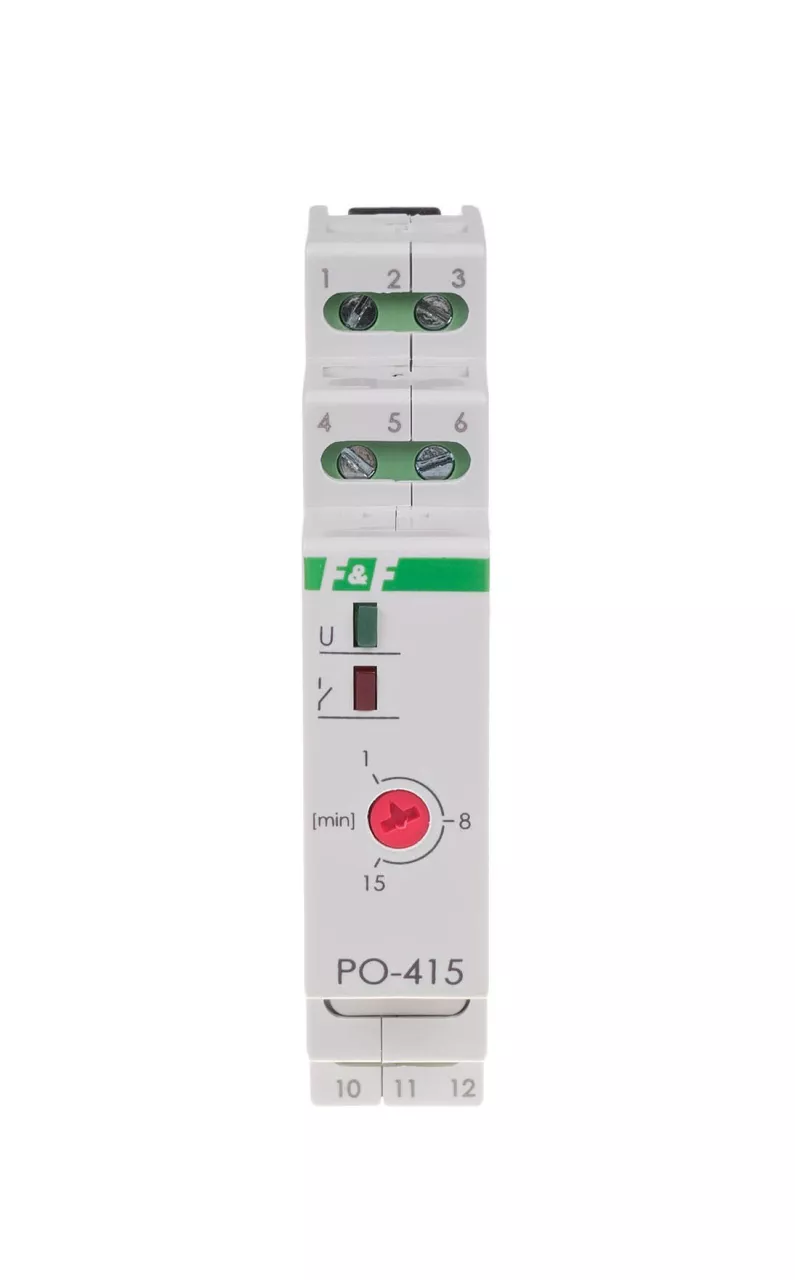

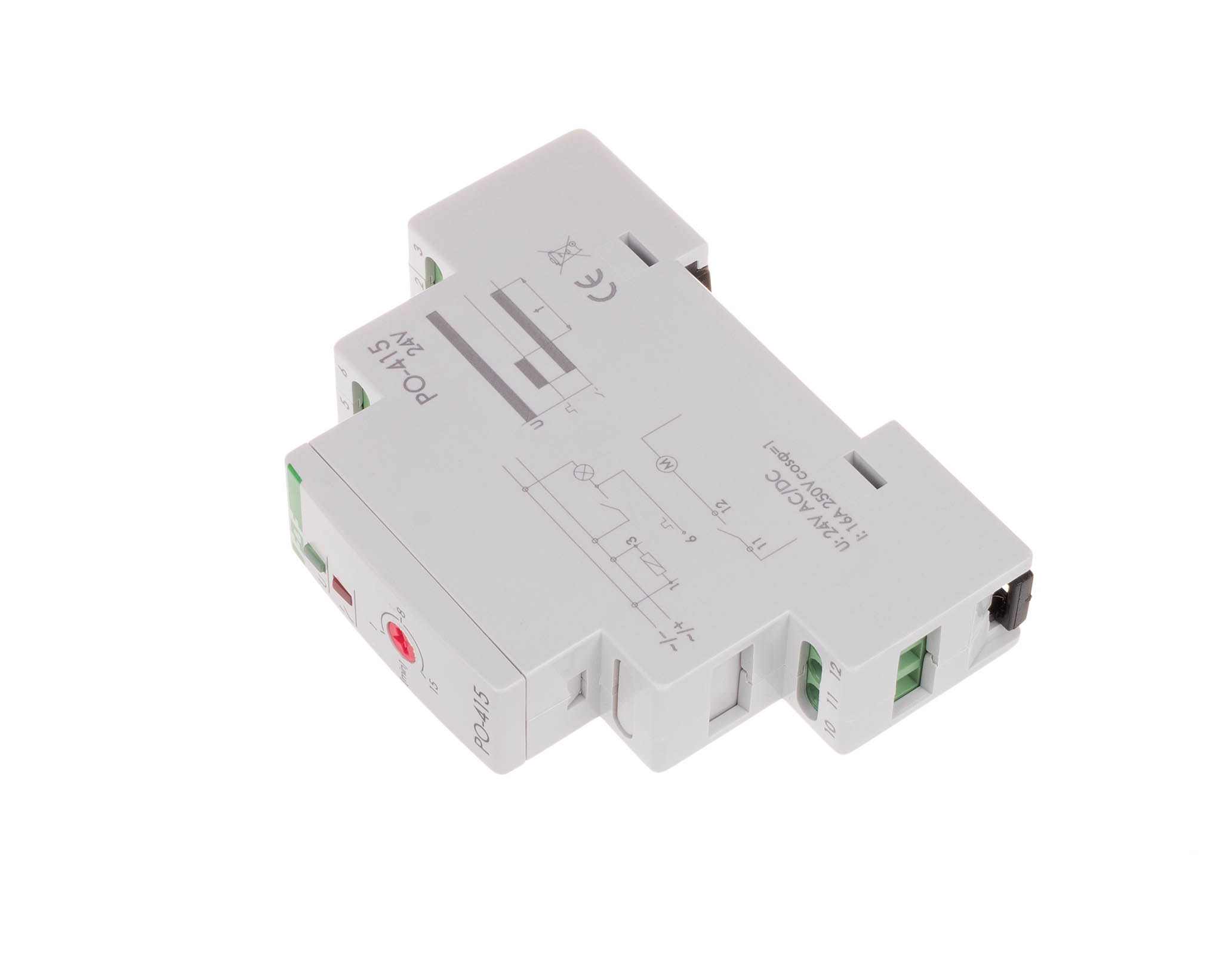

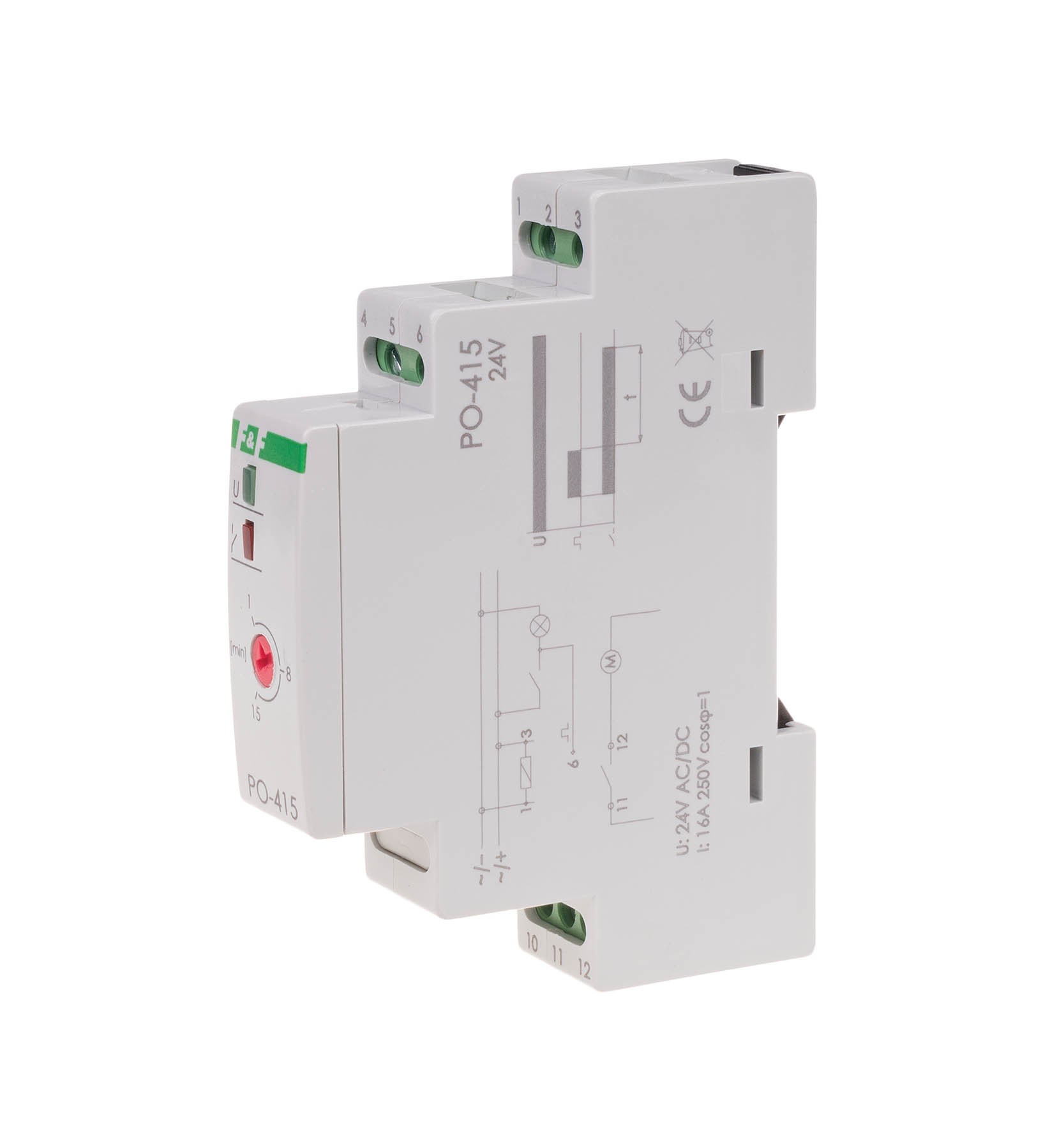

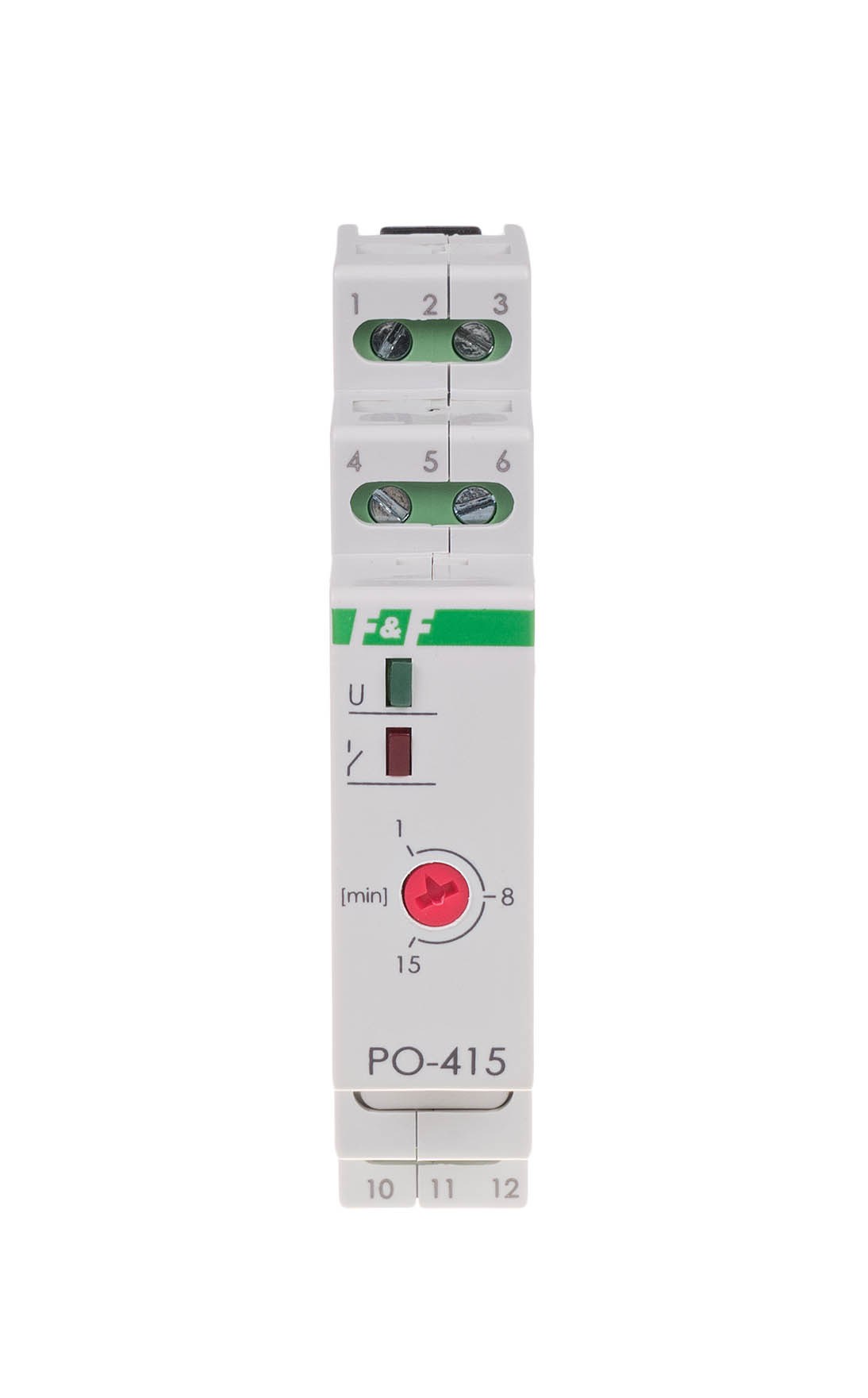

Przekaźnik czasowy z opóźnionym odpadaniem, montaż na szynie DIN, 24V, T=1-60s.
| Information | Value |
|---|---|
| Supplier | F&F Filipowski Spółka Komandytowa |
| Series | PC |
| Symbol | PO-415-1-60S |
| GTIN(EAN) | 5908312590316 |
| Price unit | piece |
| Catalog price | 163,59 zł (133,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja F&F - zegar astronomiczny
Za zakup asortymentu F&F na kwotę 2500 zł., zegar astronomiczny w cenie 3,69 zł.
-
Hager, Kontakt Simon, F&F - Razem na wiosnę - miksuj dowolnie
Kup produkty Hager, Kontakt Simon i F&F za kwotę 2000 zł netto i odbierz bezrękawnik
Description:
z opóźnionym odpadaniem ; zakres czasowy 1÷15m ; Un=24V AC/DC ; Io<16A ; montaż na szynie TH-36
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 68 g |
| ETIM class: | Timer relay |
| Type of electric connection: | Screw connection |
| Time range: | 1 - 60 s |
| Voltage type for actuating: | AC |
| Number of outputs, undelayed, normally open contact: | 1 |
| With semiconductor output: | no |
| Width: | 18 mm |
| Height: | 90 mm |
| Depth: | 65 mm |
| Complete with socket: | no |
| Suitable for DIN rail (top hat rail) mounting: | no |
| Suitable for front mounting: | no |
| Pluggable on auxiliary contact block: | no |
| Function delay-on energization: | no |
| Function delay on de-energization: | no |
| Function floating contact on energization: | no |
| Function floating contact on de-energization: | no |
| Function star-delta: | no |
| Function pulse shaping: | no |
| Function flashing, starting with pause, fixed time: | no |
| Function flashing, starting with pulse, fixed time: | no |
| Clock function, starting with pause, variable: | no |
| Clock function, starting with pulse, variable: | no |
| Remote operation possible: | no |
| Suitable as remote control: | no |
| Outputs, reversible delayed/undelayed: | no |
