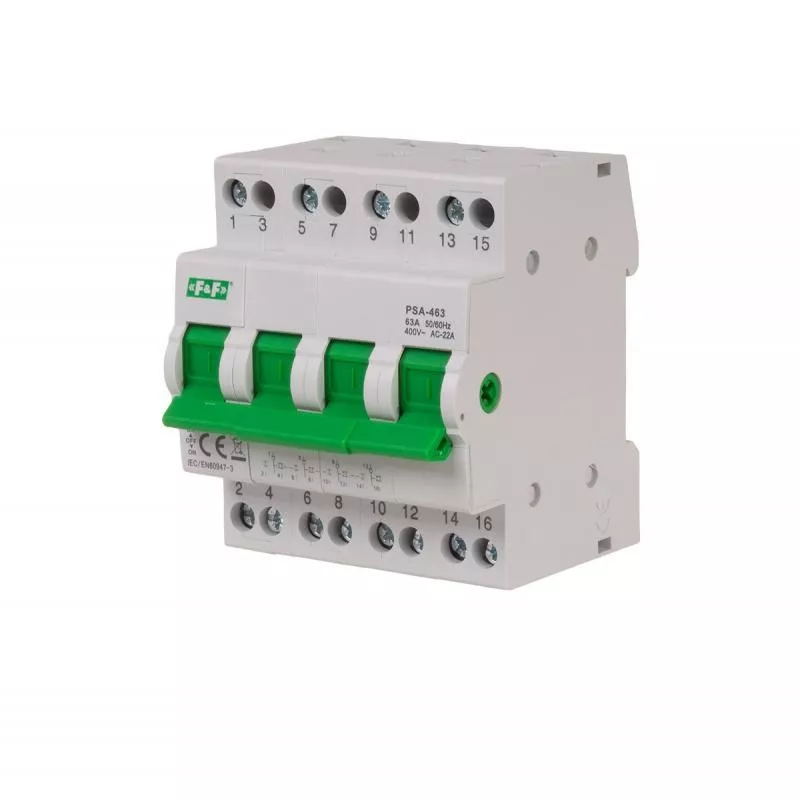

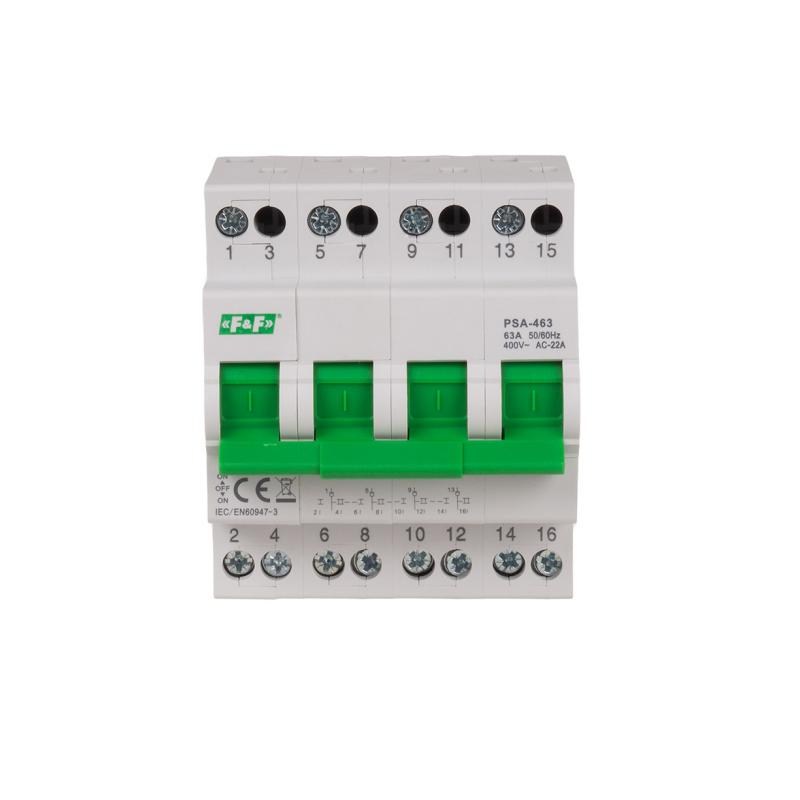

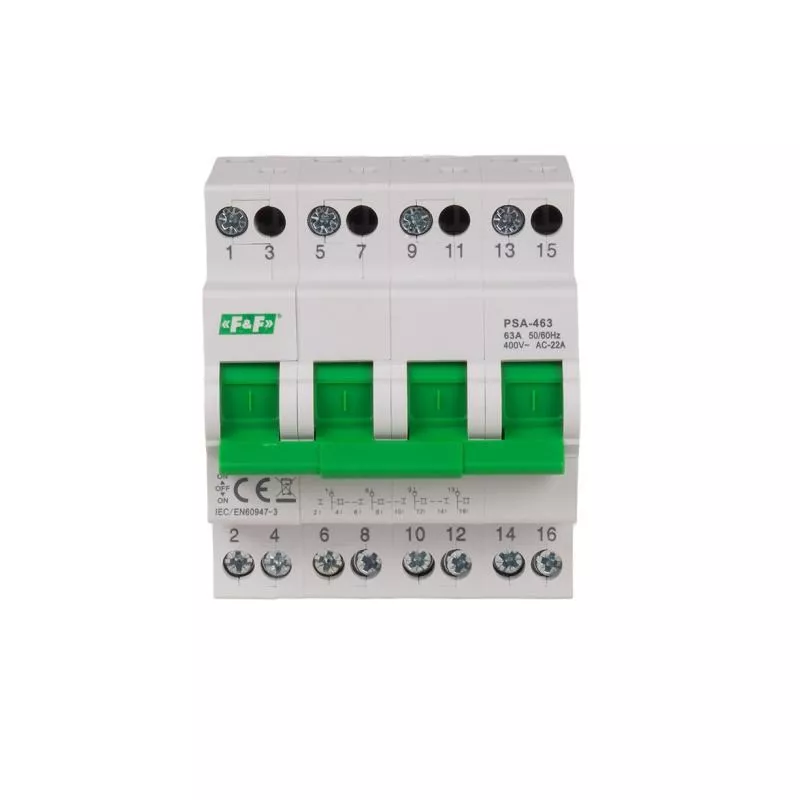

4-biegunowy, przełącznik instalacyjny sieć-agregat 63A
Information | Value |
---|---|
Supplier | F&F Filipowski Spółka Komandytowa |
Series | PSA |
Symbol | PSA-463 |
GTIN(EAN) | 5902431674988 |
Price unit | piece |
Catalog price | 168,51 zł (137,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie znamionowe 230/400 V Prąd znamionowy [AC-21B/AC-22A] 63 A Liczba biegunów 4P Program przełączeń 1-0-2 Wytrzymałość elektryczna 5000 cykli Wytrzymałość mechaniczna 15000 cykli Częstotliwość znamionowa 50÷60 Hz Przyłącze zaciski śrubowe 10 mm² (linka); zaciski śrubowe 16 mm² (drut) Temperatura pracy -20÷50°C Wymiary 4 moduły (70 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
Information | Value |
---|---|
Gross weight: | 262 g |
ETIM class: | Off-load switch |
Model: | Reverser |
Number of poles: | 4 |
With zero (off) position: | yes |
With retraction in 0-position: | no |
Rated permanent current Iu: | 63 A |
Degree of protection (IP), front side: | IP20 |
Suitable for distribution board installation: | yes |
Complete device in housing: | yes |
Housing material: | Plastic |
Type of control element: | Rocker lever |
Type of electrical connection of main circuit: | Screw connection |
