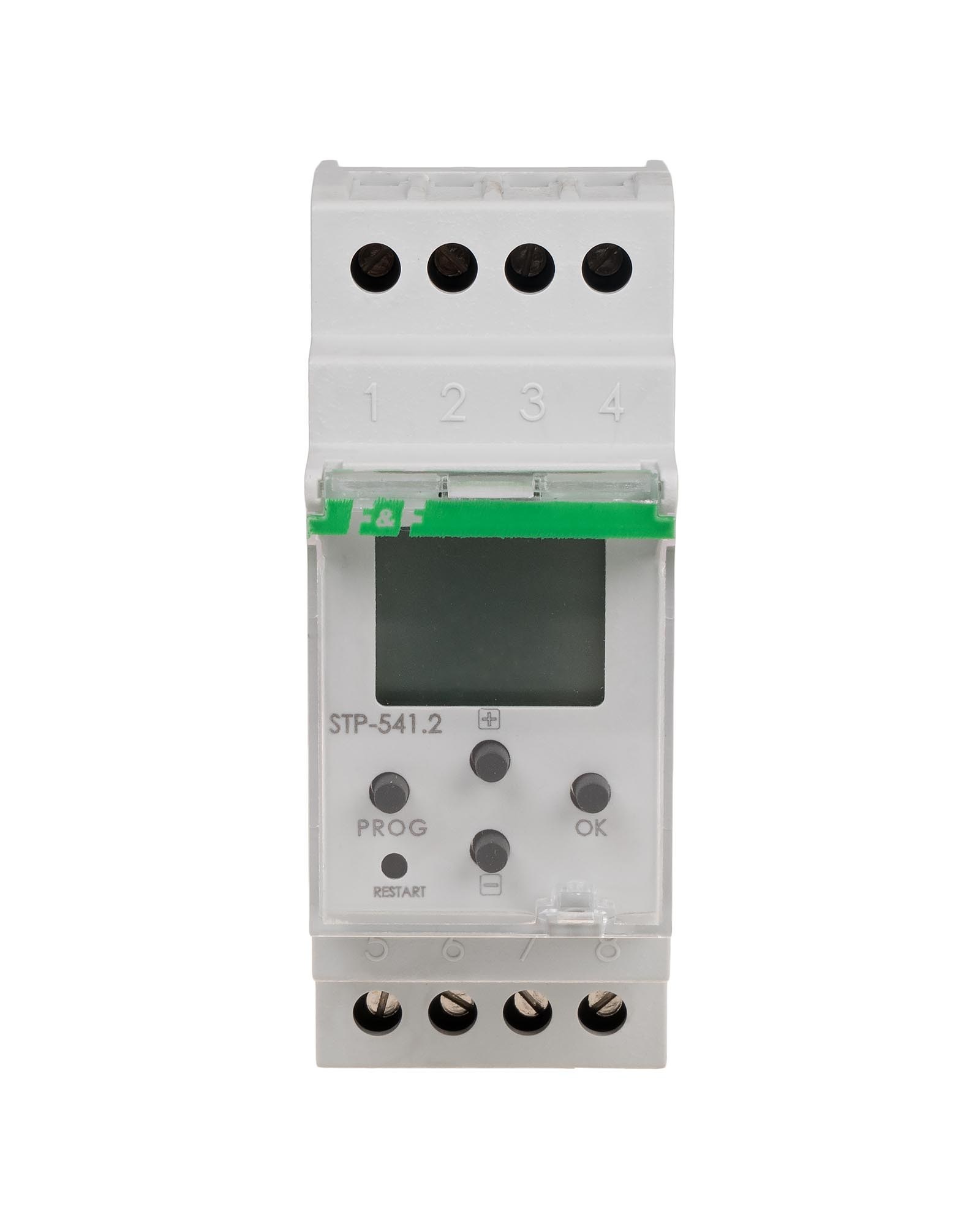

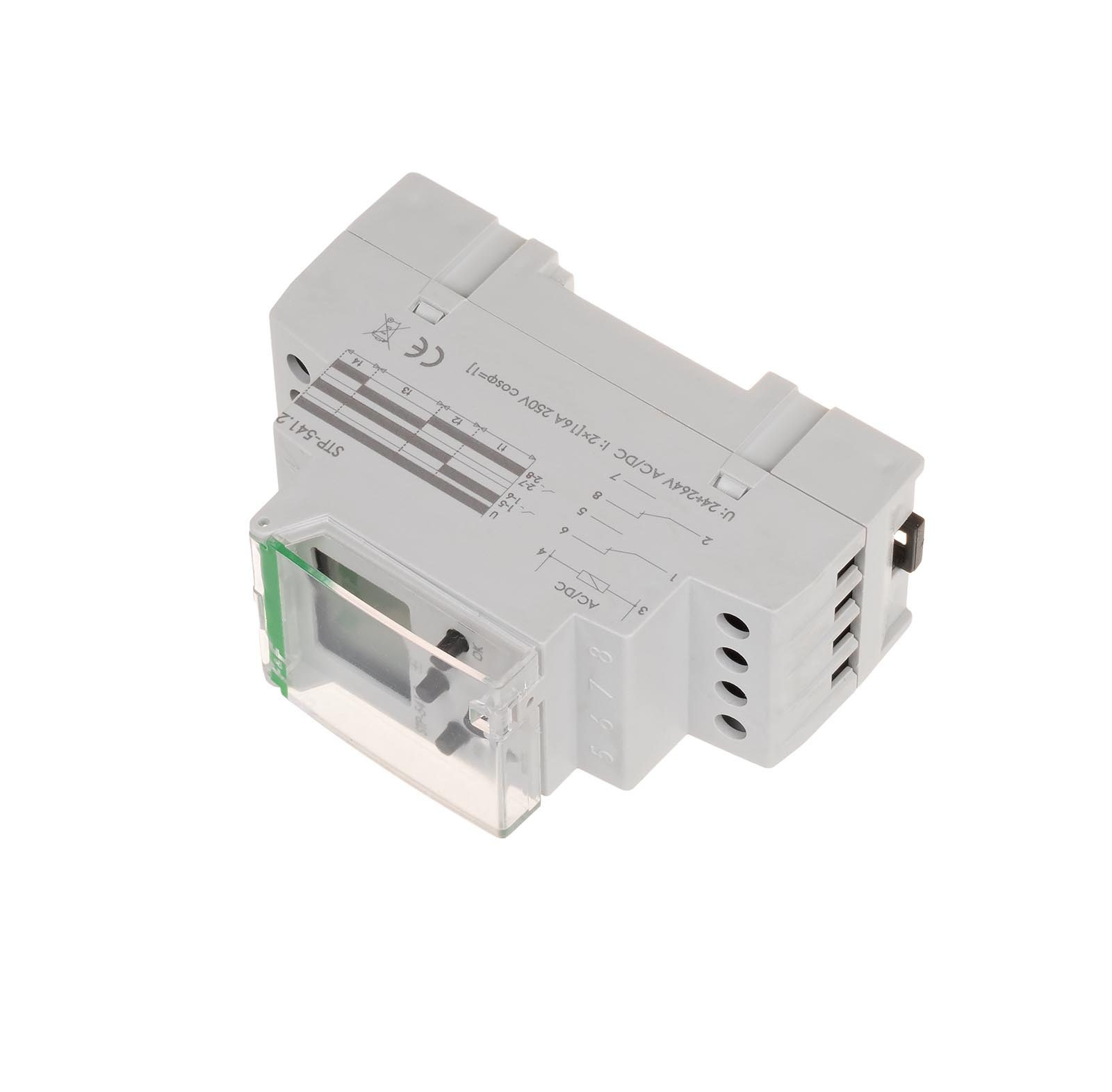

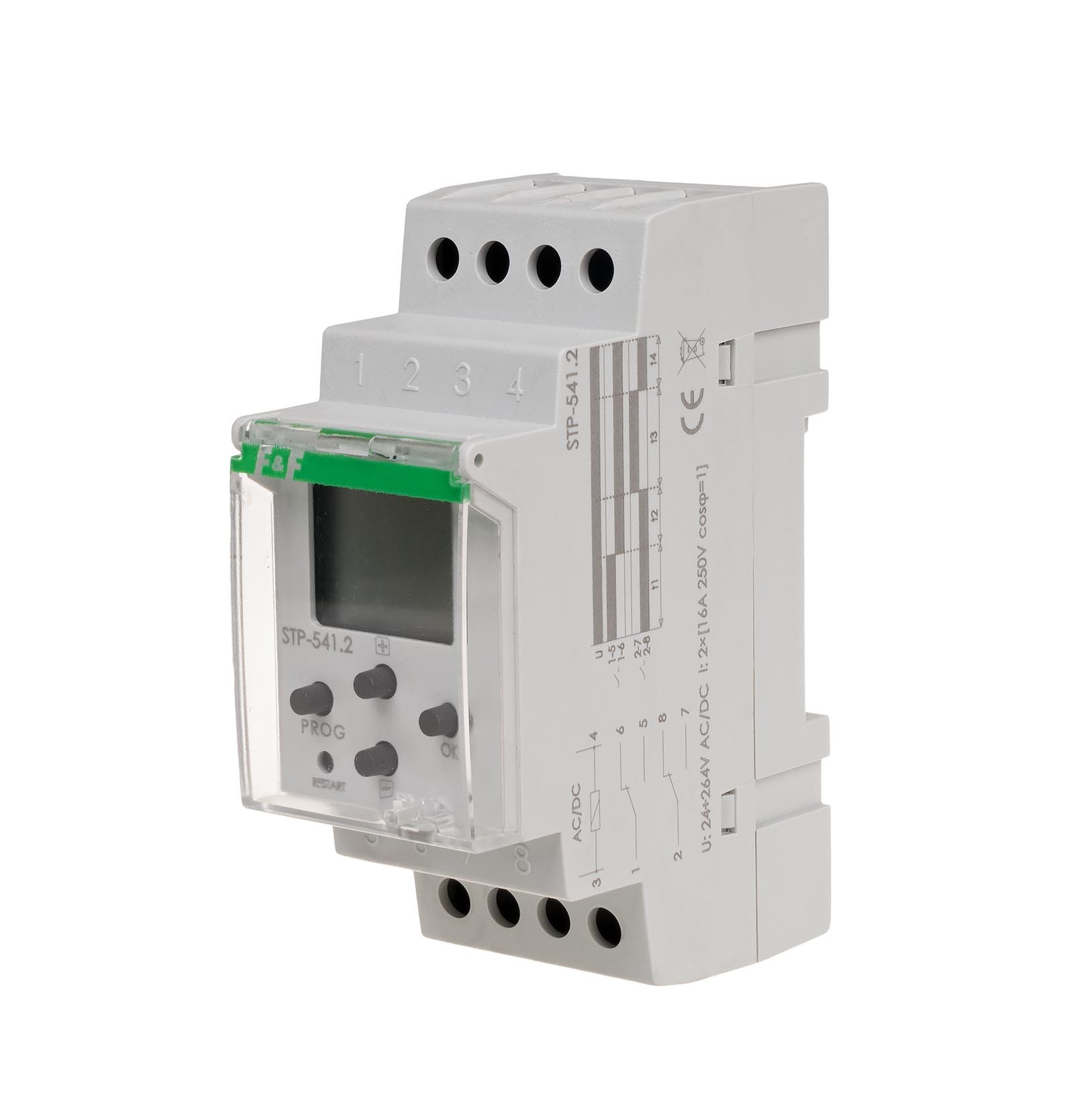

Sterownik programowalny typu "praca PRAWO-LEWO" STP-541 24÷264V AC/DC 2x1NO/NC
Information | Value |
---|---|
Supplier | F&F Filipowski Spółka Komandytowa |
Series | PC |
Symbol | STP-541 |
GTIN(EAN) | 5908312596141 |
Price unit | piece |
Catalog price | 359,16 zł (292,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 24÷264 V AC/DC Element wykonawczy 2 x przekaźnik Maksymalny prąd obciążenia 2 × 16 A Konfiguracja styków 2 × NO/NC Separacja styku TAK Dokładność nastawy czasu programu 1 s Nastawy czasowe t1, t2, t3, t4 1sek÷99h59min59sek Liczba powtórzeń cyklu 1÷999999 lub nieskończenie w pętli Przyłącze zaciski śrubowe 4,0 mm² Moment dokręcający 0,5 Nm Pobór mocy 1,5 W Temperatura pracy -20÷50°C Wymiary 2 moduły (35 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
Information | Value |
---|---|
Gross weight: | 138 g |
ETIM class: | Timer relay |
Type of electric connection: | Screw connection |
Function delay-on energization: | yes |
Function delay on de-energization: | yes |
Function floating contact on energization: | yes |
Function floating contact on de-energization: | yes |
Time range: | 1 - 360000 s |
Rated control supply voltage AC 50 Hz: | 24 - 264 V |
Number of outputs, undelayed, normally open contact: | 0 |
Number of outputs, delayed, change-over contact: | 2 |
Width: | 35 mm |
Height: | 90 mm |
Depth: | 65 mm |
