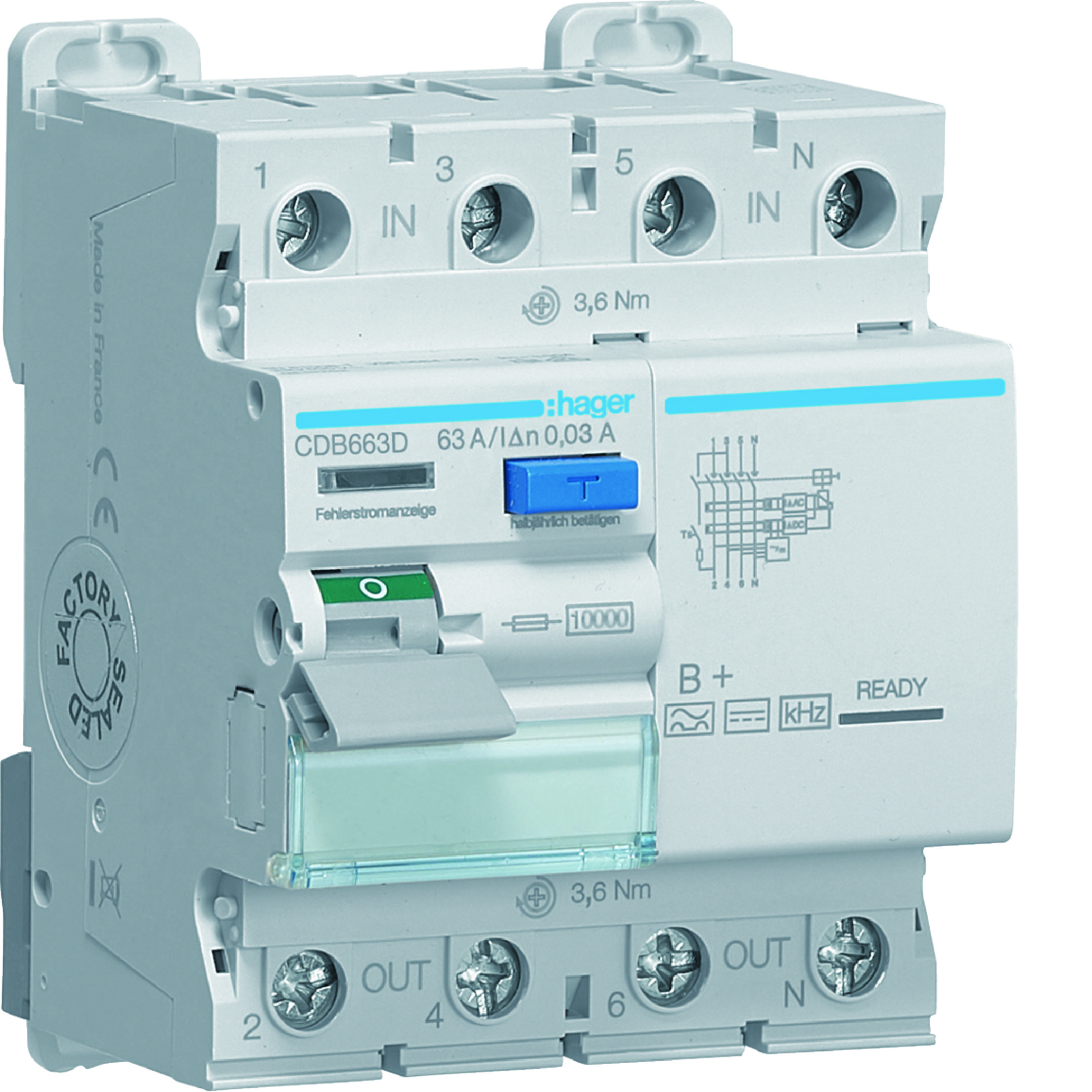

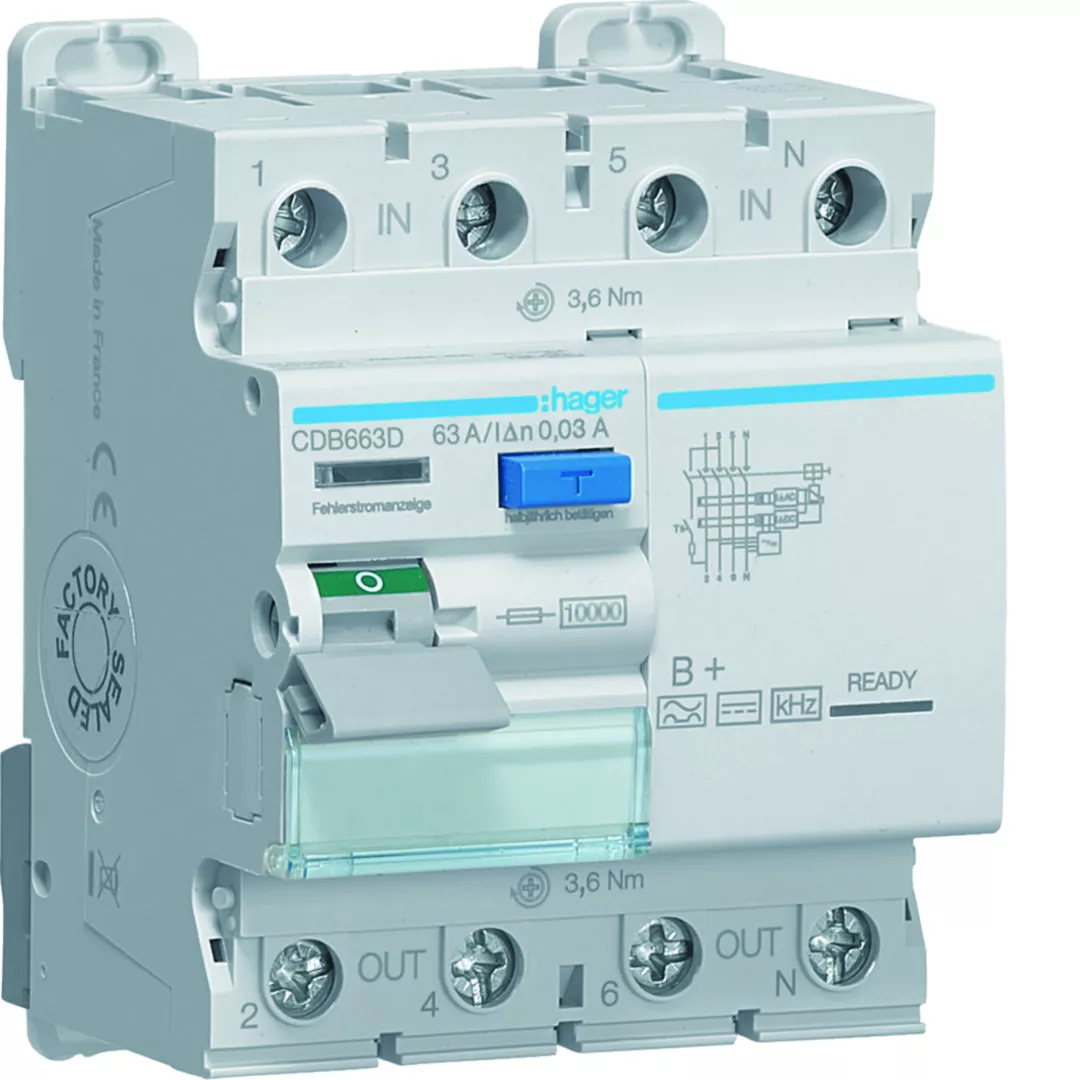

RCCB Wyłącznik różnicowoprądowy 3P+N 63A 30mA 10kA B+
Information | Value |
---|---|
Supplier | HAGER POLO Sp. z o. o. (Berker) |
Symbol | CDB663D |
GTIN(EAN) | 3250611627685 |
Price unit | piece |
Catalog price | 7 122,93 zł (5 791,00 zł + 23% VAT) |
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Wiosenna Promocja z Hager-em
Kup Produkty Firmy Hager i odbierz nagrodę.
Promotion active until 05/31/2024
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
HAGER: Rozdajemy narzędzia Wiha!
Kup produkty marki HAGER za min 1000 zł netto i otrzymaj narzędzie Wiha.
Promotion active until 05/31/2024
Additional features:
Information | Value |
---|---|
Gross weight: | 425 g |
ETIM class: | Residual current circuit breaker (RCCB) |
Rated current: | 63 A |
Selective protection: | no |
Short-time delayed tripping: | no |
With interlocking device: | yes |
Short-circuit breaking capacity (Icw): | 10 kA |
Connectable conductor cross section multi-wired: | 1 - 16 mm² |
Number of poles: | 4 |
Built-in depth: | 70 mm |
Mounting method: | DIN rail |
Connectable conductor cross section solid-core: | 1 - 25 mm² |
Rated voltage: | 400 V |
Surge current capacity: | 5 kA |
Rated insulation voltage Ui: | 400 V |
Frequency: | 50 Hz |
Rated fault current: | 0.03 A |
Rated impulse withstand voltage Uimp: | 4 kV |
Width in number of modular spacings: | 4 |
Pollution degree: | 2 |
Degree of protection (IP): | IP20 |
Ambient temperature during operating: | -25 - 70 °C |
Leakage current type: | B+ |
Additional equipment possible: | yes |
Explosion-proof: | no |
Voltage type: | AC |
