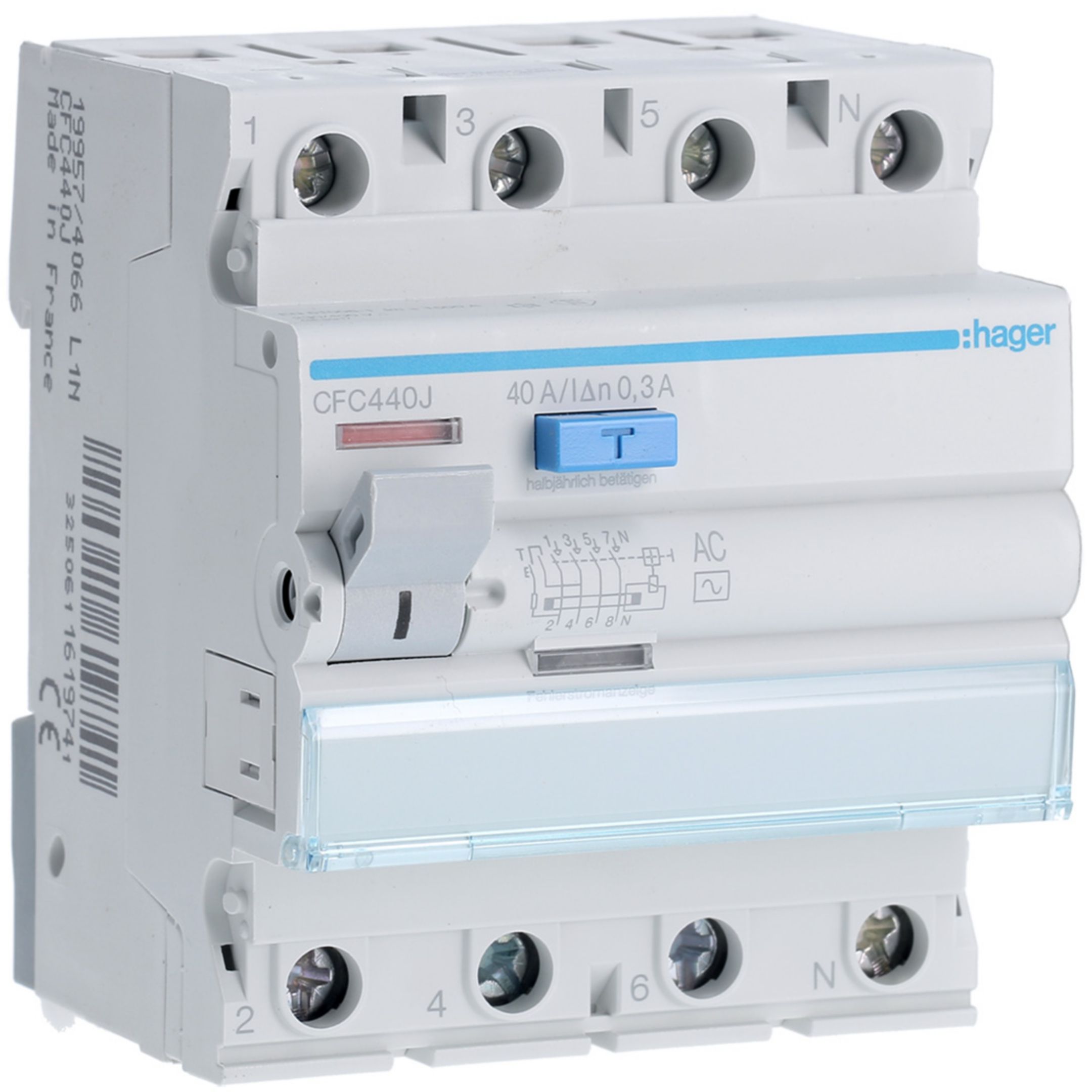

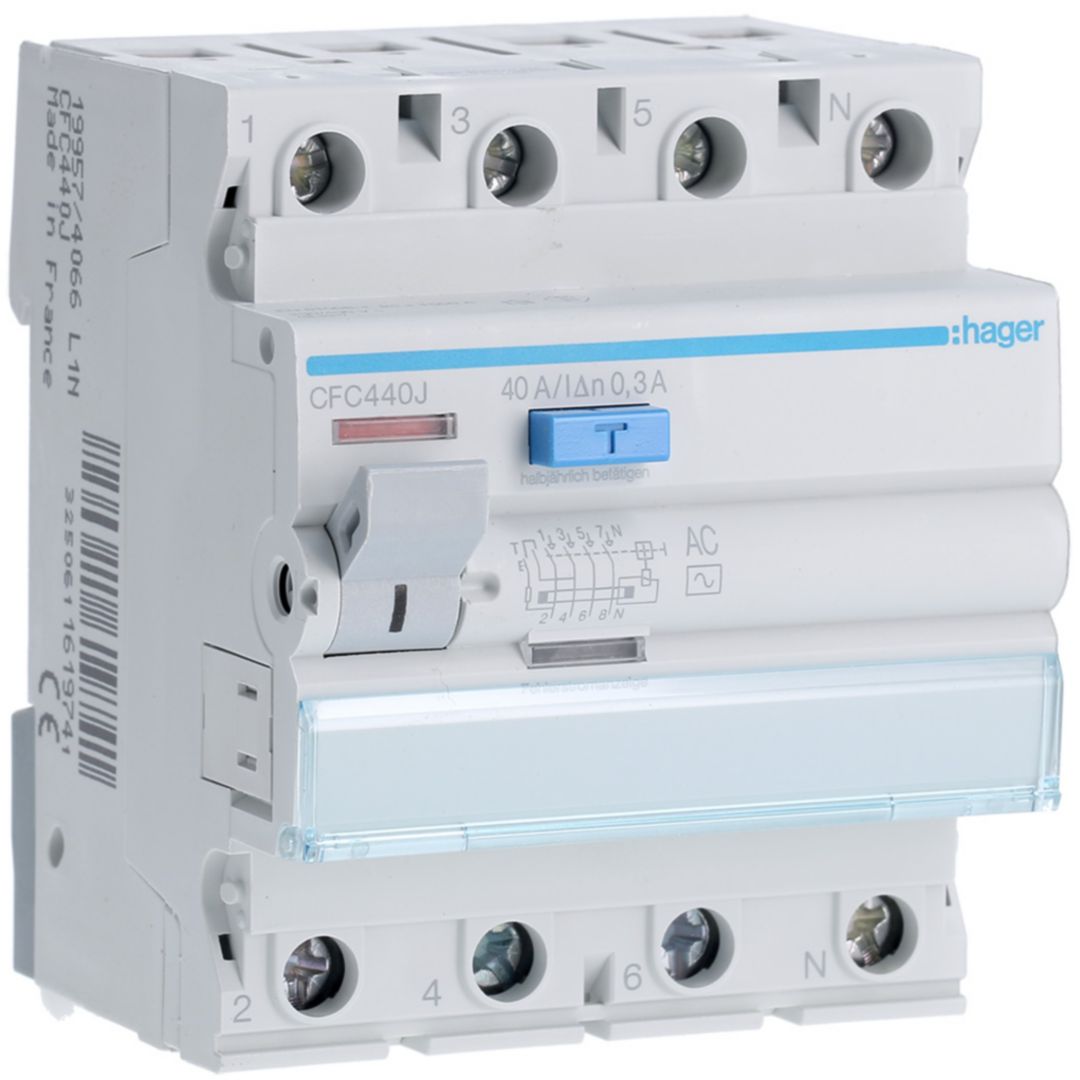

RCCB Wyłącznik różnicowoprądowy 3P+N 40A 300mA 6kA AC
Information | Value |
---|---|
Catalog price | 571,95 zł (465,00 zł + 23% VAT) |
Symbol | CFC440J |
GTIN(EAN) | 3250611619741 |
Producer | HAGER POLO Sp. z o. o. |
Price unit | piece |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
NA BANK WYSTARCZY CI ENERGII
Promocja produktowa z HAGERem
-
PROMOCJA !!! HAGER !!!
PROMOCJA !!! Dokonując zakupów produktów HAGER za określoną kwotę otrzymasz...NAGRODĘ !
Additional features:
Information | Value |
---|---|
ETIM class: | Residual current circuit breaker (RCCB) |
Rated current: | 40 A |
Selective protection: | no |
Short-time delayed tripping: | no |
With interlocking device: | no |
Short-circuit breaking capacity (Icw): | 6 kA |
Connectable conductor cross section multi-wired: | 1 - 16 mm² |
Number of poles: | 4 |
Built-in depth: | 70 mm |
Mounting method: | DIN rail |
Connectable conductor cross section solid-core: | 1 - 25 mm² |
Rated voltage: | 400 V |
Surge current capacity: | 0.25 kA |
Rated insulation voltage Ui: | 500 V |
Frequency: | 50 Hz |
Rated fault current: | 0.3 A |
Rated impulse withstand voltage Uimp: | 4 kV |
Width in number of modular spacings: | 4 |
Pollution degree: | 2 |
Degree of protection (IP): | IP20 |
Ambient temperature during operating: | -25 - 40 °C |
Leakage current type: | AC |
Additional equipment possible: | yes |
Explosion-proof: | no |
Voltage type: | AC |
Buy online
Buy / order
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2023-11-24 09:25:06 |
Gross weight: | 333 g |
Files to download: | |
External links: |
