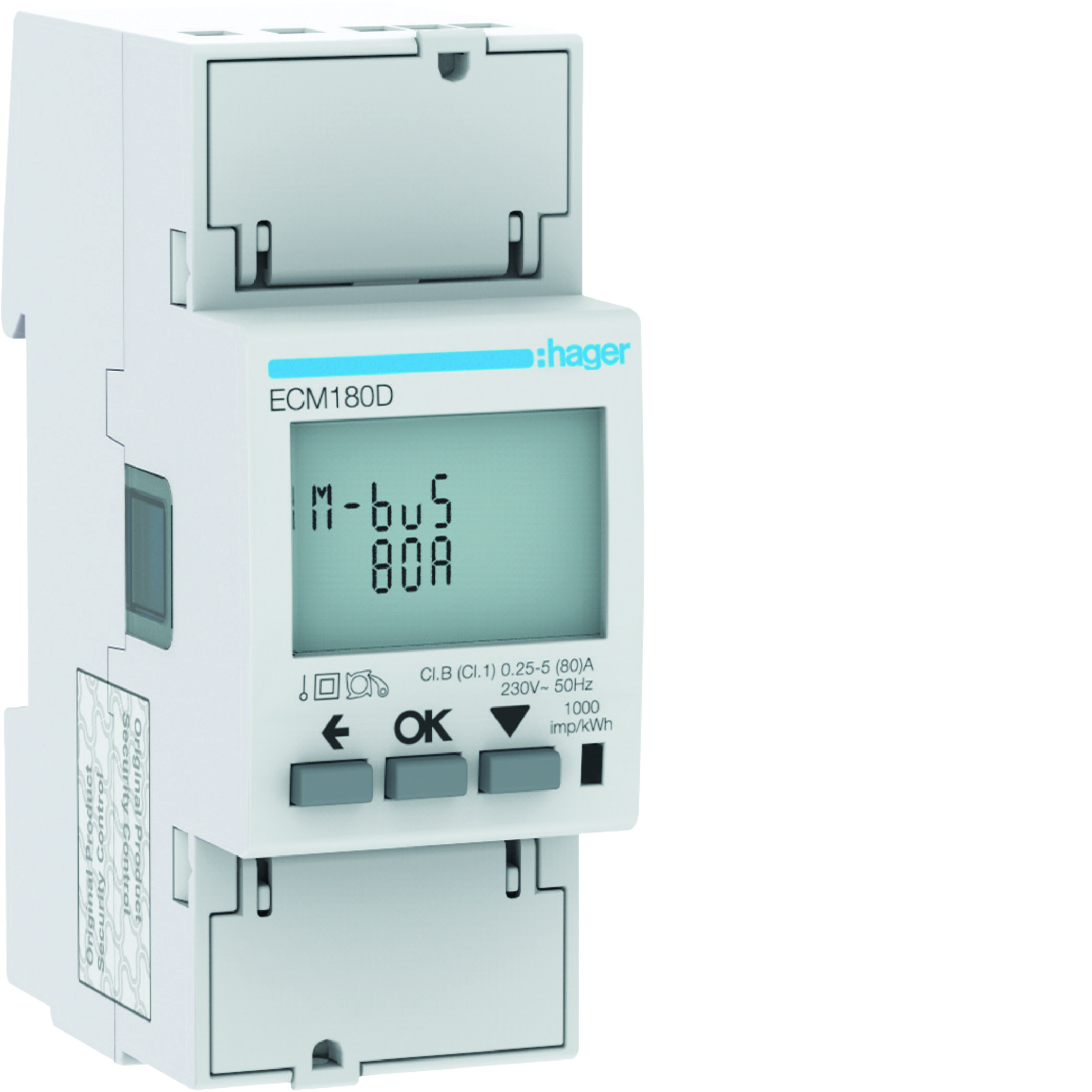

agardio.measure Licznik energii elektrycznej 1-fazowy, 80A 2M, M-bus, MID
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | ECM180D |
| GTIN(EAN) | 3250612231317 |
| Price unit | piece |
| Catalog price | 1 480,92 zł (1 204,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Hager, Kontakt Simon, F&F - Razem na wiosnę - miksuj dowolnie
Kup produkty Hager, Kontakt Simon i F&F za kwotę 2000 zł netto i odbierz bezrękawnik
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 254 g |
| Country of origin | Polska |
| ETIM class: | Kilowatt-hour meter |
| Nominal current (In): | 80 A |
| Nominal voltage (Un) N-L: | 92 - 276 V |
| Frequency: | 45 - 65 Hz |
| Max. current (Imax): | 80 A |
| Mounting method: | DRA (DIN-rail adapter) |
| Energy type: | Effective power and blind power |
| Model: | Direct measurement |
| With lock code: | no |
| Tariff type: | Multi-tariff |
| Tariff control: | Internal/external |
| Number of positions total (counter): | 9 |
| Suitable for: | Purchase/supply |
| Type of indication: | Digital |
| Calibrated: | yes |
| Escapement mechanism: | yes |
| EEC40 signature: | no |
| Type of meter: | Electronic |
| Pole type: | Single phase |
| Measurement type load profile: | no |
| Accuracy class: | B |
| Pulse output: | Optical |
| Width in number of modular spacings: | 2 |
| Degree of protection (IP): | IP20 |
| Width: | 36 mm |
| Height: | 92 mm |
| Depth: | 60 mm |
| Pulse rate: | 0 - 1 000 Imp/kWh (kvarh) |
| Degree of protection (NEMA): | 2 |
| Pulse type: | D0 |
| Nominal voltage (Un) L-L: | 230 - 230 V |
| Approval: | Measuring Instruments Directive |
| Power consumption: | 0,6 W |
| Type of interface: | M-bus (wired) |
