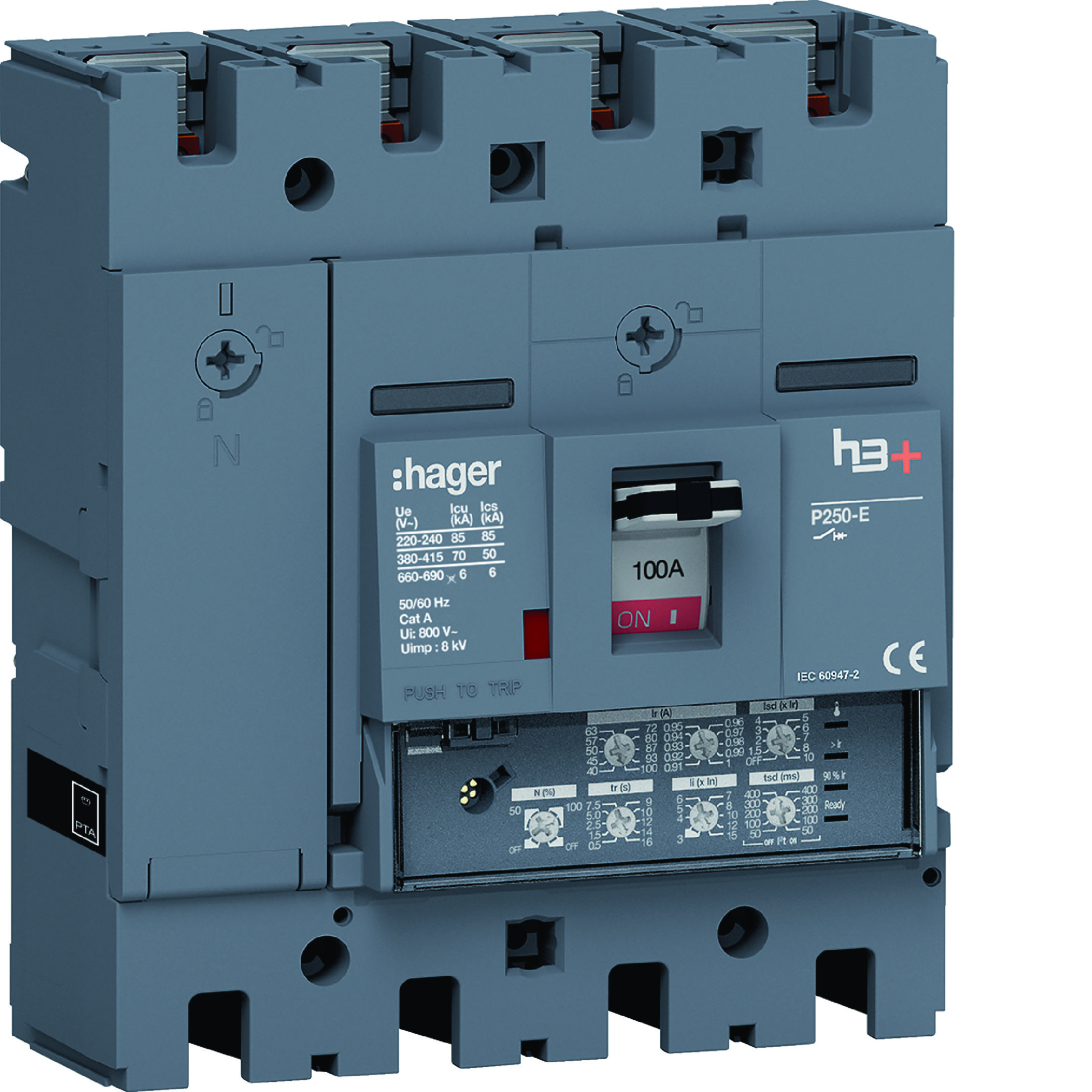

MCCB Wyłącznik mocy h3+ P250 4P 100A 70kA LSI
Information | Value |
---|---|
Supplier | HAGER POLO Sp. z o. o. (Berker) |
Symbol | HET101JR |
GTIN(EAN) | 3250613176259 |
Price unit | piece |
Catalog price | 5 002,41 zł (4 067,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
Hager- Zadbaj o ogród i zgarnij wąż ogrodowy
Kup produkty marki Hager za minimum 2000 zł netto i odbierz wózek z wężem ogrodowym za 1 zł brutto.
Promotion active until 12/30/2024
-
HAGER: Kompleksowo wyposażony
Kup produkty marki HAGER za kwotę min. 50 000 zł netto i odbierz nagrodę. UWAGA. Zakupy kumulują się!
Promotion active until 12/31/2024
Additional features:
Information | Value |
---|---|
Gross weight: | 2,296 kg |
ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
Rated permanent current Iu: | 100 A |
Number of auxiliary contacts as change-over contact: | 0 |
Integrated earth fault protection: | no |
With switched-off indicator: | yes |
Motor drive optional: | yes |
Motor drive integrated: | no |
Suitable for DIN rail (top hat rail) mounting: | no |
Position of connection for main current circuit: | Front side |
Number of poles: | 4 |
Type of electrical connection of main circuit: | Screw connection |
Type of control element: | Toggle |
Adjustment range short-term delayed short-circuit release: | 54.6 - 1000 A |
DIN rail (top hat rail) mounting optional: | yes |
Complete device with protection unit: | yes |
Rated voltage: | 220 - 690 V |
Degree of protection (IP): | IP40 |
Device construction: | Built-in device fixed built-in technique |
Number of auxiliary contacts as normally closed contact: | 0 |
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 70 kA |
Number of auxiliary contacts as normally open contact: | 0 |
With integrated under voltage release: | no |
Power loss: | 7.20 W |
