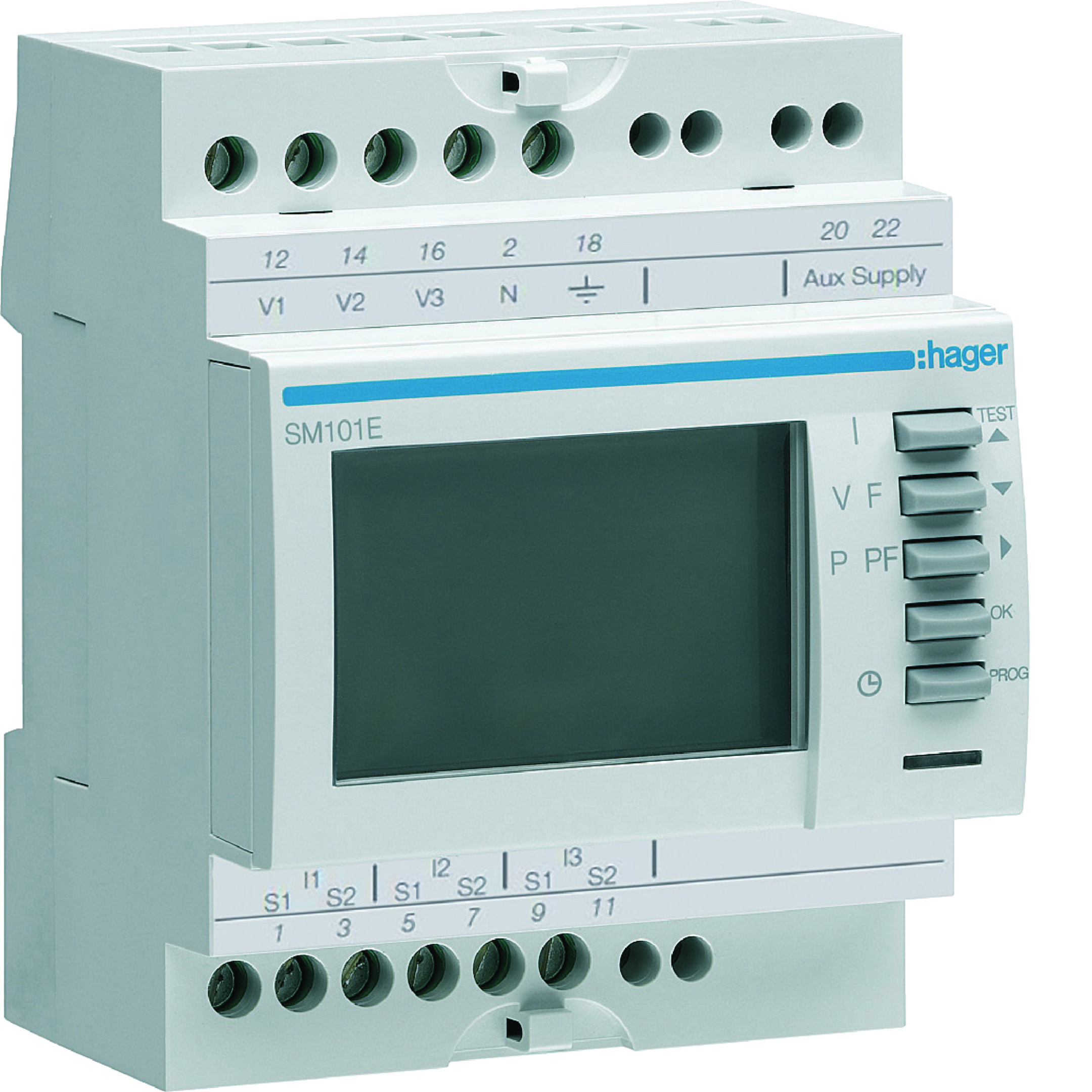

Miernik wielofunkcyjny modułowy, TrueRMS
Information | Value |
---|---|
Supplier | HAGER POLO Sp. z o. o. (Berker) |
Symbol | SM101E |
GTIN(EAN) | 3250615631015 |
Price unit | piece |
Catalog price | 2 881,89 zł (2 343,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
Hager- Zadbaj o ogród i zgarnij wąż ogrodowy
Kup produkty marki Hager za minimum 2000 zł netto i odbierz wózek z wężem ogrodowym za 1 zł brutto.
Promotion active until 12/30/2024
-
HAGER: Kompleksowo wyposażony
Kup produkty marki HAGER za kwotę min. 50 000 zł netto i odbierz nagrodę. UWAGA. Zakupy kumulują się!
Promotion active until 12/31/2024
Additional features:
Information | Value |
---|---|
Gross weight: | 272 g |
ETIM class: | Multifunction measuring instrument |
With rotational speed meter: | no |
Pulse counter: | no |
Ampere meter: | yes |
Blind power meter: | yes |
Frequency meter: | yes |
Voltmeter: | yes |
Effective power measurement device: | yes |
Number of analogue inputs: | 7 |
Number of analogue outputs: | 0 |
Height: | 67 mm |
Measuring range for frequency: | 45 - 65 Hz |
Depth: | 90 mm |
Number of digital inputs: | 0 |
Voltage type (supply voltage): | AC |
Supporting protocol for other bus systems: | no |
Supporting protocol for Modbus: | no |
Supply voltage AC 50 Hz: | 200 - 277 V |
Supply voltage AC 60 Hz: | 200 - 277 V |
Remote display: | no |
Supporting protocol for IEC 61850 Ethernet: | no |
Supporting protocol for OPC UA PubSub: | no |
Supporting protocol for PROFIBUS: | no |
Supporting protocol for PROFINET IO: | no |
With audit logging (audit log): | no |
With logging of security events (security event log): | no |
Number of voltage measurement inputs: | 4 |
Web server with HTTPS transfer protocol: | no |
Number of current measurement inputs: | 3 |
Width: | 73 mm |
Degree of protection (IP), front side: | IP20 |
Number of Ethernet-connections: | 0 |
Number of digital outputs: | 0 |
Accuracy class active energy according to IEC 62053-22: | 0.5S |
With Role Based Access Control (RBAC): | no |
Accuracy class reactive energy according to IEC 62053-23: | Other |
Wth communication interface M-Bus: | no |
Nominal current (In): | 5 A |
Model: | Measurement transformer |
Connectable conductor cross section solid-core: | 2.5 - 4 mm² |
Measured value memory: | no |
Power factor: | yes |
Apparent power: | yes |
Calibrated: | no |
Pulse output: | None |
With communication interface KNX: | no |
Max. current (Imax): | 6 A |
With communication interface RS-485: | no |
Display: | LCD |
Step angle (cos phi): | yes |
Mounting method: | DIN rail |
Suitable for RJ plug: | no |
With firmware signature: | no |
Measurement type load profile: | no |
