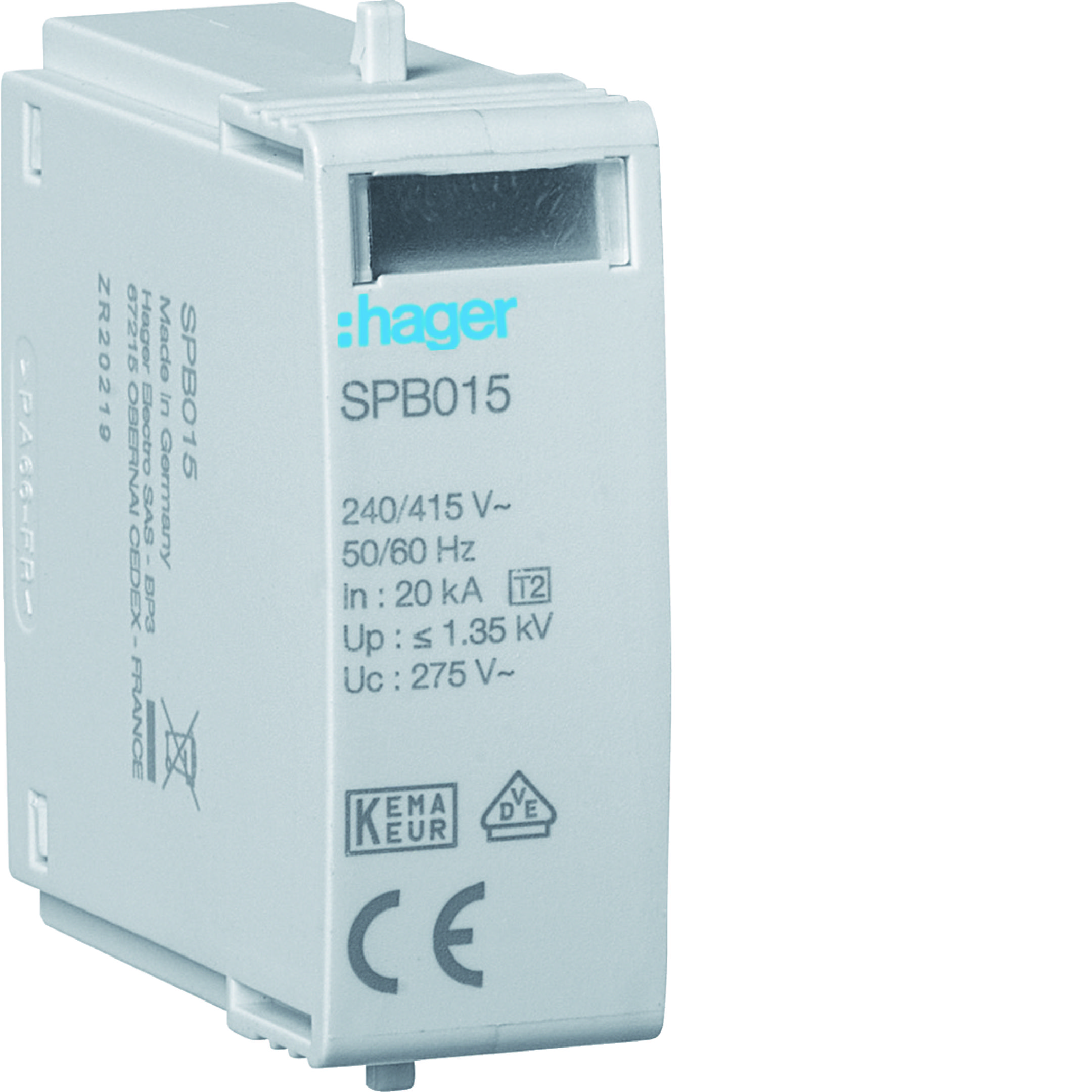

SPD Moduł T2 MOV 1P sieć TN/TT In=20kA Imax=40kA Up≤1,35kV L-N Uc=275V
Information | Value |
---|---|
Supplier | HAGER POLO Sp. z o. o. (Berker) |
Symbol | SPB015 |
GTIN(EAN) | 3250615514851 |
Price unit | piece |
Catalog price | 333,33 zł (271,00 zł + 23% VAT) |
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Wiosenna Promocja z Hager-em
Kup Produkty Firmy Hager i odbierz nagrodę.
Promotion active until 05/31/2024
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
HAGER: Rozdajemy narzędzia Wiha!
Kup produkty marki HAGER za min 1000 zł netto i otrzymaj narzędzie Wiha.
Promotion active until 05/31/2024
Additional features:
Information | Value |
---|---|
Gross weight: | 39 g |
ETIM class: | Surge protection device for power supply systems |
Max. conductor cross section solid (solid, stranded): | 35 mm² |
Voltage protection level L-N: | 1.35 kV |
Max. continuous voltage AC: | 275 V |
Mounting method: | DIN rail (top hat rail) 35 mm |
Voltage protection level N-PE: | 1.35 kV |
Integrated backup fuse: | no |
Voltage protection level: | 1.35 kV |
Nominal discharge surge current (8/20): | 20 kA |
Construction size: | 1 modular spacing |
Signalling at the device: | Optical |
Max. conductor cross section flexible (fine-strand): | 25 mm² |
System configuration other: | no |
Short-circuit breaking capacity (Isccr): | 25 kA |
Max. PV-voltage: | 0 V |
Nominal voltage AC: | 240 V |
Degree of protection (IP): | IP20 |
Category type 2: | yes |
Leakage-current free: | no |
Max. overcurrent protection device, parallel connection (fuse): | 125 A |
Integrated short-circuit protection: | no |
