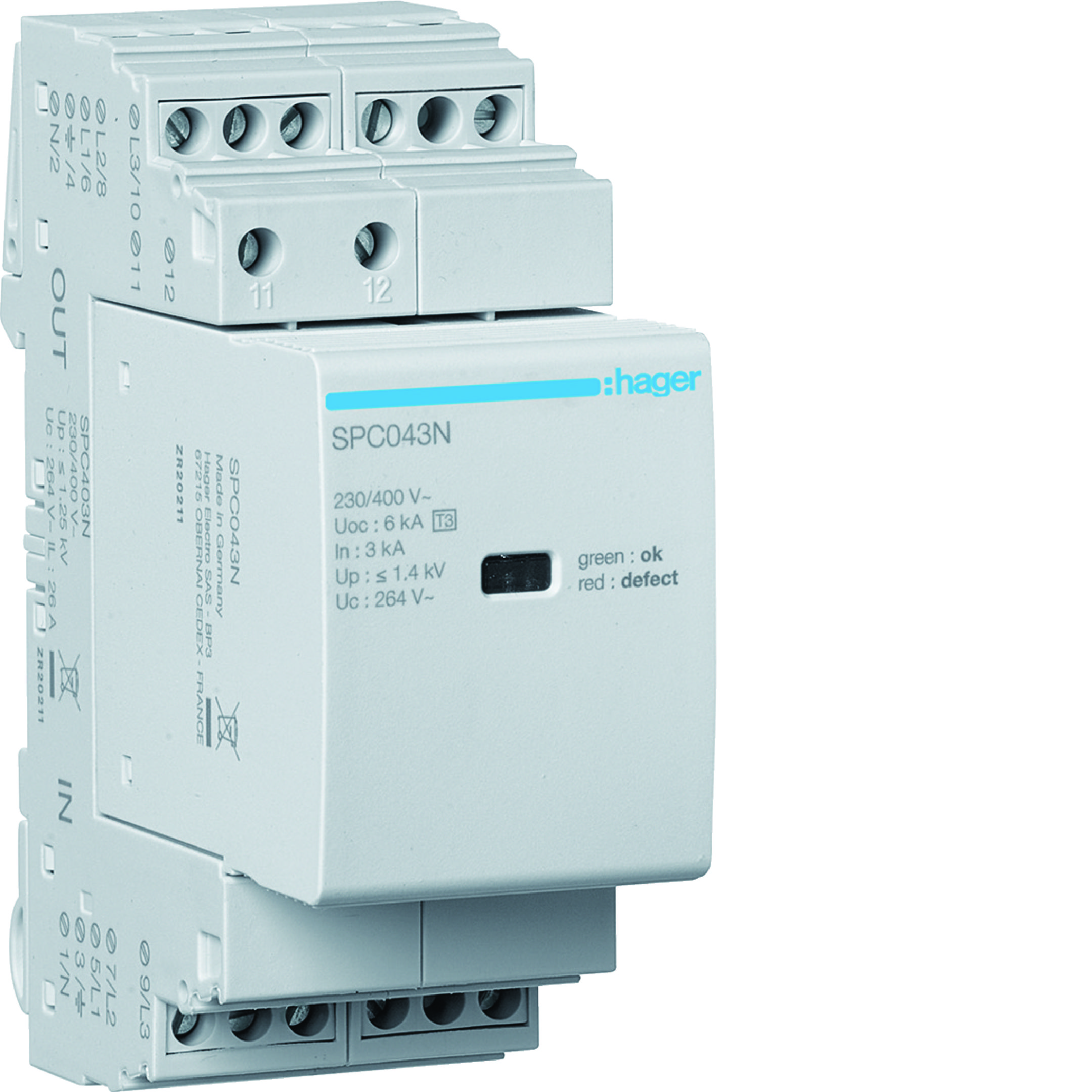

SPD T3 4P sieć TN-S In=3kA Up≤1,4kV styk
Information | Value |
---|---|
Supplier | HAGER POLO Sp. z o. o. (Berker) |
Symbol | SPC403N |
GTIN(EAN) | 3250615514943 |
Price unit | piece |
Catalog price | 3 452,61 zł (2 807,00 zł + 23% VAT) |
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Wiosenna Promocja z Hager-em
Kup Produkty Firmy Hager i odbierz nagrodę.
Promotion active until 05/31/2024
-
Szybki print !
Przy zakupach marki HAGER za kwotę 5000 zł brutto w ElektRa Hurtownia Elektrotechniczna otrzymasz drukarkę XIAOMI Mi Portable Photo Printer !!
-
HAGER: Rozdajemy narzędzia Wiha!
Kup produkty marki HAGER za min 1000 zł netto i otrzymaj narzędzie Wiha.
Promotion active until 05/31/2024
Additional features:
Information | Value |
---|---|
Gross weight: | 155 g |
ETIM class: | Surge protection device for terminal equipment |
Max. conductor cross section flexible (fine-strand): | 2.5 mm² |
Voltage protection level L-N: | 1.25 kV |
Number of poles: | 4 |
Mounting method: | DIN rail (top hat rail) 35 mm |
Signalling at the device: | Optical |
Max. continuous voltage AC: | 264 V |
Voltage protection level L-PE/N-PE: | 1.4 kV |
Max. conductor cross section solid (solid, stranded): | 4 mm² |
Nominal discharge surge current (8/20) (L-N): | 9 kA |
Total discharge current (8/20) (L+N-PE): | 9 kA |
Total discharge current (8/20) (L1+L2+L3+N-PE): | 9 kA |
Nominal load current: | 26 A |
Voltage protection level: | 1.4 kV |
Nominal voltage AC: | 230 V |
Nominal voltage DC: | 230 V |
Degree of protection (IP): | IP20 |
With remote signalling contact: | no |
Category type 3: | yes |
Max. overcurrent protection device, parallel connection (fuse): | 16 A |
Max. overcurrent protection device, series connection (fuse): | 25 A |
Order
Additional information:
Information | Value |
---|---|
Updated: | 2024-04-04 13:14:44 |
Files to download: | |
External links: |
