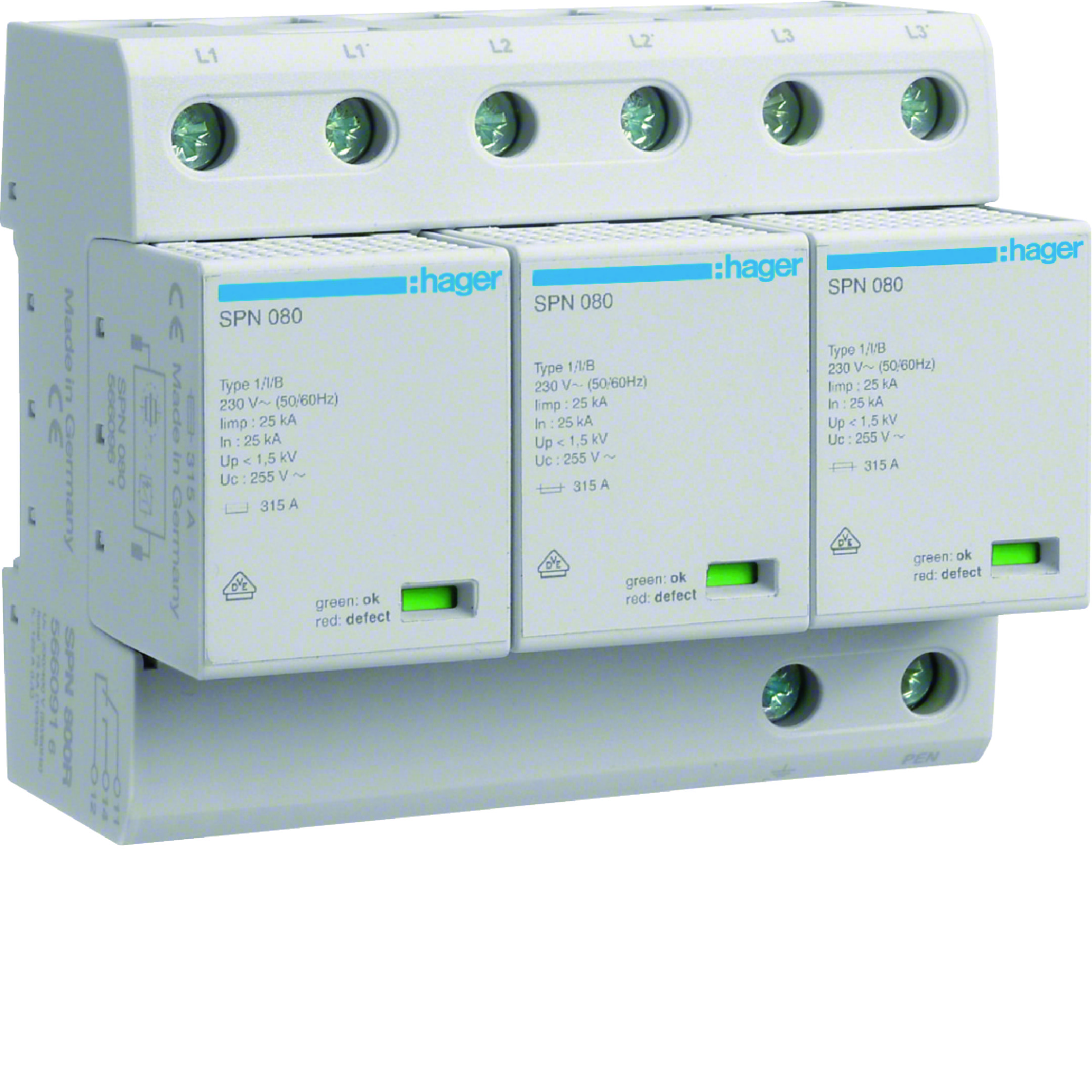

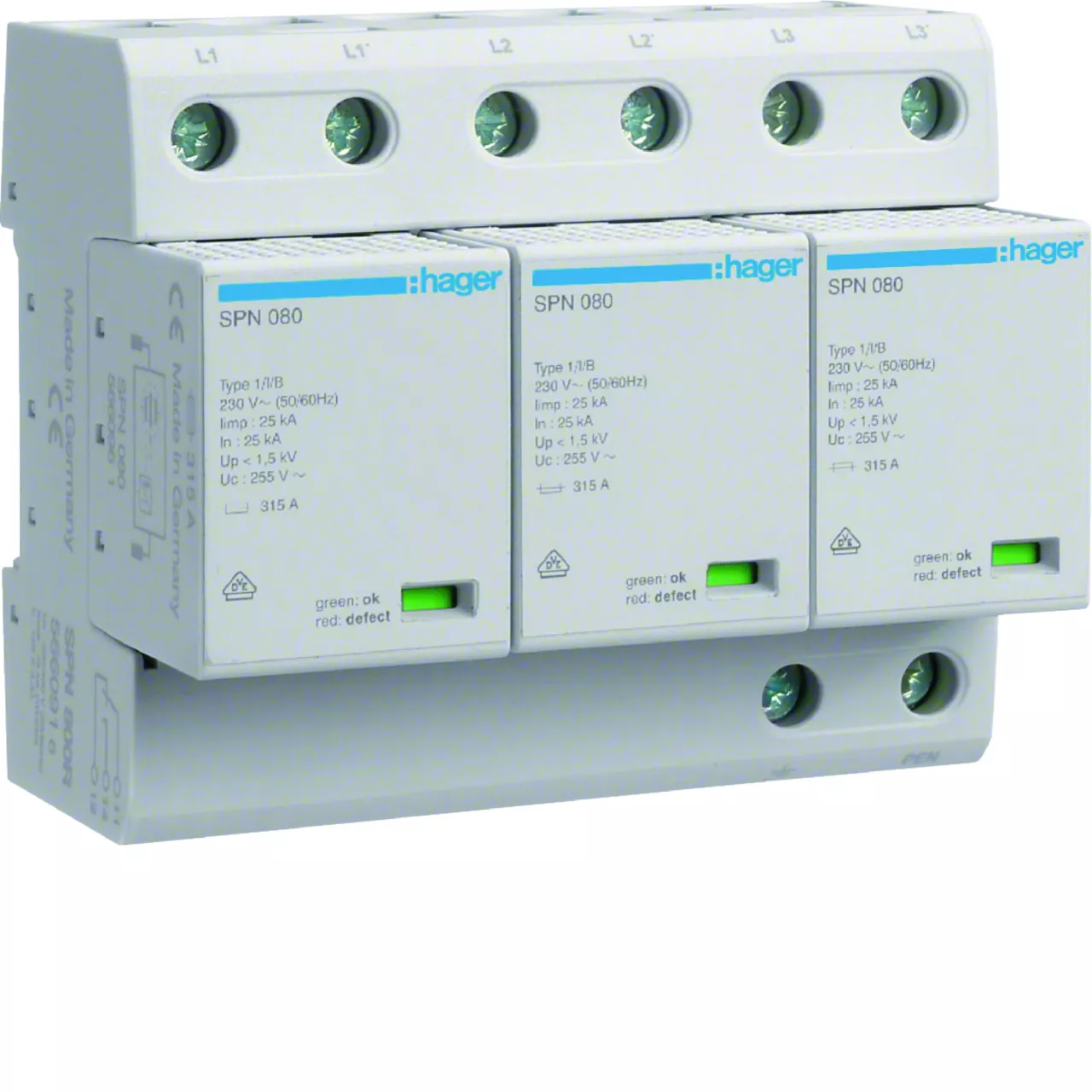

SPD Ogranicznik przepięć T1 kombinowany 3P TN-C Iimp=75kA Up≤1,5kV styk FM
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | SPN800R |
| GTIN(EAN) | 3250615660916 |
| Price unit | piece |
| Catalog price | 9 404,58 zł (7 646,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Hager, Kontakt Simon, F&F - Razem na wiosnę - miksuj dowolnie
Kup produkty Hager, Kontakt Simon i F&F za kwotę 2000 zł netto i odbierz bezrękawnik
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 1,023 kg |
| Country of origin | Niemcy |
| ETIM class: | Lightning current arrester for power supply systems |
| Follow current extinguishing capability: | 50 kA |
| Voltage protection level L-N: | 1,5 kV |
| Max. continuous voltage AC: | 255 V |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Voltage protection level: | 1,5 kV |
| Signalling at the device: | Optical |
| Exhausting: | no |
| Nominal voltage AC: | 400 V |
| Degree of protection (IP): | IP20 |
| With remote signalling contact: | yes |
| Category type 1: | yes |
| Suitable for outdoor use: | no |
| Specific energy (W/R): | 160 kJ/Ω |
| System configuration other: | no |
| System configuration TN-C: | yes |
| System configuration TN-C-S: | no |
| Max. conductor cross section flexible (fine-strand): | 25 mm² |
| System configuration IT: | no |
| Max. conductor cross section solid (solid, stranded): | 35 mm² |
| System configuration DC: | no |
| System configuration TN: | no |
| System configuration TN-S: | no |
| System configuration TT: | no |
| Construction size: | 6 modular spacing |
