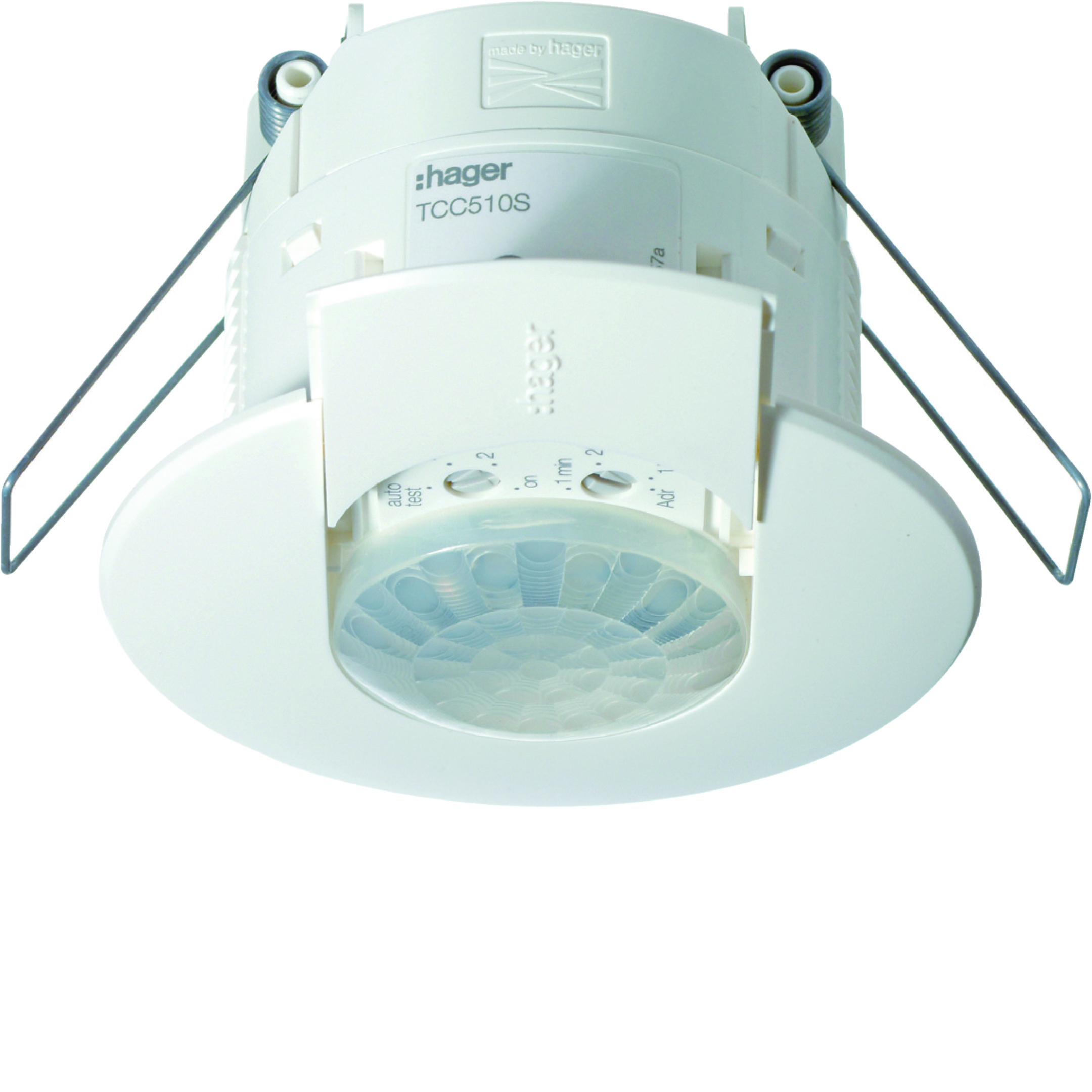

KNX e/s Podtynkowy czujnik obecności 1-kanałowy, biały
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | TCC510S |
| GTIN(EAN) | 3250617579254 |
| Price unit | piece |
| Catalog price | 1 292,73 zł (1 051,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Hager, Kontakt Simon, F&F - Razem na wiosnę - miksuj dowolnie
Kup produkty Hager, Kontakt Simon i F&F za kwotę 2000 zł netto i odbierz bezrękawnik
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 146 g |
| Country of origin | Polska |
| ETIM class: | Movement sensor for bus system |
| Transparent: | no |
| With bus connection: | no |
| Creep-under protection: | no |
| Staircase light controller: | no |
| Response value luminosity adjustable: | no |
| Teach-function for response value luminosity: | no |
| Mounting method: | Other |
| Other bus systems: | None |
| Surface protection: | Untreated |
| Surface finishing: | Matt |
| Bus system KNX-RF (Radio Frequent): | no |
| Bus system radio frequent: | no |
| Max. reach frontally: | 7 m |
| Max. reach sideways: | 8 m |
| Min. depth of built-in installation box: | 30 mm |
| Number of channels: | 1 |
| Material quality: | Thermoplastic |
| Model: | Presence detector |
| Min. switch-on time: | 5 s |
| Optimum mounting height: | 4 m |
| Detection angle vertical: | 55 - 55 ° |
| Max. duty cycle: | 480 min |
| Material: | Other |
| Bus system KNX: | yes |
| Detection angle horizontal: | 360 - 360 ° |
| Animal zone: | yes |
| Bus system Powernet: | no |
| Bus system LON: | no |
| Substation input: | no |
| Operation mode switch: | no |
| Radio frequent bidirectional: | no |
| Colour: | White |
| RAL-number (similar): | 9 010 |
| Switch-off delay self-learning: | no |
| Diameter reach on floor: | 7 m |
| DALI-2 certified: | no |
| Depth: | 99 mm |
| Built-in diameter: | 68 mm |
| Built-in length: | 99 mm |
| Width: | 95 mm |
| Suitable for ceiling mounting: | yes |
| With acoustic sensor: | no |
| Diameter: | 68 mm |
| Built-in depth: | 83 mm |
| With connection cable: | no |
| Height: | 83 mm |
| Built-in width: | 95 mm |
