Oprawa STREETLIGHT AREA SM V 45W 730 RV20ST GY

Information Value
Supplier LEDVANCE Sp z o.o
Symbol 4058075725119
GTIN(EAN) 4058075725119
Price unit piece
Product withdrawn This product is not produced any more. It might still be available if some wholesaler has it in it's stock
Sale price from 260,59 zł / szt. (211,86 zł + 23 % VAT)
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.

Description:

Możliwość zastosowania do oświetlenia ulicznego i obszarów zewnętrznych. Cechy produktu: Rozsył światła zoptymalizowany dla ulic o szerokości zbliżonej do wysokości słupa. W zestawie adapter montażowy, odpowiedni do wysięgników o średnicy 48...60 mm. Oprawa przystosowana do montażu bocznego lub na szczycie słupa. Regulacja kąta nachylenia +/- 30° bez otwierania obudowy. Wysoka skuteczność świetlna: do 135 lm/W. Zakres temperatury pracy: -30…50 °C. Wysoka ochrona przeciwprzepięciowa: dostępne wersje 2 kV i 10 kV (L/N-PE). Zalety produktu: Funkcjonalna konstrukcja i minimalistyczny wygląd. Niskie koszty konserwacji i eksploatacji dzięki długiej trwałości lamp LED. 5-letnia gwarancja. Obszary zastosowań: Zastosowania zewnętrzne (IP66). Drogi klasy M, C i P wg. Wymagań PN- EN 13201. Parkingi. Oświetlenie przestrzeni.

Additional features:

Information Value
Net weight: 1,44 kg
Country of origin Chiny
ETIM class: Luminaire for streets and places
Mounting method: Post top
Lamp type: LED not exchangeable
With light source: yes
Suitable for number of light sources: 0
Housing material: Aluminium
Surface protection: Powder coating
Housing colour: Grey
Voltage type: AC
Nominal voltage: 100 - 240 V
Nominal current: 186 - 186 mA
With control gear: yes
Exchangeable control gear: yes
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI: no
Dimming DMX: no
Dimming DSI: no
Dimming potentiometer (integrated): no
Dimming LineSwitch: no
Dimming manufacturer's proprietary system: no
Dimming mains voltage modulation: no
Dimming phase cut-off: no
Dimming phase cut-on: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push-button: no
No dim function: yes

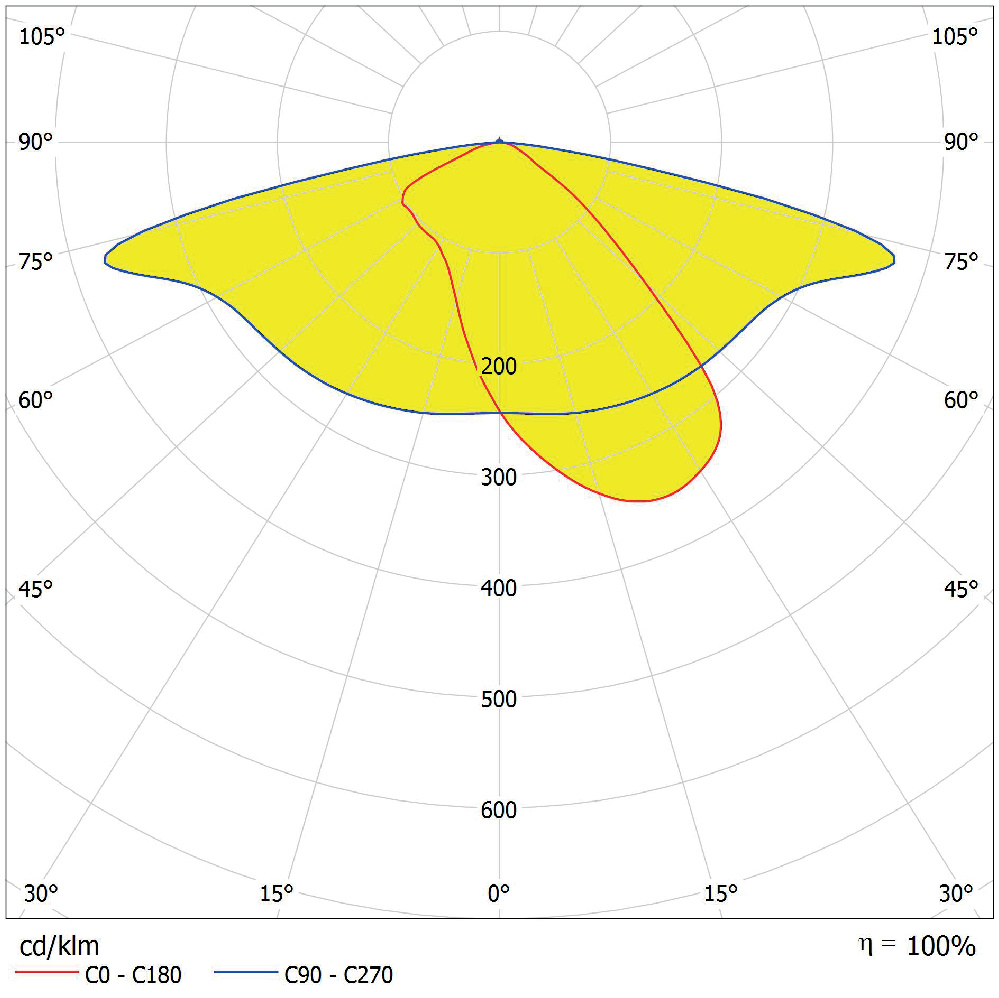

Light distributor: Focal lens
Rated life time L70/B50 at 25 °C: 70 000 h
Degree of protection (IP): IP66
Adjustable optics: no
Impact strength: IK08
Protection class: I
Rated ambient temperature according to IEC 62722-2-1: -30 - 50 °C
Remote control: None
With radio control: no
Constant light output (CLO): no
With light regulation program control: no
With connection cable: yes
Cable length: 0,5 m
Max. system power: 45 W
Rated luminous flux according to IEC 62722-2-1: 5 850 lm
Luminaire efficacy: 130 lm/W
Colour temperature: 3 000 - 3 000 K
Colour rendering index CRI: 70-79

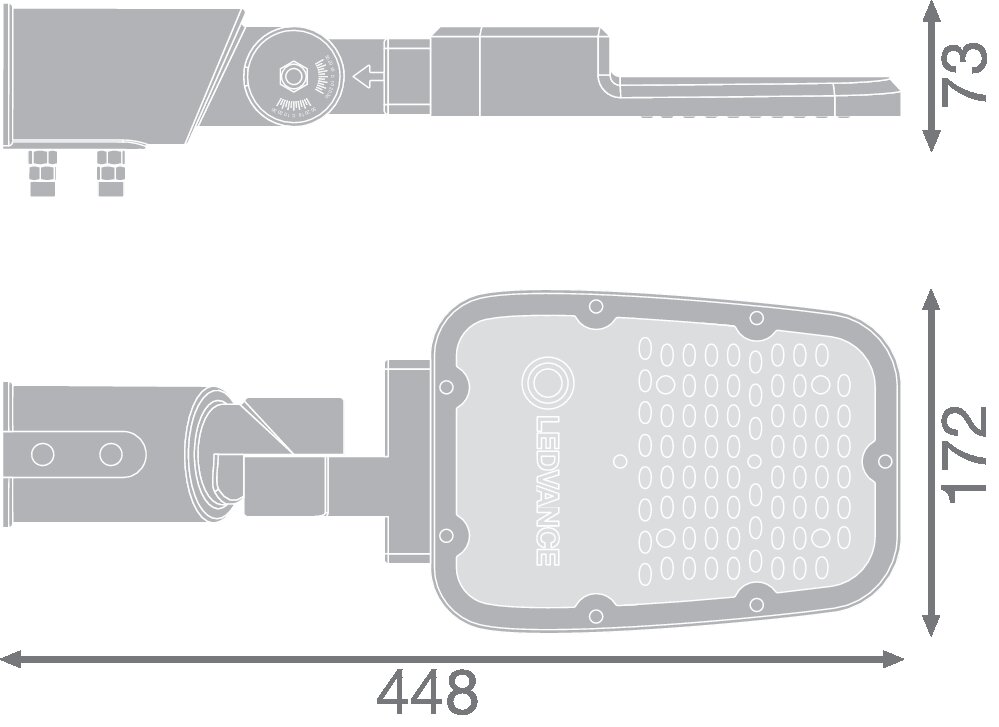

Width: 172 mm
Height/depth: 73 mm
Length: 448 mm
Type of wiring: Ending
Number of poles: 3
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Connection type: Other
Compatible with Amazon Alexa: no
IFTTT support available: yes
Lamp holder: None
Material cover: Plastic, opal
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: no
Colour of light: White
Power factor: 0,9
Max. number of luminaires per miniature circuit breaker B16 (MCB): 60
Max. number of luminaires per miniature circuit breaker C16 (MCB): 64
Operation by Bluetooth: no
With light sensor: no
