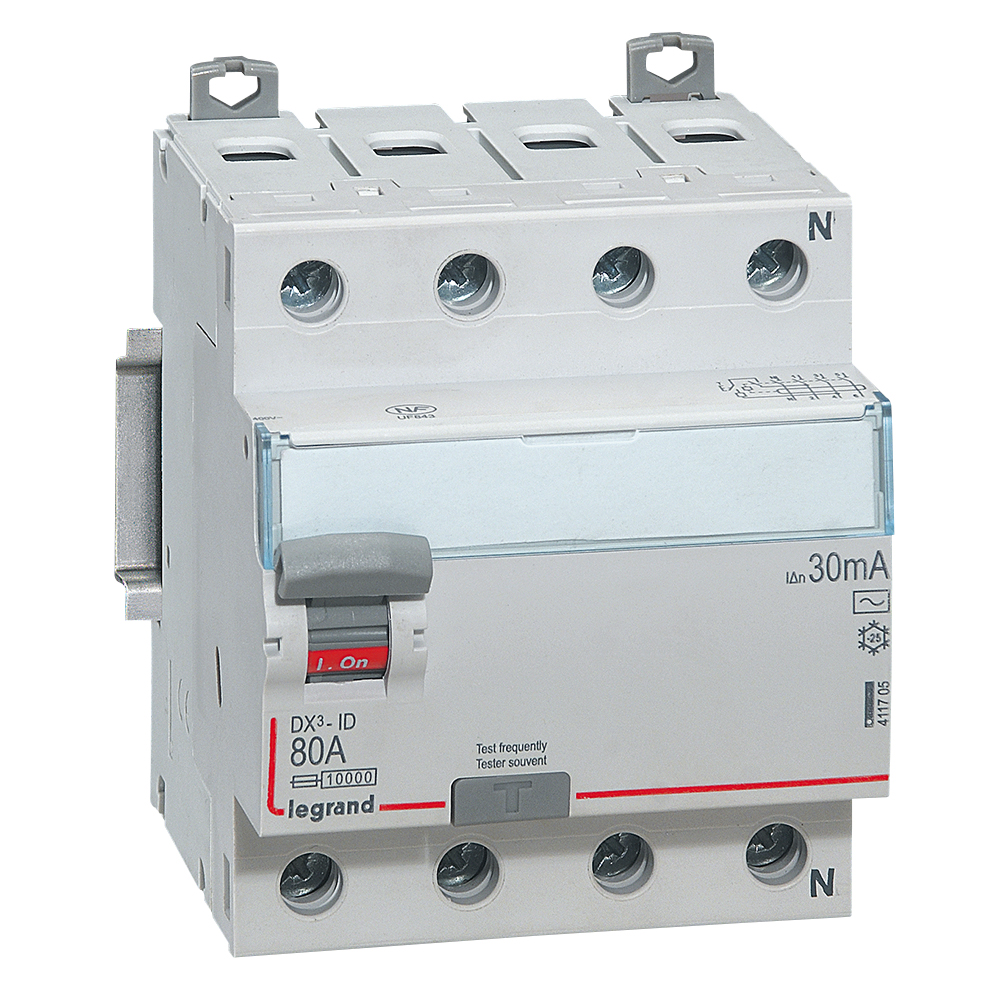

WYŁĄCZNIK RÓŻNICOWOPRĄDOWY P 304 4P 80A 30MA TYP AC SERII DX3, Legrand
| Information | Value |
|---|---|
| Catalog price | 923,26 zł (750,62 zł + 23% VAT) |
| Symbol | 411705 |
| GTIN(EAN) | 3245064117050 |
| Producer | Legrand Polska Sp. z o.o. |
| Price unit | piece |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Jesienna promocja z Legrand w Karel2
Kupuj produkty Legrand i odbieraj nagrody!
Promotion active until 12/31/2023
-
Promocja na produkty Legrand w Elgrze!
Kupuj Produkty Legrand i odbieraj bony SODEXO!
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Residual current circuit breaker (RCCB) |
| Selective protection: | no |
| Explosion-proof: | no |
| Connectable conductor cross section solid-core: | 0.75 - 50 mm² |
| Frequency: | 50 Hz |
| Short-circuit breaking capacity (Icw): | 10 kA |
| Ambient temperature during operating: | -25 - 60 °C |
| Pollution degree: | 2 |
| Leakage current type: | AC |
| Degree of protection (IP): | IP20 |
| Width in number of modular spacings: | 4 |
| Voltage type: | AC |
| Additional equipment possible: | yes |
| Mounting method: | DIN rail |
| Rated insulation voltage Ui: | 500 V |
| Surge current capacity: | 0.25 kA |
| With interlocking device: | yes |
| Connectable conductor cross section multi-wired: | 0.75 - 35 mm² |
| Number of poles: | 4 |
| Short-time delayed tripping: | no |
| Rated fault current: | 0.03 A |
| Rated current: | 80 A |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Built-in depth: | 44 mm |
| Rated voltage: | 400 V |
