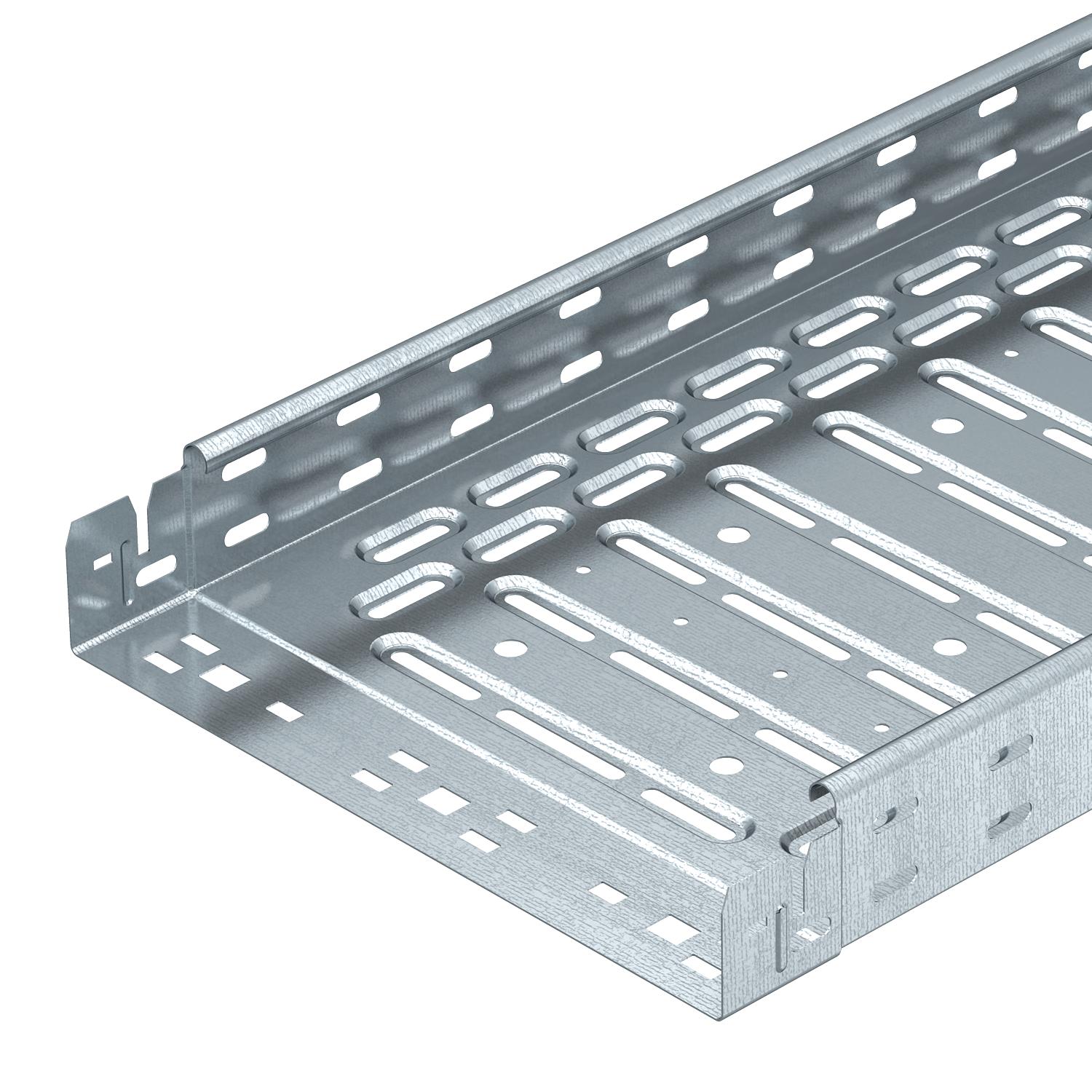

RKSM 620 FT Koryto kablowe RKSM 60/200/1,0 3M, ocynk ogniowo-zanurzeniowy
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 6047639 |
| GTIN(EAN) | 4012195903932 |
| Price unit | meter |
| Catalog price | 184,34 zł (149,87 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

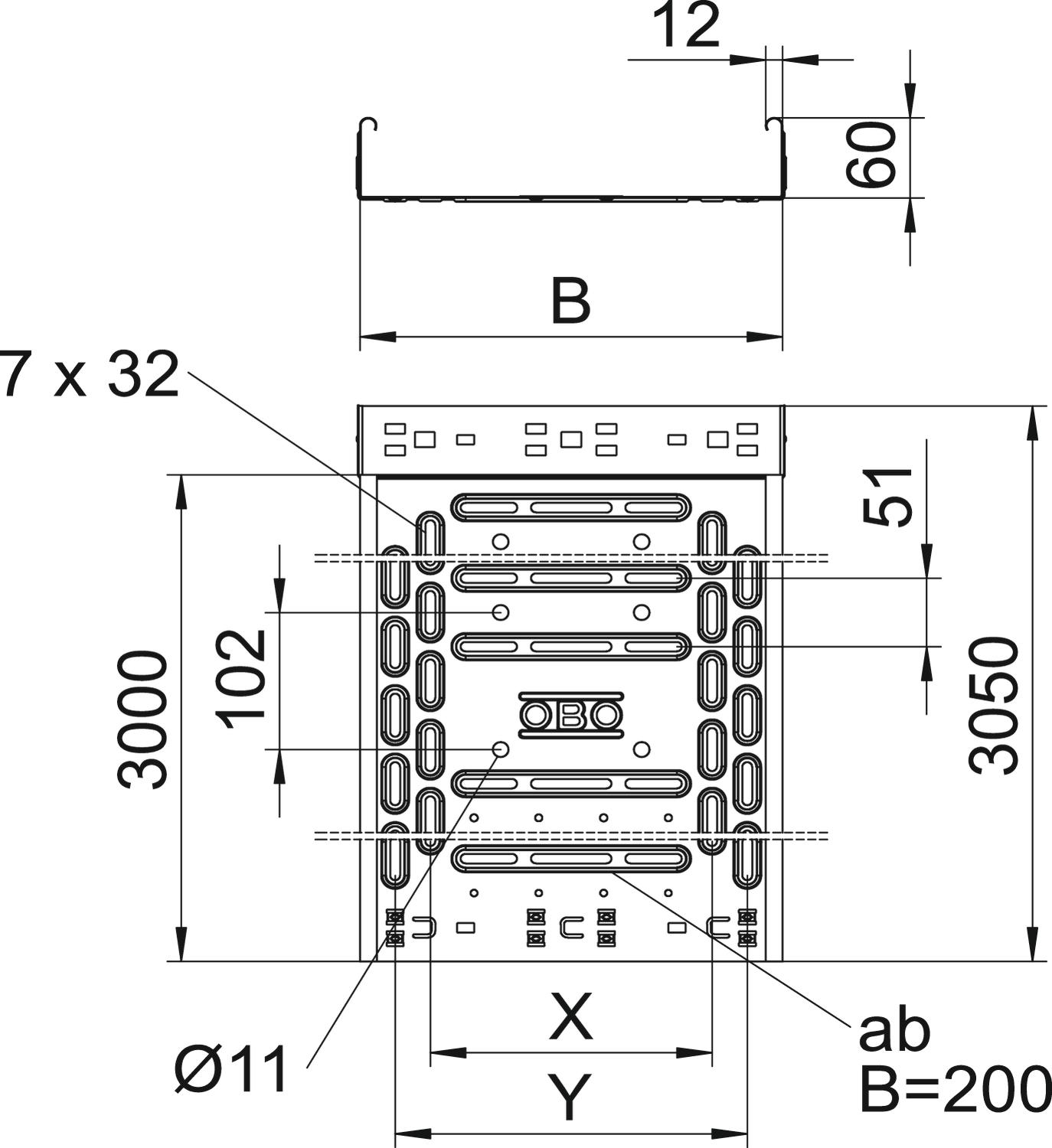

Koryto kablowe ze zintegrowanym systemem szybkiego mocowania. Długość użytkowa koryta kablowego wynosi 3000 mm.
Koryto posiada ciągłą perforację boczną 7 x 20 mm do montażu dodatkowych elementów przyłączeniowych i montażowych.
Perforacja do bezpośredniego zawieszenia pręta gwintowanego ma średnicę 11 mm.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Cable tray |
| Height: | 60 mm |
| Width: | 200 mm |
| Material thickness: | 1 mm |
| Length: | 3 050 mm |
| Useful cross section: | 11 800 mm² |
| With cover: | no |
| Side perforation: | yes |
| Bottom perforation: | yes |
| NATO-mounting holes: | no |
| Model: | Integrated connector |
| Suitable for circuit integrity: | yes |
| Material: | Steel |
| Surface protection: | Hot-dip galvanized |
| Weight: | 2,51 kg/m |
| Load test type according to IEC 61537: | Type II |
