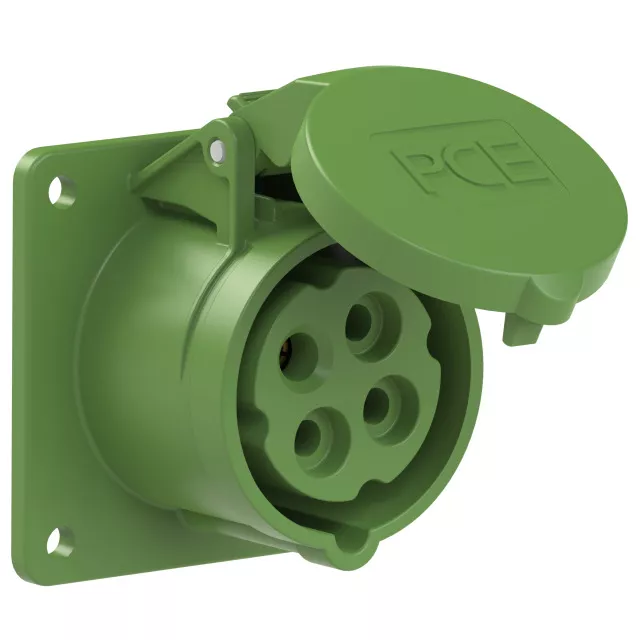

Gniazdo tablicowe proste 16A 3P+Z >50-500V 100-300Hz 10h IP44, kołnierz 75X75, rozstaw śrub 60X60
Information | Value |
---|---|
Supplier | PCE Polska Sp. z o.o. |
Symbol | 314-10f7 |
GTIN(EAN) | 9003399044137 |
Price unit | piece |
Catalog price | On demand |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 132 g |
ETIM class: | Panel-mounted CEE socket outlet (IEC 60309) |
IEC-amperage: | 16 A |
Voltage according to EN 60309-2: | 50-500 V (100-300 Hz) green |
Number of poles: | 4 |
Clock hour position: | 10 h |
Identification colour: | Green |
Degree of protection (IP): | IP44 |
Connection system: | Screwed terminal |
Insert direction: | Straight |
Material: | Plastic |
Contact material: | CuZn |
Surface treatment contacts: | Untreated |
Flange size vertical: | 75 mm |
Drill hole distance vertical: | 60 mm |
Flange size horizontal: | 75 mm |
Drill hole distance horizontal: | 60 mm |
