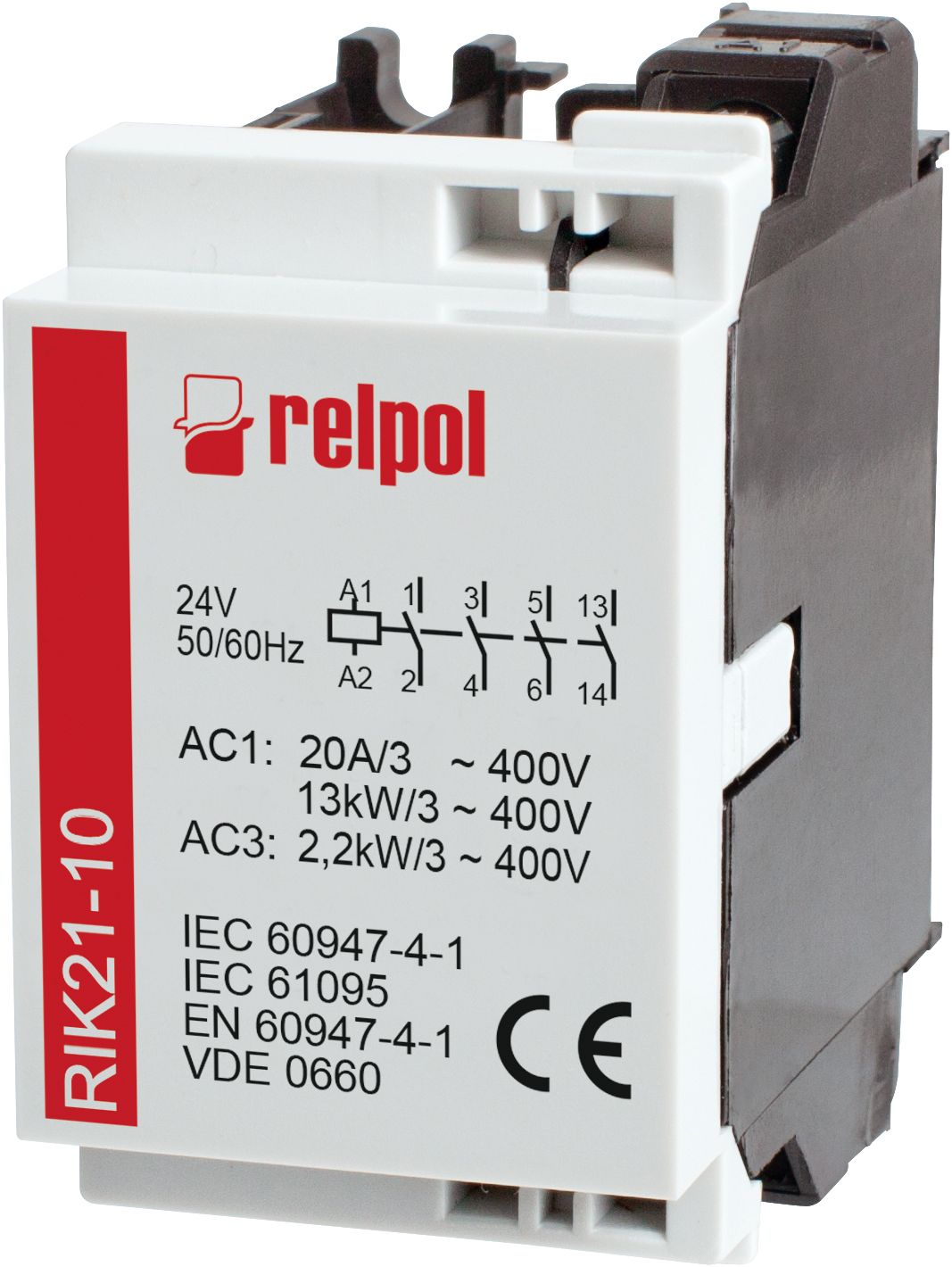

Stycznik instalacyjny RIK21-10-230
Information | Value |
---|---|
Supplier | RELPOL S.A. |
Symbol | 2608208 |
Price unit | piece |
Catalog price | 162,34 zł (131,98 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stycznik instalacyjny, 3-biegunowy, 3 N/O (1-2, 3-4, 5-6) + zestyk pomocniczy 1 N/O (13-14). Ui - 415 V. Ith - 20 A. AC1/AC7a - 7,5 kW / 230 V; 13 kW / 400 V. AC3/AC7b - 1,1 kW / 230 V; 2,2 kW / 400 V. Cewka 230 V AC - zaciski: A1 - A2. Wymiary: 62,5 x 35 x 57 mm. Montaż na szynie 35 mm. IP 20.
Additional features:
Information | Value |
---|---|
Net weight: | 170 g |
ETIM class: | Installation contactor for distribution board |
Rated operating voltage: | 400 - 400 V |
Rated operation current: | 5 A |
Rated excitation voltage: | 24 - 230 V |
Voltage type (operating voltage): | AC |
Voltage type (excitation voltage): | AC |
Number of contacts as normally open contact: | 3 |
Number of contacts as normally closed contact: | 0 |
Slider for hand switch: | no |
Width in number of modular spacings: | 2 |
Built-in depth: | 59.5 mm |
Degree of protection (IP): | IP20 |
